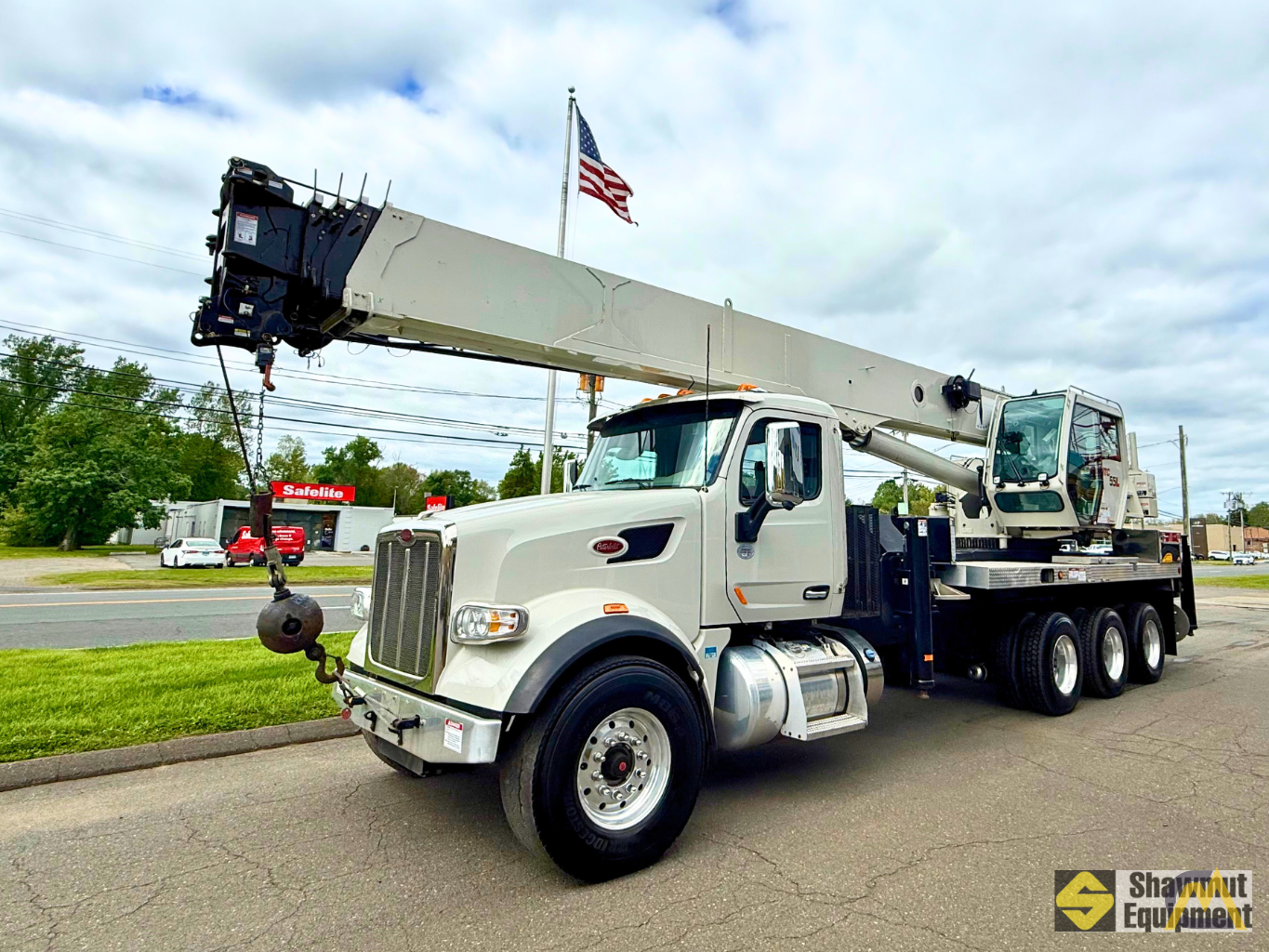

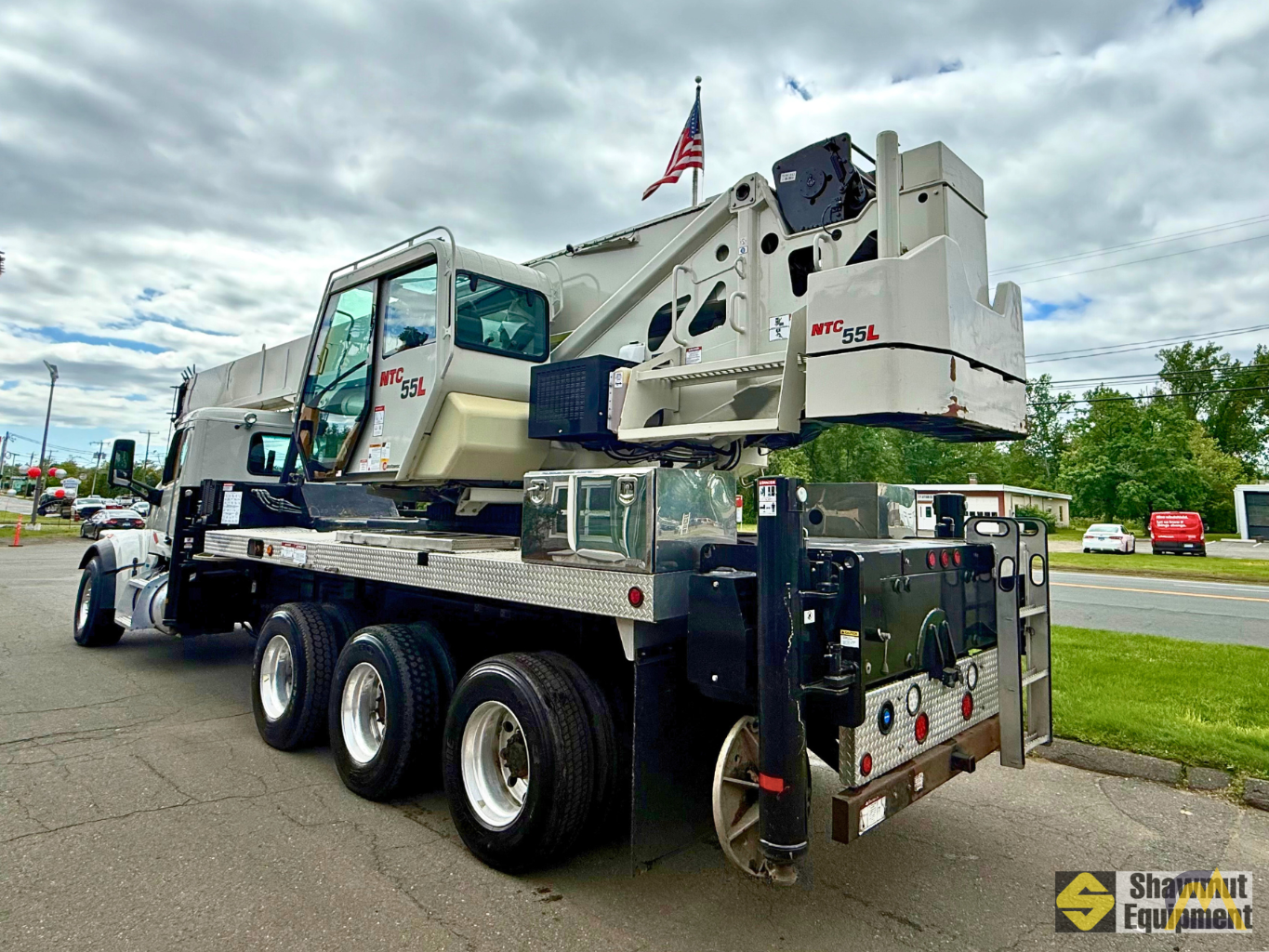

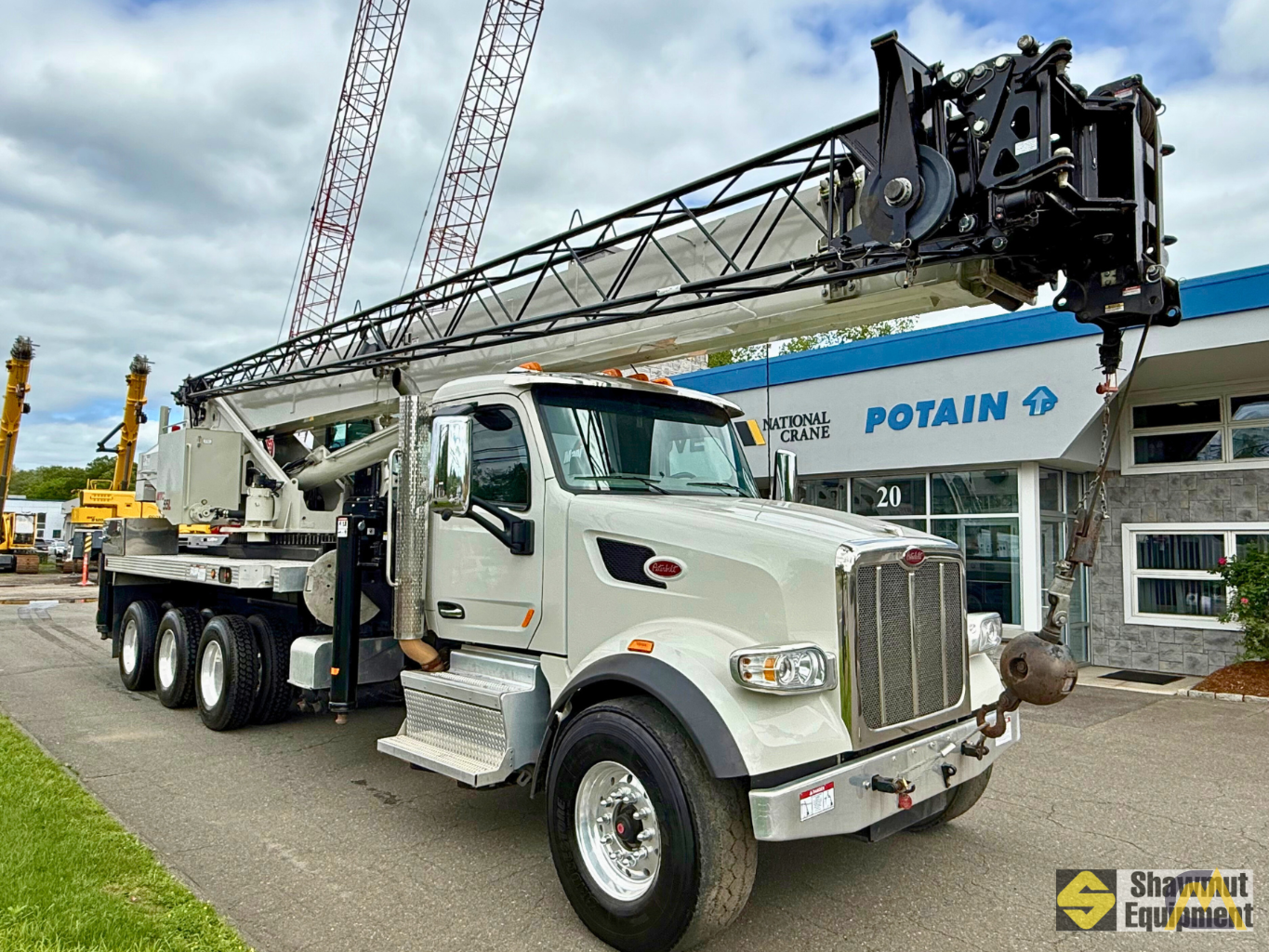

National NTC55L Boom Truck Crane on Peterbilt 567 For Sale
Location: Manchester, CT, USA Get a Shipping Quote Get Finance QuoteNational Crane Authorized Dealer
| Status | For Sale |
|---|---|
| Year | 2020 |
| Manufacturer | National Crane |
| Model | NTC55L |
| Condition | Used |
| Serial Number | 302279 |
| Ton (USt) | 55.00 |
| Lifting Capacity | 110,000 lbs. (49,895 Kg) |
| Main Boom Length | 36.8' - 151' (11.2 - 46 m) |
| Jib Extension Length | 26' - 45' (7.9 - 13.7 m) |
| Max. Tip Height | 203' (61.9 m) |
| Max. Hook Radius | 150' (45.7 m) |
| Category | Boom Trucks |
| Sub Category | Swing Seat |
| Show More | |
| Hide |
DESCRIPTION
CRANE SPECIFICATIONS:
- 36’ to 151' 5-Section Telescoping Full Power Main Boom
- Four (4) Sheave Quick Reeve Main Boom Nose
- 36’ Fixed Length Lattice Jib Offsettable at 0°, 15° & 30°
- Graphical RCL System w/ Work Area Definition System
- Internal Anti-Two Block Wiring
- All Steel Crane Cab Tiltable to 20 Degrees
- Deluxe Seat w/ Armrest Mounted Single-Axis Electronic Joystick Controls
- Hot Water Cab Heater w/ Defroster which is Diesel Fired
- Air Conditioning in Crane Cab
- Signal Horn and Engine Start / Stop Switch
- Fire Extinguisher
- Dual Cab Mounted Work Lights
- Two Camera System – Hoist and Passenger Side of Turntable
- Wireless Radio Remote to Control Main Winch Only
- 360 Degree Continuous Rotation w/ “Glide Swing”
- 6,000 lbs. (2 Piece) Hydraulically Removeable Counterweight
- Pressure Compensated Load Sense Hydraulic Pump
- 170 Gallon Hydraulic Reservoir
- Electronic Drum Rotation Indicator
- Drum Cable Follower
- 5/8” 35x7 Class Main Winch Wire Rope
- 4-Position Hydraulic Front and Rear Outriggers (0%, 50%, 75%, 100%)
- Outrigger Position Monitoring System & Motion Alarm
- Outrigger Controls in Crane Cab & Both Sides of Subframe
- 24” Diameter Aluminum Outrigger Pads
- Full Length Aluminum Decking
- Additional Fixed Position Ladder at Front Passenger Side of Decking
- Painted National Crane “Platinum” Gray
- 20 Ton “Quick Reeve” Single Sheave Hook Block
- 7 Ton Round Headache Ball
TRUCK SPECIFICATIONS:
- 2021 Peterbilt model 567
- Cummins ISX15 525 h.p. Diesel Engine
- 20,000 lb. PACCAR Steer Axle
- 66,000 lb. Air Trac Tri-Drive Rear Suspension
- Navigation (Smart Nav)
- Back Up Camera System
- Allison 4500RDS Automatic Transmission
- Aluminum Wheels
- Approximate Crane Hours: 4,370 hrs (11/27/2024)
- Approximate Engine Hours: 6,439 hrs (11/27/2024)
- Approximate Miles: 50,940 (11/27/2024)
$535,000 USD
$585,000 USD
