National 890D 23-Ton Un-Mounted Boom Truck Crane For Sale
Location: Saint Augustine, FL, USANational Crane Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
| Status | For Sale |
|---|---|
| Year | 2020 |
| Manufacturer | National Crane |
| Model | 890D |
| Condition | New |
| Ton (USt) | 23.00 |
| Main Boom Length | 27' - 90' |
| Jib Extension Length | 25' - 44' |
| Base Weight (GVW) | 60,000 lbs. |
| Transmission Type | Manual |
| Engine | CAT C7 Diesel |
| Horse Power/kW | 300 |
| Category | Boom Trucks |
| Sub Category | Stand Up |
| Show More | |
| Hide |
DESCRIPTION
NATIONAL 890D−800D SERIES CRANES
The 800D delivers 20,87 t (23 USt) maximum capacity, 46,32 m (152 ft) maximum vertical reach and a 33,22 m (109 ft) maximum vertical hydraulic reach with main boom.
FEATURES

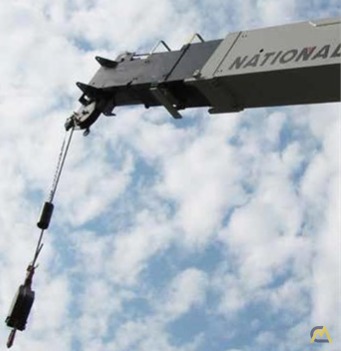

BOOM TIP
The speedy-reeve boom tip and sheave blocks simplify rigging changes. Load line wedge socket removal is not required for reeving of multi-part line options.
FOUR-SECTION BOOM
At 30,48 m (100 ft) the 800D boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency.
OVERLOAD PROTECTION
All National Crane boom trucks are equipped with overload protection. A Rated Capacity Limiter (RCL) is required on all machines equipped with jibs or personnel baskets.

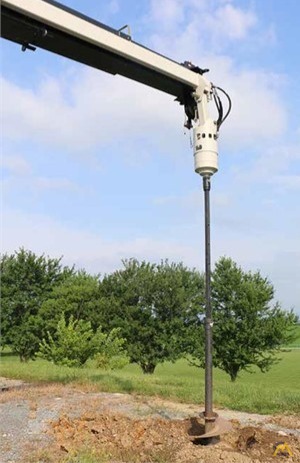

OPTIONAL AUGER ATTACHMENT
Available on the 890D only, the 14,000 ft/lb two-speed auger attachment has a maximum digging radius of 39 ft.
COLOR GRAPHICAL RCL SYSTEM
Easy to setup and operate color graphical RCL system with enhanced userability and jog dial menu selection. It also includes enhanced troubleshooting features for ease in serviceability, work area definition system and on-board outrigger monitor system.
OPTIONS AND LIFT SOLUTIONS
• Hydraulic hose reels
• Hydraulic tilting pole grab
• Factory installed tool box options
• Bulkhead and flat-bed options
• One-option hydraulic tool circuit
JOBSITE BENEFITS
• The stronger standard torsion box improves rigidity, reduces truck frame flex and reduces the need for counterweight.
• Painting crane components before assembly reduces the possibility of rust, improves serviceability and enhances the appearance of the machine.
• State of the art control valve provides smoother operation. This design eliminates parts, reducing repair costs and improving the machines serviceability.
• Sheave bearings on the boom and retract cables can be greased through access holes in the boom side plates and the number of internal boom parts has been reduced to improve serviceability.
• Burst of Speed winch provides faster winch payout and pickup of unloaded cable.
• Adjustable swing speed is standard on the 800D. A control knob located on the swing motor brake release valve can be easily adjusted to the crane operator’s swing speed preference.
• Internal anti-two block wire comes standard. It routes the wire through the inside of the boom eliminating the possibility of snagging the wire on obstructions.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
