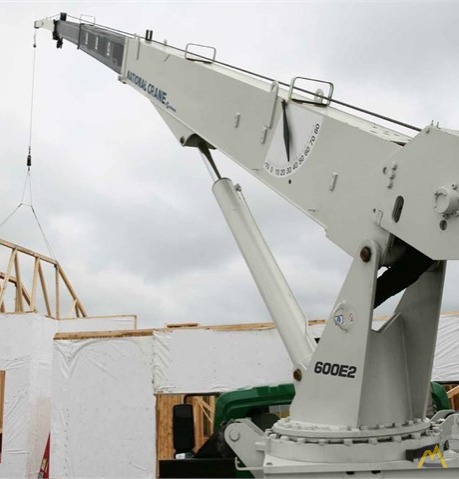

National 649E2 18-Ton Un-Mounted Boom Truck Crane For Sale

NATIONAL CRANE — 649E2

Series 600E2

FEATURES:

BEST IN CLASS PERFORMANCE AND SERVICEABILITY
• The steel torsion box and flatbed further reduce frame flex
• Speedy-reeve boom tip and sheave blocks simplify rigging changes by decreasing the time needed to change line reeving
• Crane components painted before assembly reduce the chance of rust, improve serviceability and enhance the appearance of the crane
• A control knob located on the swing motor brake release valve can be easily adjusted to the crane operator’s swing speed preference
• Engine start/stop switches
• Emergency stop overrides located at control station
• Hydraulic reservoir capacity of 66 gal

SERVICEABILITY
• Bearings on the boom and retract cables can be greased through access holes in the boom side plates.
• Removable winch allows the internal telescoping cylinder to be removed quickly, without dismantling the boom
• Internal anti-two-block wire routing eliminates external reel and wire to protect crane components
• The boom sheave case is open, allowing access to replace the internal anti-two-block wire and to observe internal boom components
• Internal boom parts have been reduced, decreasing service time when rebuilding the machine

NATIONAL CRANE 600E2 SERIES
• 16,3 t (18 USt) maximum capacity
• 36,9 m (121 ft) maximum vertical reach
• 24,7 m (81 ft) maximum vertical hydraulic reach

FOUR-SECTION BOOM
At 90 ft, the Series 600E2 four-section boom is the longest in its size range. The long boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency.

EASY GLIDE BOOM WEAR PADS
Easy Glide boom wear pads reduce the conditions that cause boom chatter and vibration. The net result is smoother crane operation.

OUTRIGGERS
The Series 600E2 comes equipped with A-frame outriggers and ASH rear stabilizers. An optional single front stabilizer is available for 360° stability. Rear stabilizers include an independent stabilizer control and bolt/clamp-on mounting. Outriggers are equipped with a motion alarm and an outrigger monitoring system.
• Front: 6,73 m (22.08 ft) span
• Rear: 3 m (10 ft) span

Weight includes all items except Ash 363 kg (830 lb) and bed.

ACCESSORIES
• Radio Remote Controls – Eliminate the handling and maintenance concerns that accompany cabled remotes. Operate to a range of about 76 m (250 ft), varying with conditions.
• Heavy-duty Personnel Basket – 1200 lb (544 kg) capacity steel basket with safety loops for two passengers. Gravity leveling 183 cm x 107 cm (72 in x 42 in) platform. Fast attachment and secure locking systems. Load chart must show 1043 kg (2300 lb) minimum to (provides rotation) operate this accessory.
• Duty Cycle Package – Burst-of-Speed winch control option, with dual stand up control and hydraulic oil cooler, self-contained radiator system with electric fan.
• Continuous Rotation– Allows rotation of turret/boom without rotation stop.
• Single Front Outrigger – Center mount front stabilizer for 360˚ stability with a 25 in vertical stroke.
• Bulkhead Options – Steel 30 in solid wall bulkhead

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
