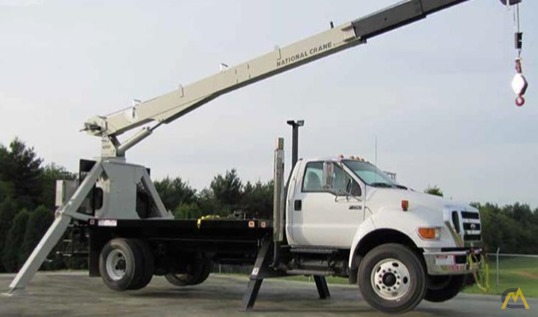

National 446B 10-Ton Un-Mounted Boom Truck Crane For Sale
Location: Saint Augustine, FL, USANational Crane Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION
NATIONAL CRANE — 446B
NATIONAL CRANE 400B
The 400B Series delivers 9,07 t (10 USt) maximum capacity and a 19,8 m (65 ft) maximum vertical hydraulic reach with main boom.
FEATURES:
MAIN BOOM
With multiple boom length options including the class leading 17,07m (56 ft) boom length, the 400B has the strength and capacity you need to tackle the toughest jobs, while in a compact crane.
MULTIPLE MOUNTING CONFIGURATIONS
The 400B offers tremendous flexibility in mounting configurations to tailor to specific applications. Standard mount (crane frame located behind truck cab), Rear Mount (crane frame located at the rear of the truck frame), and Tractor Mount (crane frame located at the center of a short wheelbase truck frame equipped with a fifth wheel) are all available. This allows optimization of the crane to better suit the needs of the job - whether hauling construction materials on the flatbed, delivering and placing pre-cast concrete components, or hauling a flatbed trailer.
DUAL SIDE CONTROL STATION
Traditional mechanical control levers and layout with an operator station located on both sides of the crane. Smooth operating hydraulic control system allows for optimum multi-functioning for all crane functions as well as outrigger control. Automotive switches and wiring allows for reliable performance and control. Electronic engine start/stop switches with foot pedal throttle control at each side. The integrated Hydraulic Capacity Alert (HCA) system provides real-time feedback to the operator about capacity, and anti-two-block (ATB) status via gauges and indicator lights located at each control station.
OUTRIGGERS
Multiple outrigger configurations available for each mounting configurations to best handle the job at hand. From standard “A-frame” style outriggers, to over-frame mounted “out and down” style, flexibility is designed in. Outriggers are equipped with fixed floats and a level indicator (sight bubble) is located at the operator stations.
OPTIONS AND LIFT SOLUTIONS
• Hydraulic hose reels
• Factory installed tool box options
• Bulkhead and flat-bed options
• One-option hydraulic tool circuit
JOBSITE BENEFITS
• Boost productivity with the compact, simple to operate and versatile 400B
• Class-leading tip height when equipped with the 17,07 m (56 ft) three-section boom
• Utilization enhancing options such as a personnel platform, wireless radio remotes or hydraulic tool circuits for optimum versatility.
• Internal anti-two-block wire routing eliminates potential for damage
• Pre-painted components reduce the possibility of rust, improve serviceability and enhance the appearance of the machine
*Weights do not include sub-base, rear stabilizers, PTO, pump, boom rests or options
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
