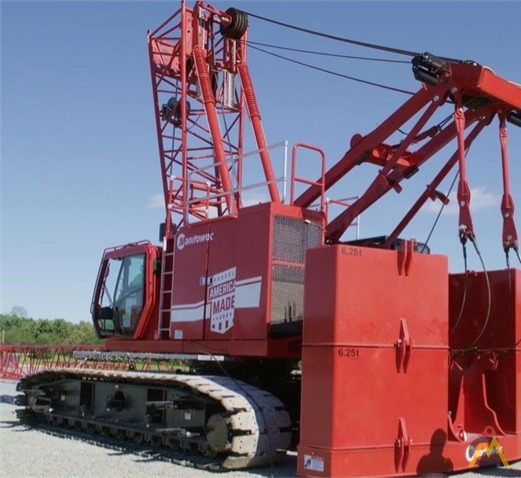

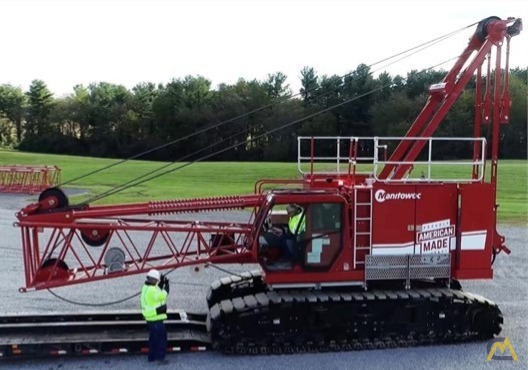

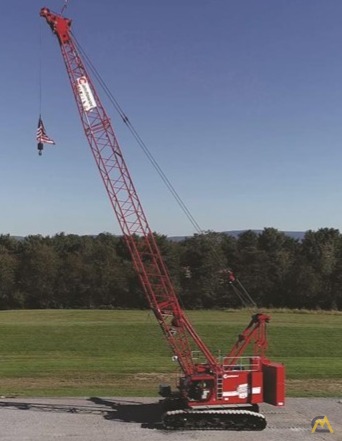

Manitowoc MLC80A-1 80-Ton Lattice Boom Crawler Crane For Sale
Location: Saint Augustine, FL, USAManitowoc Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
| Status | For Sale |
|---|---|
| Year | 2020 |
| Manufacturer | Manitowoc |
| Model | MLC80A-1 |
| Condition | New |
| Ton (USt) | 80.00 |
| Lifting Capacity | 160,000 lbs. (72,600 kg) |
| Main Boom Length | 200' (60.9 m) |
| Maximum Counterweight | 96,170 lbs. (43,622 kg) |
| Base Weight (GVW) | 91,500 lbs. (41,503 kg) |
| Engine | Cummins QSB6.7 |
| Category | Crawler Cranes |
| Sub Category | Lattice Boom |
| Show More | |
| Hide |
DESCRIPTION
SOLD Manitowoc MLC80A-1 LATTICE BOOM CRAWLER Crane
The MLC80A-1 provides a broad range of features that will undoubtedly be translated into Jobsite benefits that increase productivity and save money.
Features
• 80 USt capacity
• 2672 ft-kips maximum load moment
• 200 ft main boom (optional)
• Max boom + fixed jib combination: 180 ft + 60 ft (optional)
• Cummins 300 hp Tier 4 Final engine
New Cab Design
• 10% more legroom for the operator
• Full high back seat with headrest and moveable riser supports operator comfortably
• Utilizes Crane Control System (CCS)
• Storage shelving located in the rear of the cab
• Redesigned consoles providing more legroom
• Left side console rotates for improved egress
• Six-way electric seat riser/slider
Efficient Self-Assembly
• Gantry raised counterweight reduces components and maintenance
• Boom butt mounted sheaves allow for reeving assembly hook without installing boom top
• Additional boom butt mounted sheave allows for carbody counterweight installation without outside assist
• Button style wire rope terminations for easy reeving
Transport and Assembly
• Designed to be transported with minimal permitted loads
• Increased hook height allows for complete self-assembly with various trailer heights
• Self Assembly sheaves in boom butt allow self-assembly without installation of boom top saving time during the assembly process
Serviceability and support
• Elimination of wireless components to reduce complexity for increased reliability
• Cummins engine, cooler, air cleaner and after-treatment package allows for better serviceability
• Crane Control System (CCS) allows for troubleshooting through the control system
• Codes can be cross-referenced through the Manitowoc diagnostics code app
• Supported by Manitowoc’s world-class dealer network
