Manitex TM200 20-Ton Boom Truck Crane on Peterbilt 567 For Sale

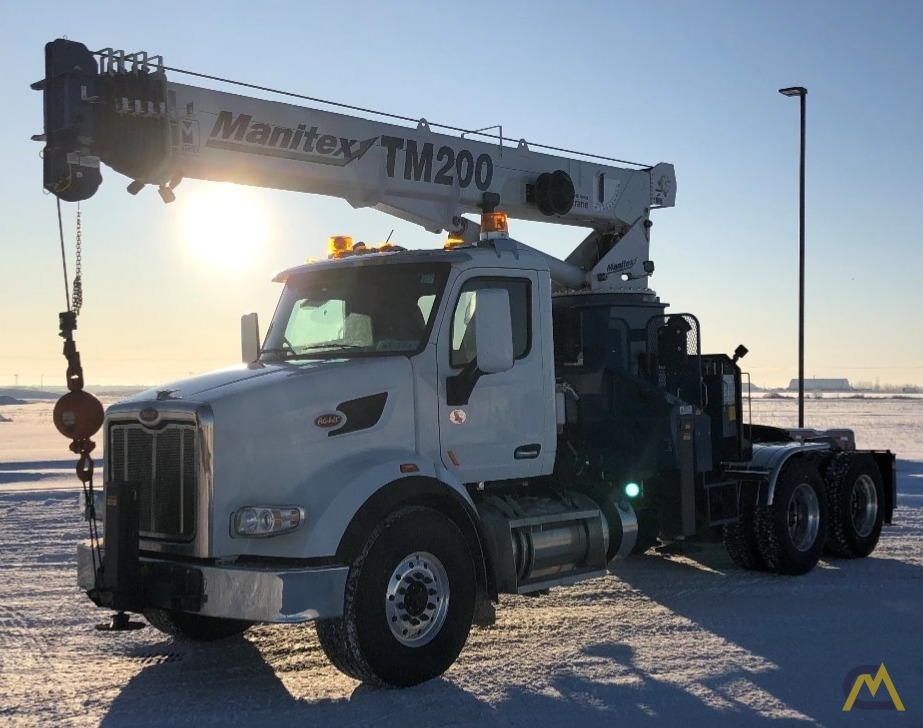

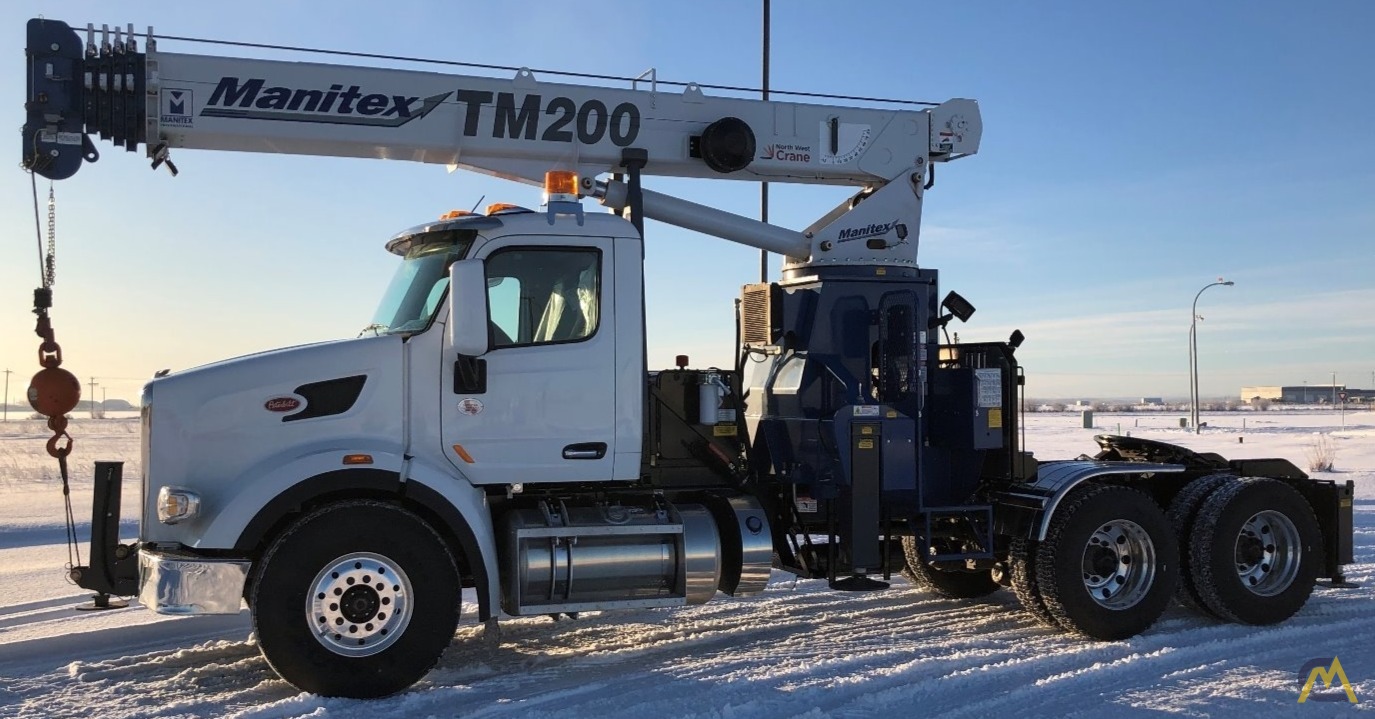

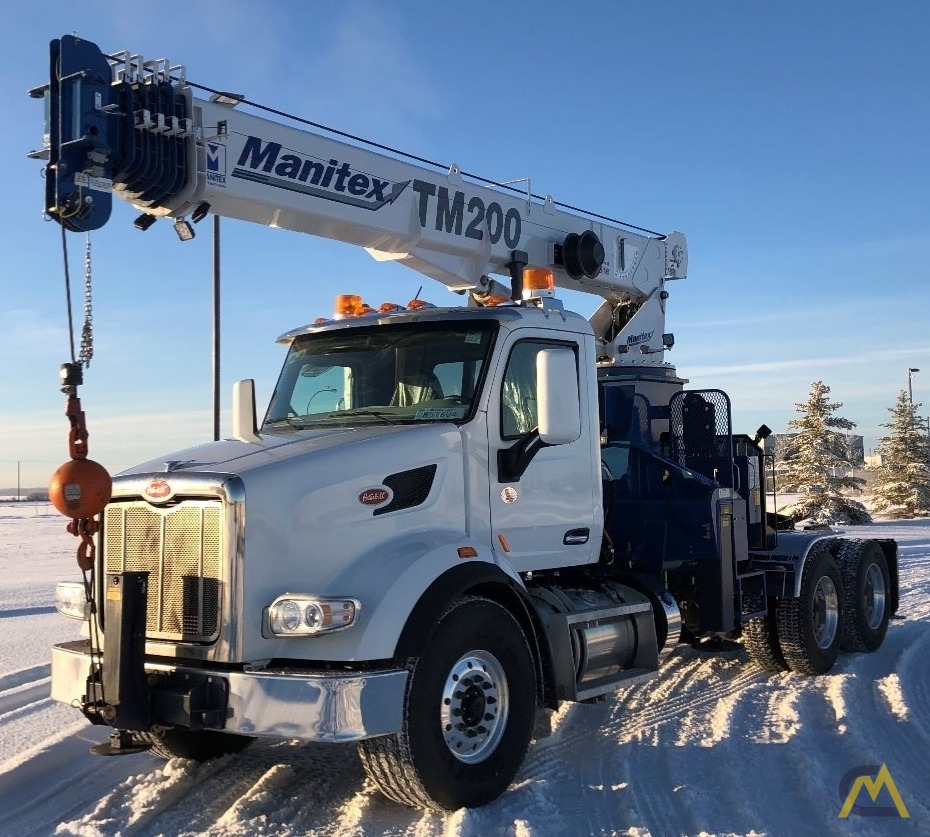

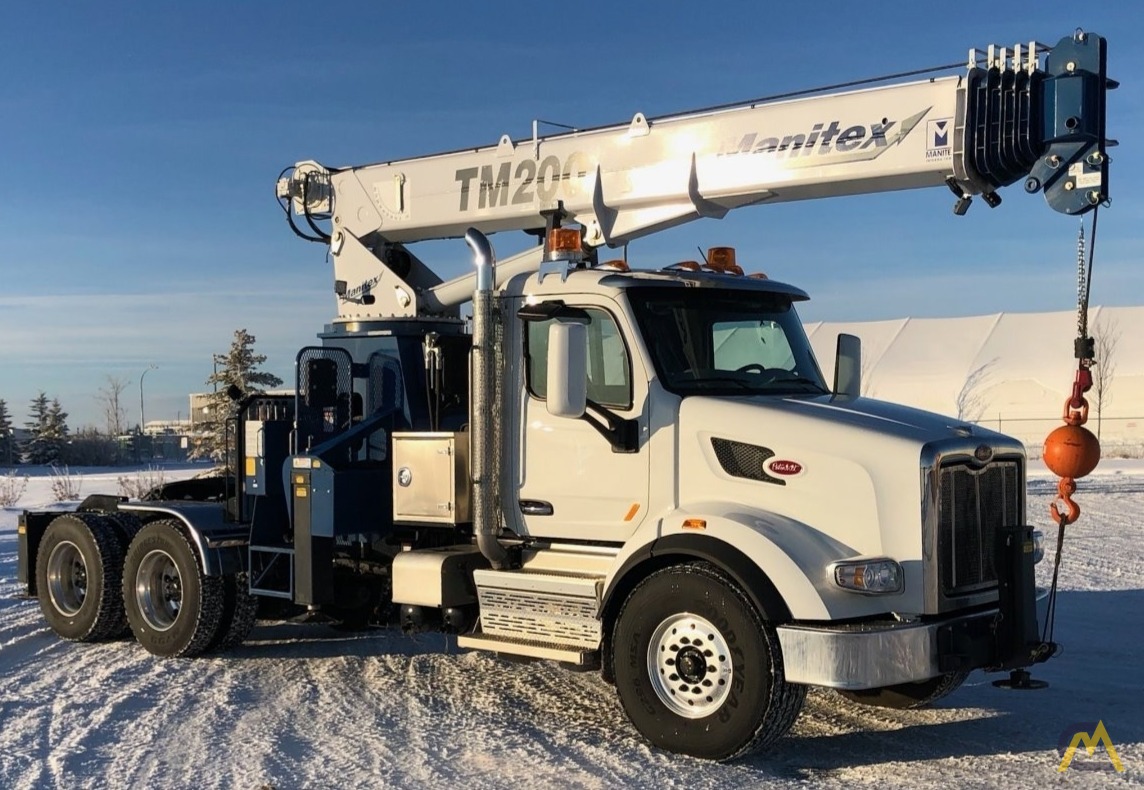

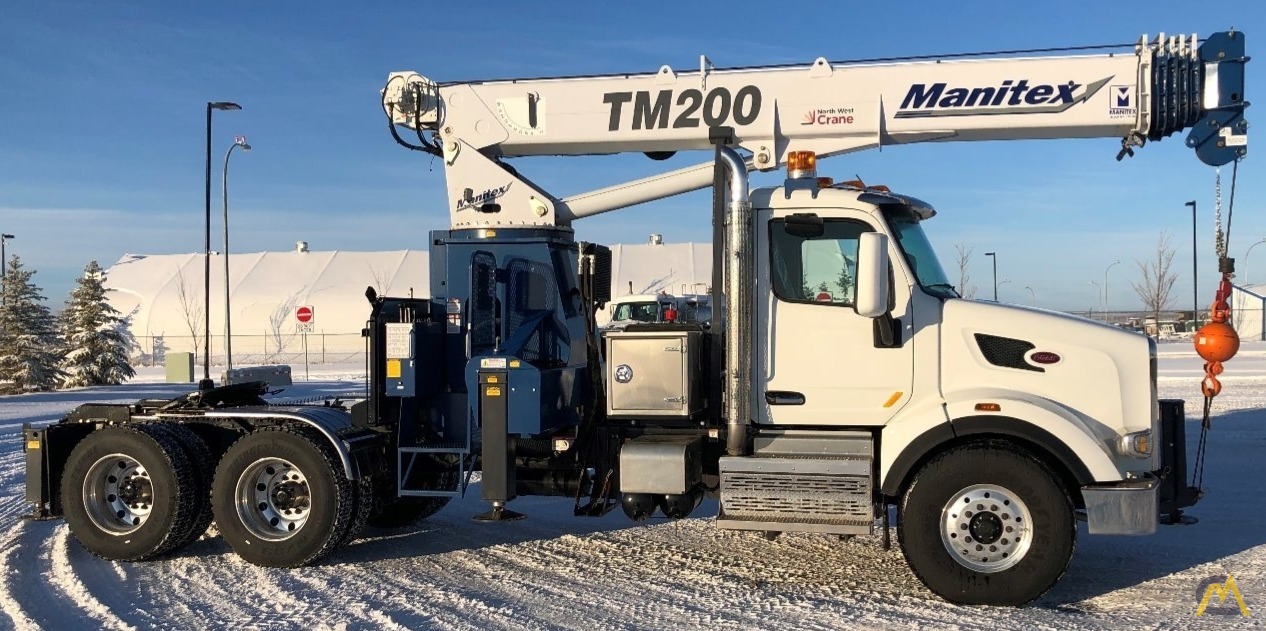

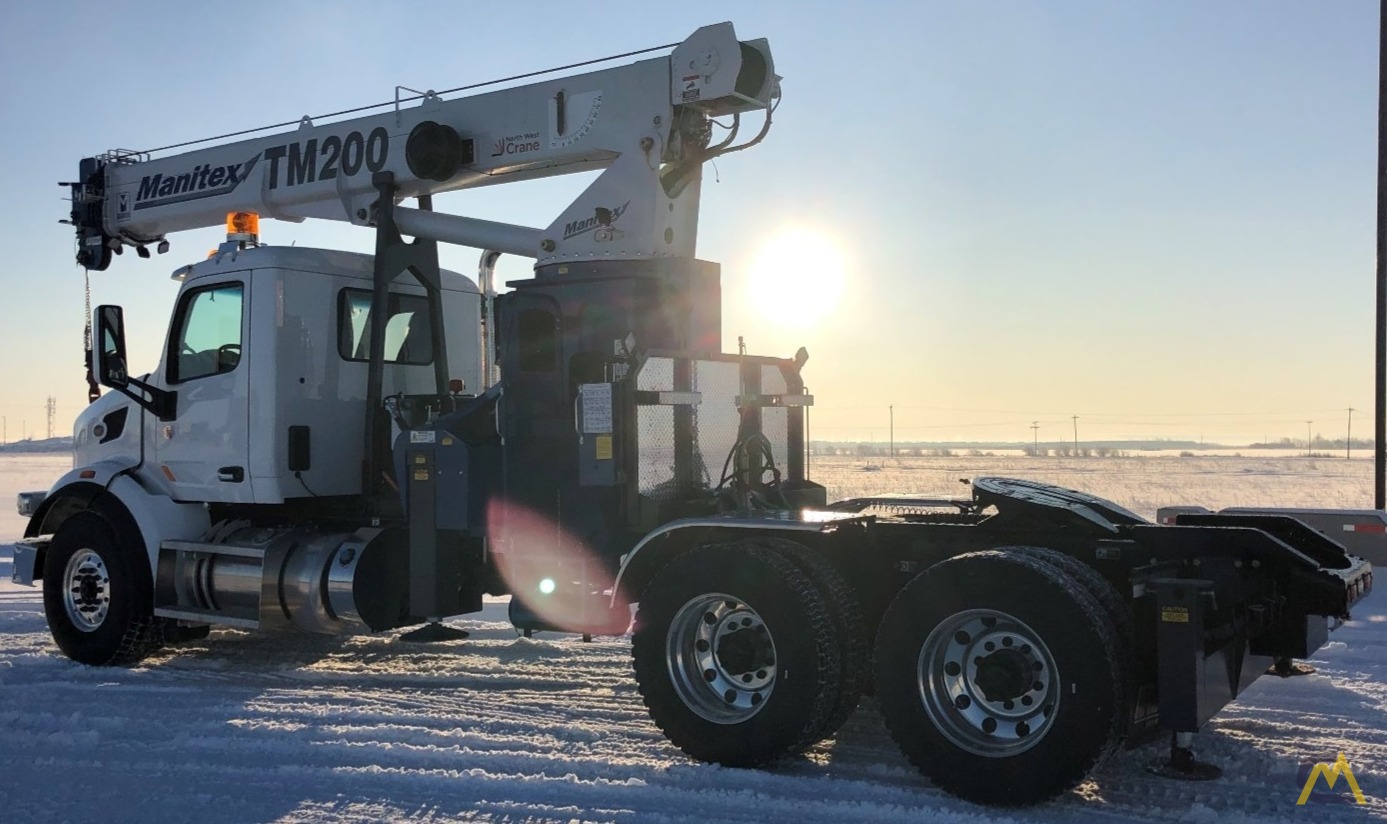

SOLD NEW unit 177 2019 Manitex 2085T (TM200) mounted on a Peterbilt 567 tandem tractor.

This compact picker standard out & down main outriggers & H-style rear stabilizers.  The crane includes a front bumper stabilizer giving the 360-degree chart.  The LMI is wired externally to the tip switch.

The Manitex TM200 is the best in its class due to the combination of tonnage, boom length/design & overall length for transporting down the road.  The 85ft, 6-section formed boom, (over the traditional rectangular booms) is only 18ft 11in when retracted, making it the shortest stowed boom in its class, giving you possibly the shortest overall length with your trailer and maximize payload.

The Peterbilt is nicely equipped with a 510hp Paccar engine and an 18spd Fuller transmission.  It has all the right accessories to be both functional and to keep your operator happy.

The rig up is light weight, simple and very practical for many applications.

New Manitex TM200 (2085T) stiff boom crane complete w/ the following:

• Maximum Lifting Capacity of 40,000 Pounds at 5’ Radius
• Six-Section Telescopic Formed Boom (18’11” to 85’)
• Maximum Sheave Height of  95’
• Two-Load Sheave Quick Reeve Boom Head w/ 1-Upper Idler Sheave
• Two-Speed Planetary Hoist w/ Grooved Drum
• 7 Ton Hook & Ball
• 15 Ton Single Sheave Quick Reeve Block
• Hardwired Anti-Two Block Warning w/ Lockout
• System Pressure Gauge
• Engine Start/Stop
• Bubble Levels
• Signal Horn
• Boom Length & Angle Indicators
• Operator Service & Parts Manuals
• Dual Operator Control Stations
• 372 Degrees Non-Continuous Rotation
• Audible Outrigger / Stabilizer Motion Alarm
• Three-Section Hydraulic Pump
• 300’ of  9/16” Rotation Resistant Wire Rope
• Electric Foot Throttle
• Load Moment Indicator w/ Operator Display
(Includes audio & visual capacity alert w/ shut off)
• Out & Down Type Front Outriggers w/ 19.66’ Spread

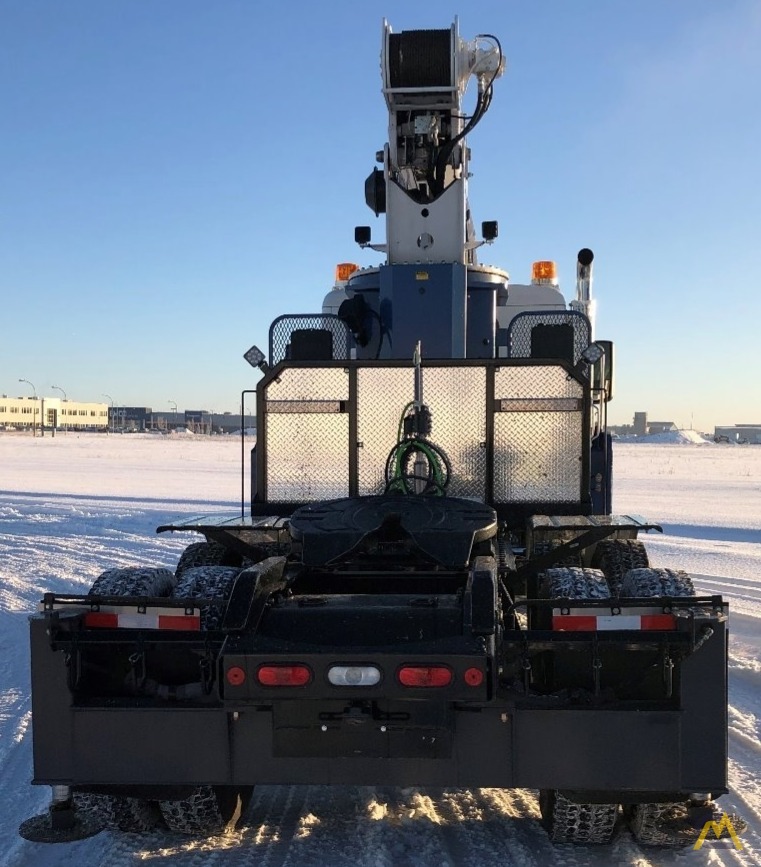

• H Style (straight down) Rear Stabilizers w/ 7.42’ Spread
• Front Bumper Stabilizer (for 360 chart)
• Tractor Sub-frame
• 70 Gallon Hydraulic Reservoir w/ Suction Strainer & Ball Valve
• Removable Boom Rest
• Finish Painted Manitex Blue/White Combination
• Unit Completely Installed Including Hydraulic Oil & Testing

New 2019 Peterbilt 567 single steer/tan-drive chassis complete w/ the following:

• Engine PACCAR MX-13 510HP @1600 Gov@2200 1850@1000
• Paccar 160 Amp Alternator
• Eaton RTLO18918B 18 Speed Transmission
• Power Steering Sheppard HD94 Dual
• (1) Air Cleaner Firewall MTD
• RH Single Exhaust Stack to SCR/DPF under cab w/step
• Bendix Air Brake Package
• Meritor MFS20 20,000 lb. Capacity Front Axle
• Taper Leaf Springs, Shocks 20,000 lb.
• Meritor RT46-160 Tan-Drive 46,000 lb. Capacity Rear Axle
• Diff Lock Tan-Drive Axles
• Air Trac Tan-Drive, 46,000 lb. (54” Axle Spacing)
• 3.91 Rear Axle Ratio
• 11 5/8” Steel Rails with Full Steel Inner Liner
• Holland 24” Slide FW35 5th Wheel
• Good Year G296 445/65R22.5 20 Ply Front Tires
• Alcoa 22.5” by 13” Aluminum Front Wheels
• Bridgestone M799 11R24.5 16 Ply Rear Tires
• Alcoa 24.5” by 8.25” Aluminum Rear Wheels
• 26” Aluminum 110 Gal Fuel Tank LH BOC
• Aluminum Space Saver Battery Box (Pass Side BOC)
• 115” BBC Aluminum Cab & Metton Hood SBFA
• Peterbilt ST Driver Seat (Air Ride)
• Peterbilt ST (Non-Adjustable) Passenger Seat (Non-Air Ride)
• Prestige Interior – Sterling Gray
• 1-Piece Curved Windshield
• Power Door Locks & Power Window Lifts.
• Combo Fresh Air Heater/Air Conditioner
• Concert Class AM/FM, WB, USD, MP3 & Bluetooth Phone
• Stationary Grille
• (2) Strobe Lights (Roof Mounted)
• Exterior Color White : L0006EY

New Rig Up complete w/ the following:

• Rear 5th wheel ramps
• Aluminum Fenders
• Tire Chains
• LED Boom Work Lights
• Aluminum Tool Box

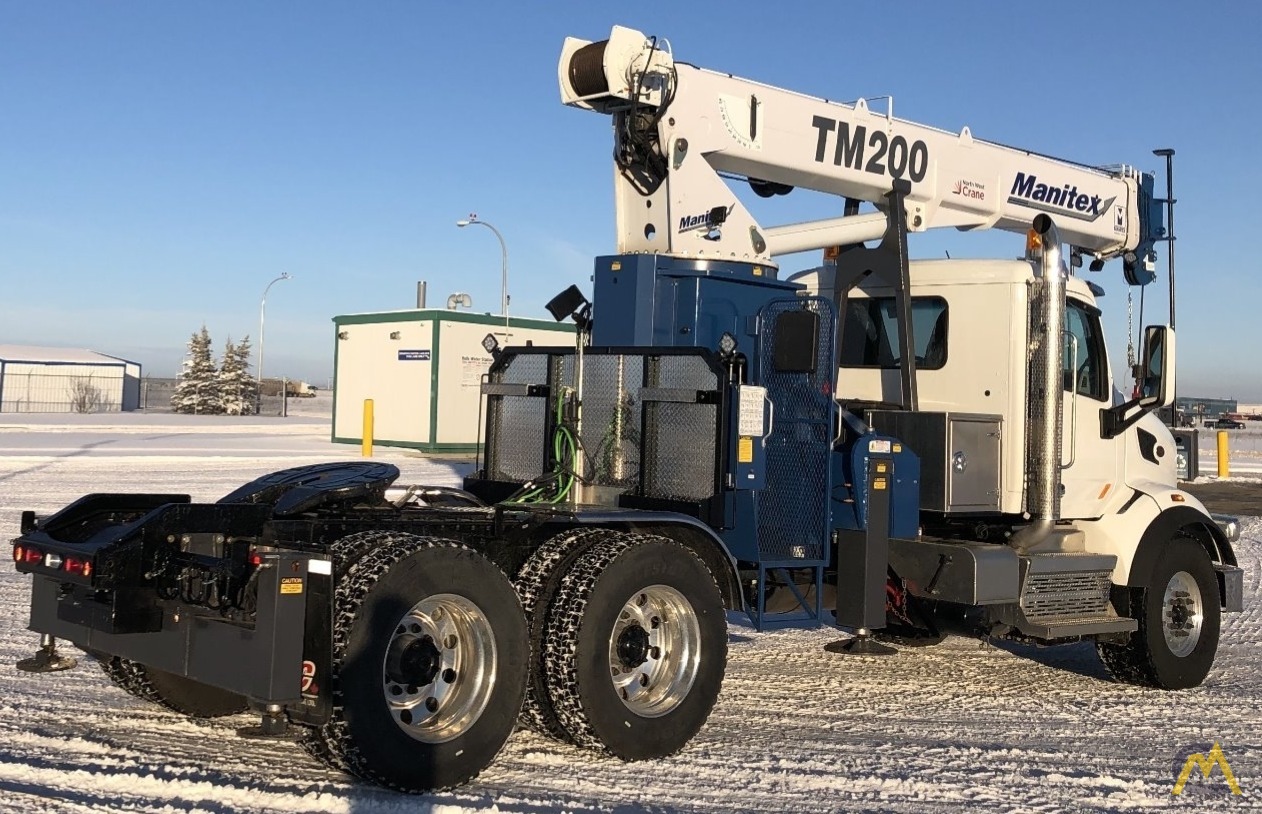

• Headache rack behind the picker with lockable covers and chain tray
