Manitex TC40142 40-Ton Boom Truck Crane For SaleLocation: Houston, TX, USA Get a Shipping Quote
40 Ton Capacity
5-Section 142’ (43,3 m)
2-Section 31’ (9,4 m) to 55’ (16,8 m) Telescopic Jib
204’ (62,1 m) Maximum tip Height with Telescope Jib 152’ (46,3 m) Maximum Main Boom Tip Height
Self-Lubricating Boom Slider Pads
Wired Anti-Two Block System – Audible warning and shutoff functions prevent hook form contacting boom point. Switch is potted to ensure reliability.
wo Speed Planetary Grooved Drum Hoist With Negative Draft Flange and Rope Tensioner
Auxiliary Hoist Option
Hoist Drum Rotation Indicator
Third Wrap Limiter under the Hoist Drum Rotation Indictor

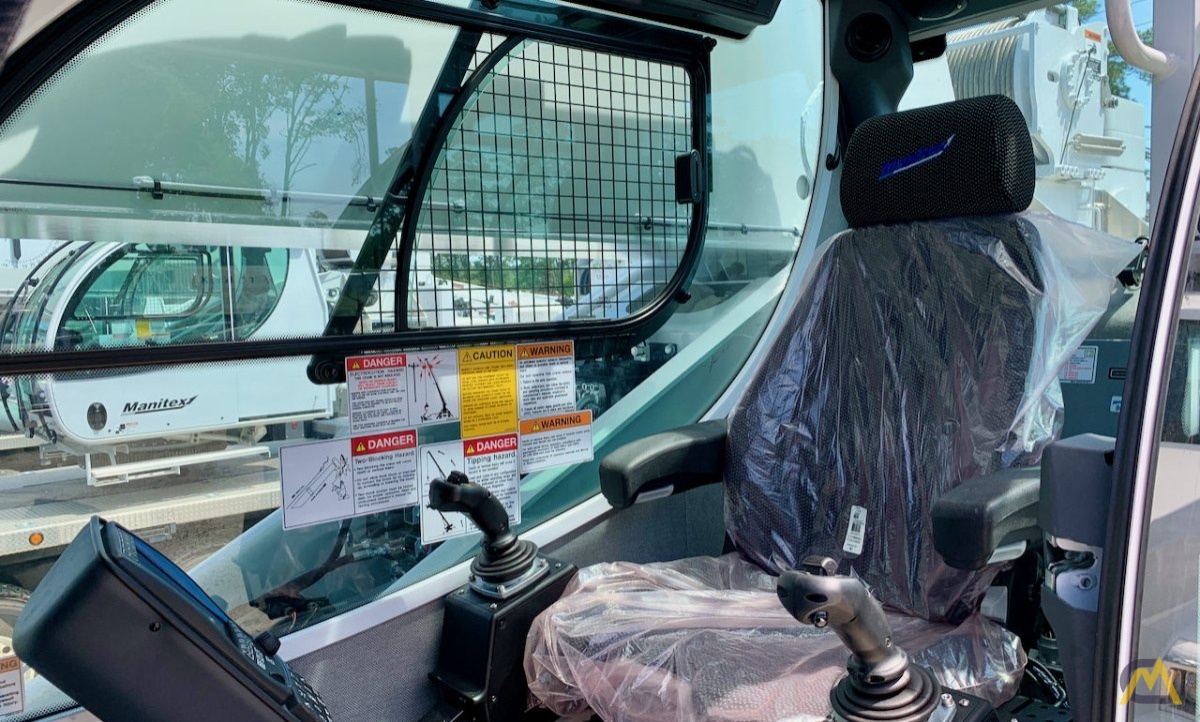

Deluxe Cab with heater, air conditioning, heated cloth seat, 8 seat adjustments, top hinged hatch, rear pop out window, with guard. Front and top windshield wipers, 12 Volt DC outlet, USB ports and engine monitoring system.
PLC crane controller, CANBUS communication, J1939 truck engine communication, electric hand and foot throttle, twin dual axis joysticks, electric/hydraulic valve actuation, electronic sensor monitoring.
Free Swing-No-Free Swing Gear Switch
360º Work Area
ROCSolid Outriggers feature Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm
Retracted, Intermediate And Fully Extended Outrigger Load Charts
Load Chart On Tires Over The Rear
Wired LMI with crane function cut-offs for overload protection, graphical display, event recorder, WADS – Work Area Definition System
Back-up Alarm – supplied on factory-mounted cranes, electronic audible motion alarm activated when truck transmission is in reverse gear.
Externally Wired Anti-Two Block System
Rugged, Weatherproof, Automotive Style Electrical System
Hydraulic Oil Cooler
Design Meets ANSI B30.5 Recommendations
Manitex UPTime Comprehensive Support
