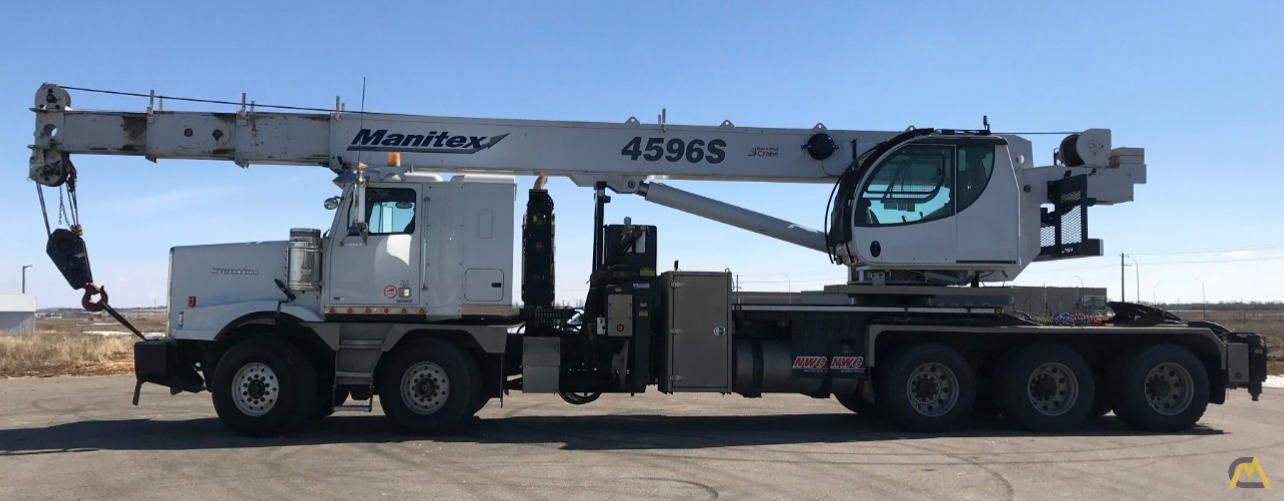

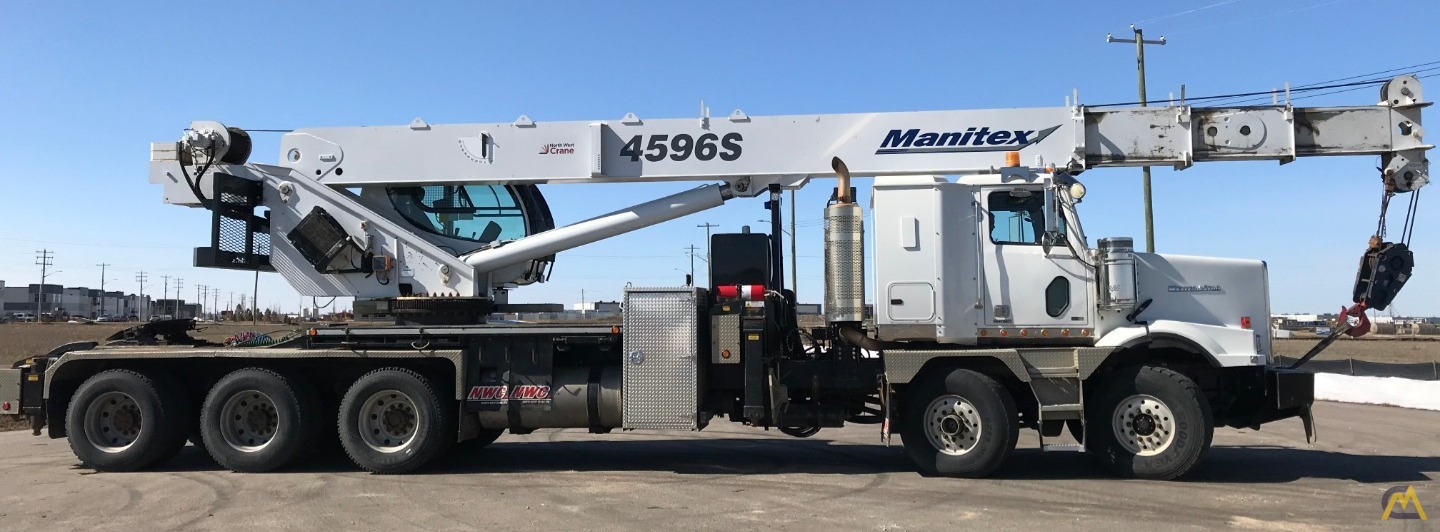

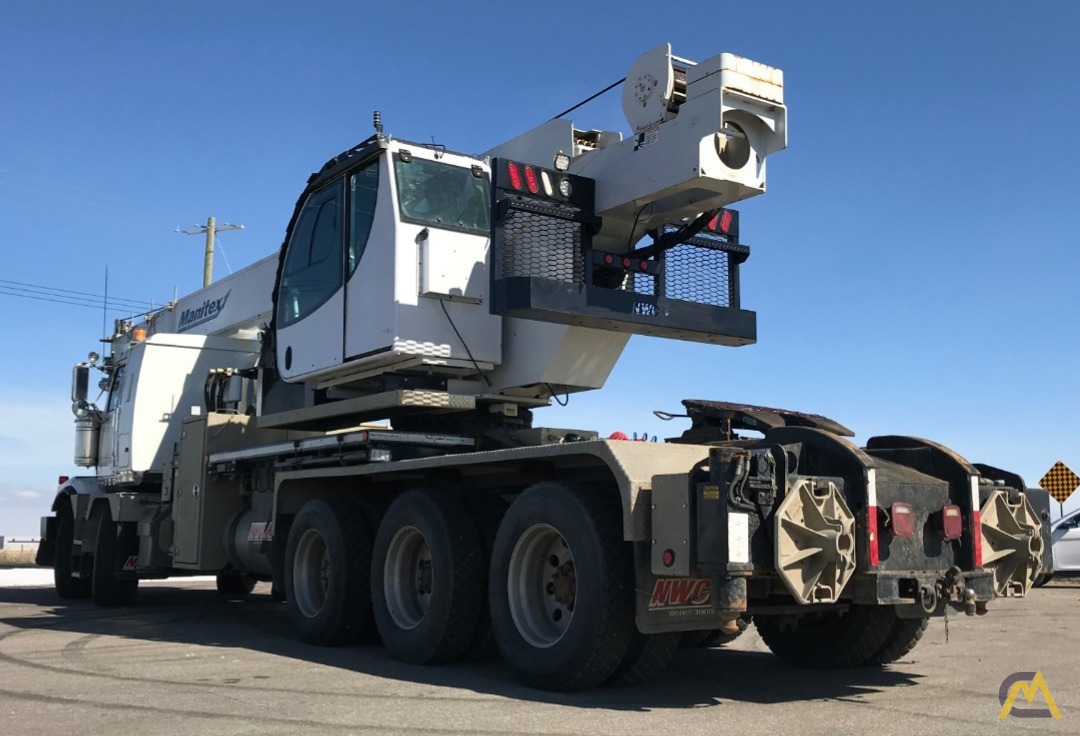

Manitex 4596T 45-ton Boom Truck Crane on Western Star 4900SB For Sale
Location: Alberta, CanadaManitex Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
Status | For Sale |
---|---|
Year | 2013 |
Manufacturer | Manitex |
Model | 4596T |
Condition | Very Good |
Hours | 8200 |
Serial Number | 192937 |
Stock Unit # | 182 |
Ton (USt) | 45.00 |
Main Boom Length | 32’ - 96’ |
Miles/KM | 115169 Kilometers |
Truck Chassis Make | Western Star 4900SB |
Engine | Detroit DD16 |
Horse Power/kW | 560 |
Category | Boom Trucks |
Sub Category | Swing Seat |
Show More | |
Hide |
DESCRIPTION
2013 Manitex 4596T mounted on 2013 Western Star 4900SB is SOLD
Only 115169km (71,562m) 7562hrs
ENGINE JUST REBUILT - WARRANTY / EATS may or may not be active
· Maximum Lifting Capacity of 89,900 Pounds @ 6’ Radius
· Four-Section Telescopic Boom 32’ to 96’
· 4-Load Sheave Quick-Reeve Boom Head
· Maximum Sheave Height of 106'
· Continuous Rotation
· Two Speed Planetary Hoist w/ 5/8” Wire Rope
· Swing Around Operator Control Station
· Fully Enclosed Tilt Cab w/ Diesel Heater
· Fixed Front Windshield w/ Wiper & Washer
· Platform Includes Engine Stop/Start, Pressure Gauges & Signal horn
· Hydraulic Single Axis Control Levers for Swing, Lift, Extension & Winch
· Dynamic Brake Pedal
· ACCUSwing Feathering Control
· Foot Throttle
· Boom Length & Angle Indicators
· Bubble Level
· Boom Rest
· Hydraulic Oil Cooler
· Hardwired Anti-Two Block w/ Lockout
· LMI System w/ Operator Display
· Factory Supplied Tractor Mount Lower Frame
· 4 - Out & Down Outriggers – 22’ (6.71 m) Spread
· Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm
· 4 - 22” Aluminum Float Pads.
· Reduced Load Charts w/ Fully Retracted & Mid-Span Outrigger Placement
· 115 Gallon Hydraulic Reservoir w/ Suction Strainer & Ball Valve
· Operators Service / Parts Manuals
· PTO, All Hydraulic Plumbing, Oil & Testing
· 35-ton 3 sheave quick reeve load block
2013 Western Star 4900SB” 40” sleeper tan-tri drive chassis complete with the following:
· Detroit DD15 560H.P. @ 1800 RPM; 1850 Lb Ft @ 1100 RPM
· Jacob Engine Brake
· 160 Amp Alternator
· Dual 13” Outside Stainless Steel Air Cleaners(Cowl Mounted)
· Fuller RTLO18918B 18-Speed Transmission
· Factory 40k Twin Steer Conversion
· Dual - Meritor 20,000 lbs. Capacity Front Axles
· 40,000 lb. Front Springs w/ Shocks
· Dual Power Steering Gears 20k Sheppard M110P
· Bendix Air Brake Package
· Tridem Meritor RZ166P Rear Wide Track Axle
· Airliner 69,000 lb. Tridem Rear Suspension (59” axle spacing)
· 4.30 Rear Axle Ratio
· 6-Way Wheel Differential Lock-Up
· 361” Wheel Base 120” Overhang
· 3/8x3 7/8x11 5/8 double-channel frame rail (3/8” outer 3/8” inner)
· Custom Bumper
· Dual 125g Fuel tanks 100g hydraulic tank
· Goodyear G296 MSA 455/65R22.5 20 Ply Front Tires
· Alcoa 22.5” by 12.25” Aluminum Front Wheels
· Michelin XDE RSD 11R24.5 16 Ply Rear Tires
· Alcoa 24.5” by 8.25” Aluminum Rear Wheels
· Cab Heater w/ Integral Defrosters & Air Conditioning
· Driver Seat – National Air Cushion Premium Plus HB Cloth
· Rider Seat – Fixed HB with Tool Box Cloth
· Exterior White
· Positive Air Shut Off
Tractor rig-up complete with the following:
· Two (2) large front cabinets w/ ground level access complete w/ broom & shovel holders mounted on front of boxes.
· One single cabinet with top access between large front tool boxes.
· Two work lights on top of large cabinets.
· Pull-out stair case style ladder w/ grab handle on tool box, one per side.
· Walking deck to back side of turret.
· Chain hanger w/ 4 hooks over fuel tank w/ mud flaps, one per side.
· Swing around style headache rack with chain tray, chain hangers and lighting.
· fenders w/ mud flap and anti-sail brackets front & back.
· Outrigger pad storage on top of fenders/under walking deck compete with composite pads.
· Visual light bar indicator on the exterior of crane cab (becoming mandatory for certain clients)
