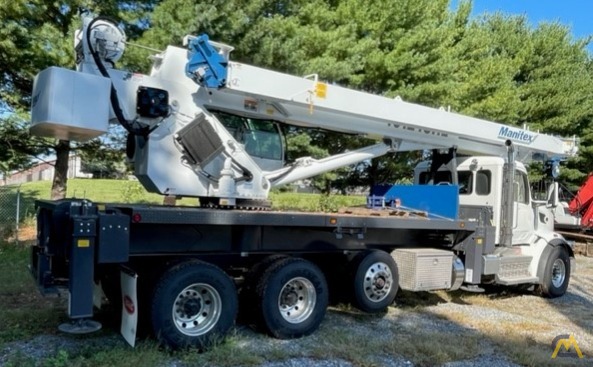

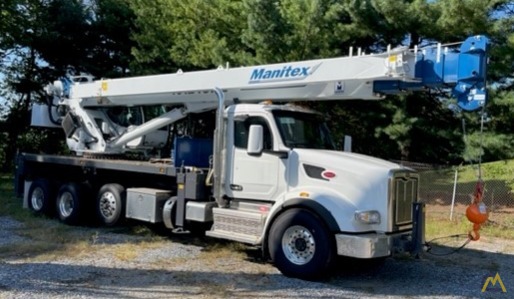

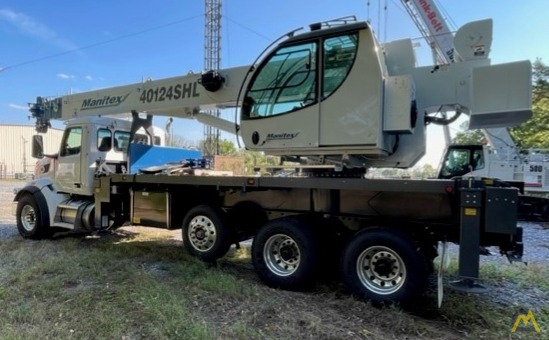

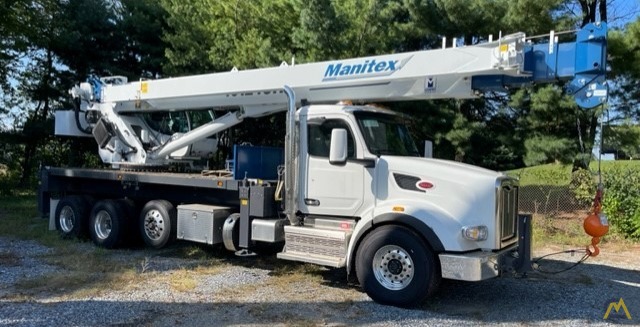

Manitex 40-ton TC40124SHL 40-ton Boom Truck Crane on Peterbilt 567 For Sale

Location: Virginia, USA Get a Shipping Quote
New Listing
Status For Sale
Year 2022
Manufacturer Manitex
Model 40124SHL
Condition New
Ton (USt) 40.00
Lifting Capacity 80,000 lbs. (36,287 kg)
Main Boom Length 31' - 124' (9.4 - 37.8 m)
Jib Extension Length 31' - 55' (9.5 m - 16.8 m)
Max. Tip Height 186.7' (56.9 m)
Max. Hook Radius 125' (38.1 m)
Base Weight (GVW) 42,000 lbs. (19,051 kg)
Truck Chassis Make Peterbilt 567
Horse Power/kW 500
Category Boom Trucks
Sub Category Swing Seat
Show More
Hide

DESCRIPTION

One—2022 MANITEX MODEL TC-40124 SHL  40 Ton Truck Mounted Crane equipped as follows:

CRANE STANDARD:

  • 5 section, 124’ Telescopic Main Boom
  • 380’ of 5/8” Rotation Resistant Wire Rope
  • Audible Outrigger Motion Alarm
  • 115 Gallon Hydraulic Reservoir with suction strainer
  • Outrigger Monitoring System for Verification Only
  • Turret, Rotation Bearing, & Hi- Torque Swing System
  • Load Moment Indicator w/ Audio/ Visual Capacity / Shut-off
  • 4- Out & Down Outriggers 22’ Maximum Spread
  • Capacities for Intermediate 13’4”, and Retracted 7’2”
  • Removable Boom Rest
  • 2- Retractable Ladders for Bed Access
  • 3- Section Vane Pump-CCW Rotation Standard
  • Lower Frame for 10’ Flatbed
  • Hydraulic Oil Cooler
  • Pilot Controls
  • Bubble Level
  • ROC Solid Radio Remote Outrigger Controls Valve for FBS

EQUIPMENT:

  • 3-load 2 Speed Hoist, Grooved Drum, Hoist Rotation Indicator
  • 7-ton Ball
  • 2 Upper / 3 Lower Sheave Quick-Reeve Boom nose
  • Hard Wired Anti-two block with Lockout
  • Boom Hoist Cylinder
  • System Pressure Gauge
  • 360 degrees Area of Operation
  • Continuous Rotation
  • Tilting Cab, w/ Heater, Windshield Cover
  • Engine Monitoring System
  • Engine Start Stop
  • Operators / Parts/ Service Manuals
  • Boom Length and Angle Indicators
  • Electronic Throttle
  • Foot Throttle
  • Free Swing
  • Signal Horn

INCLUDED CRANE OPTIONS:

  • 30.5’ – 55’ 2 Piece Jib with Hardwired Anti- Two Block
  • 10’ Steel Bed
  • Standard Mounting
  • Braden Main Winch
  • Operators Cab Air Conditioning
  • Video Camera
  • Hot Shift PTO
  • 15-ton 1 Sheave Quick Reve Block for 1-3 part line
  • 5th Front Center Stabilizer and Mounting
  • Auxiliary Hydraulic Oil Cooler
  • 24” Steel Bulkhead
  • 5 - 31” x 31” Cribbing Plates
  • Cribbing Storage Racks
  • 1-Toolbox Aluminum 36” x 24” x 24” Chassis Mount
  • Current Annual Certification

CHASSIS CRANE WILL BE MOUNTED ON:

  • 2022 PETERBILT 567
  • X-15 500 HP Engine
  • EATON FO16E308LL 10 SPEED ULTRASHIFT PLUS TRANSMISSION
  • Front Axle: 20,000 lb
  • Front Tires: 425/65R22.5
  • Rear Tandem Axle: 46,000 lb
  • Rear Tires:  – 11R22.5
  • 13,500 LBS. Pusher Axle
  • 90 Gallon fuel tank

Current State Inspection
