Manitex 110-35E 5.5-ton Trolley Boom on Freightliner 114SD For Sale

Location: 6635 South 13th Street, Milwaukee, WI 53221, USA
 Manitex Authorized Dealer
Status For Sale
Year 2022
Manufacturer Manitex
Model 110-35E
Condition New
Stock Unit # 10552
Ton (USt) 5.50
Lifting Capacity 11,000 lbs. (4,989 kg)
Main Boom Length 22.3' - 34.2'
Height Under Hook 47'
Horizontal Reach 35'
Base Weight (GVW) 72,000 lbs.
Transmission Type Automatic
Truck Chassis Make Freightliner 114SD
Engine Detroit Diesel DD13
Horse Power/kW 470
Category Trolley Booms
Show More
Hide

DESCRIPTION

New Manitex 110-35E Trolley Boom on 2022 Freightliner 114SD

CRANE

  • MANITEX 110-35 E
  • MAX LIFT CAPACITY @ 18' IS 11,000LBS MAX LIFT @ 35' IS 4,000 LBS
  • 22' 3" OVERALL RETRACTED LENGTH
  • 34' 2" WITH HOOK OUT, AND 14" WITH HOOK IN
  • BOOM EXTENSION RADIUS OF 35'
  • MINIMUM RADIUS RETRACTED 15'1"
  • MAXIMUM RADIUS 43'
  • CONTINUOUS BOOM ROTATION
  • PROVEN PISTOL GRIP RADIO REMOTE CNTRLS

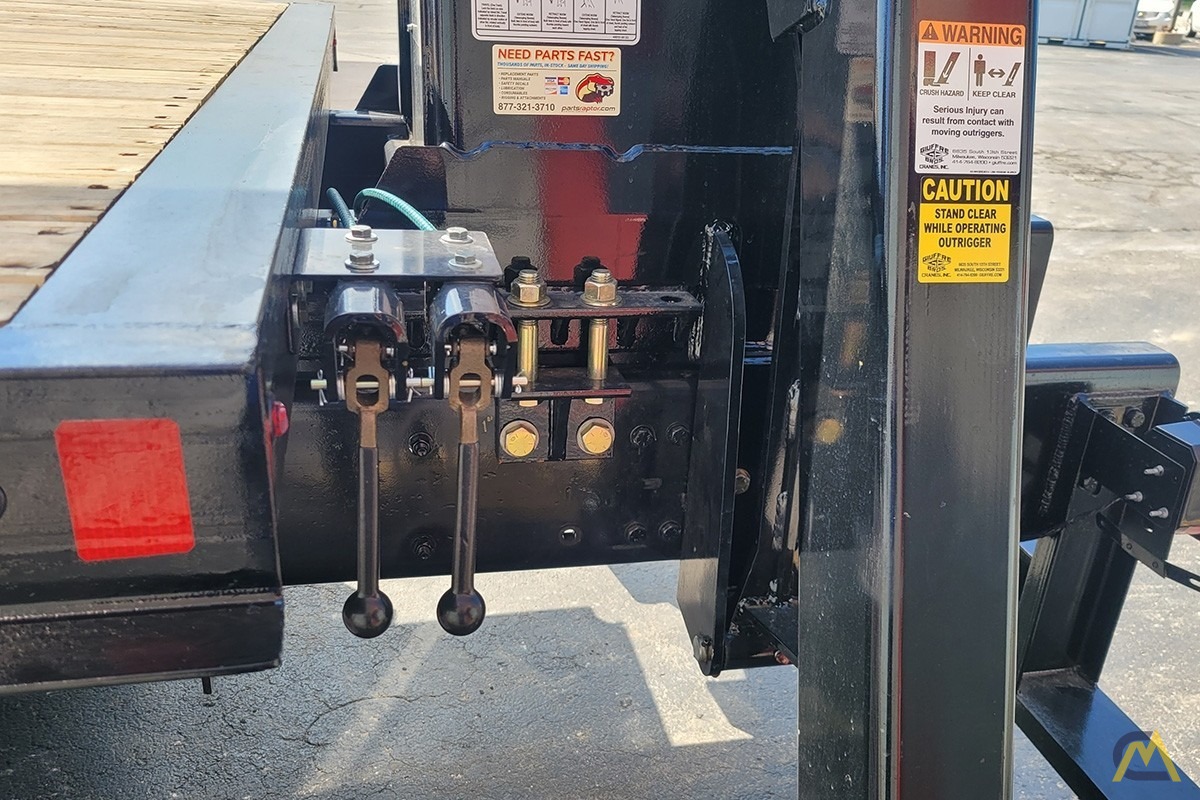

  • A-FRAME STYLE HYDRAULIC OUTRIGGERS @ 15'6"
  • BOX TYPE BOOM CONSTRUCTION FOR INCREASED STRENGTH / WEIGHT RATIO
  • DUAL ELEVATE CYLINDERS
  • LOW PRESSURE, OPEN CENTERED HYDRAULIC VALVES INCREASE RELIABILITY AND REDUCE MAINTENANCE
  • FLOW DIVIDER ALLOWS OPERATOR SEVERAL FUNCTIONS SIMULTANEOUSLY
  • ALL STANDARD EQUIPMENT - 12 MONTH
  • STANDARD MANITEX FACTORY WARRANTY

TRUCK

  • NEW 2022 FREIGHTLINER 114SD
  • DETROIT DD13 12.8L 470 HP @ 1625 RPM, 1900 GOV RPM, 1650 LB-FT @975 RPM
  • 66,000 LB G.V.W.R.
  • 46,000 LB TANDEM
  • 20,000 LB FRONT STEER AXLE
  • HENDRICKSON PRIMAXX REAR AIR SUSP.
  • ALLISON 4500 RDS-P RUGGED DUTY AUTOMATIC TRANSMISSION
  • DIFFERENTIAL LOCK TANDEM AXLES w/ DRIVER CONTROLLED ROCKER SWITCH
  • IMMERSION TYPE BLOCK HEATER 110 - 120V
  • STANDARD OIL PAN
  • 425-65R22.5 20PLY FRONT TIRES
  • 11R-22.5 16PLY REAR TIRES
  • ALCOA POLISHED ALUMINUM WHEELS
  • FULL DOUBLE FRAME W/ FULL STEEL INSERT
  • AIR BRAKES w/ ABS & BENDIX SMART ATC TRACTION CONTROL & AIR DRYER & HEATER
  • 3 DTNA 12V BATTERIES (3000CCA) w/ DISCONNECT & JUMPER TERMINAL
  • STAINLESS STL CROWN & GRILLE
  • VERTICAL CHROME RH EXHAUST STACK
  • AIR CONDITIONING / CRUISE / AIR HORN
  • CHROME STEEL SWEPT BACK BUMPER
  • 160 AMP ALTERNATOR -STD. BRUSH
  • 80 GAL ALUMINUM FUEL TANK (LH - U/C)
  • DAVCO FUEL/WATER SEPARATOR WITH ESOC
  • AM/FM/WB/USB/MP3 RADIO w/ BLUETOOTH
  • AIR RIDE HIGH BACK DRIVER'S SEAT
  • ALUMINUM CAB WITH AIR SUSPENSION
  • DUAL WEST COAST STEEL MIRRORS
  • ONE PIECE CURVED WINDSHIELD
  • POWER DOOR LOCKS & POWER WINDOWS
  • EXTERIOR STAINLESS STEEL SUNVISOR

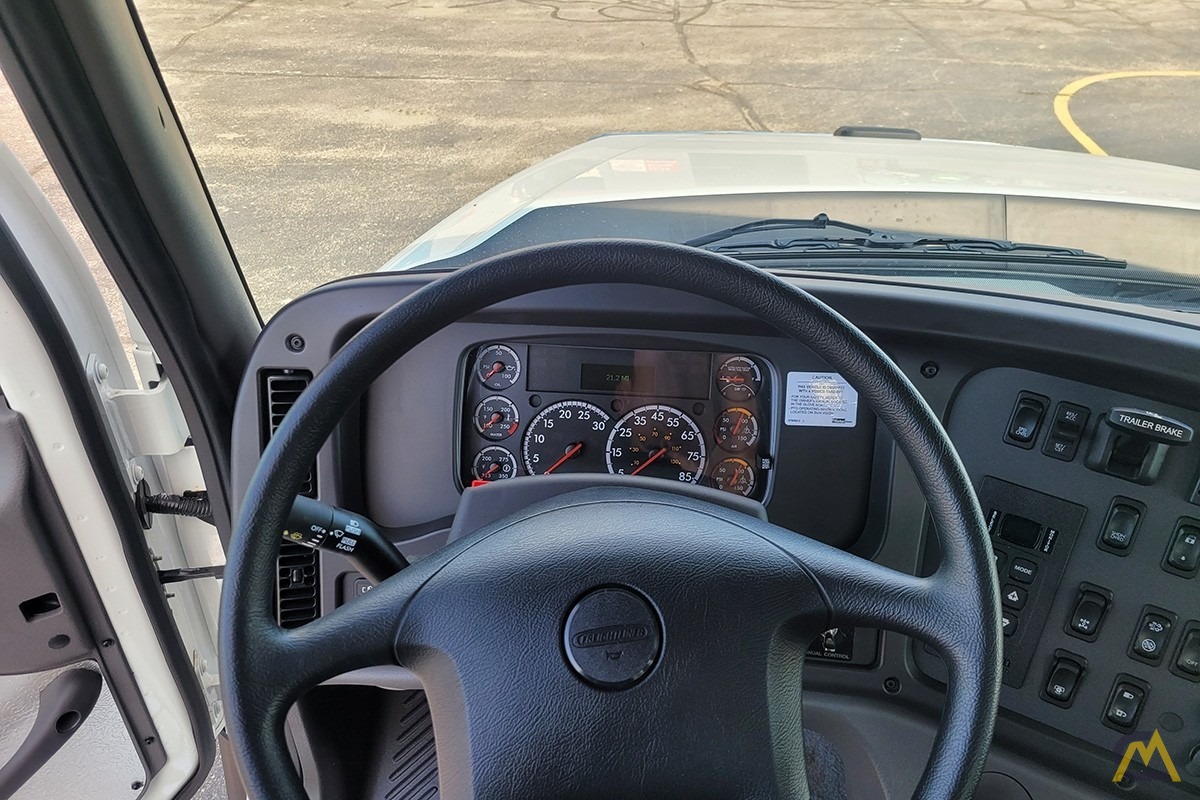

  • COMPLETE GAUGE PACKAGE
  • PAINTED FREIGHTLINER WHITE L0006
  • STD FREIGHTLINER FACTORY WARRANTY

Add to favorites
1 vote

SOLD
$284,900 USD
