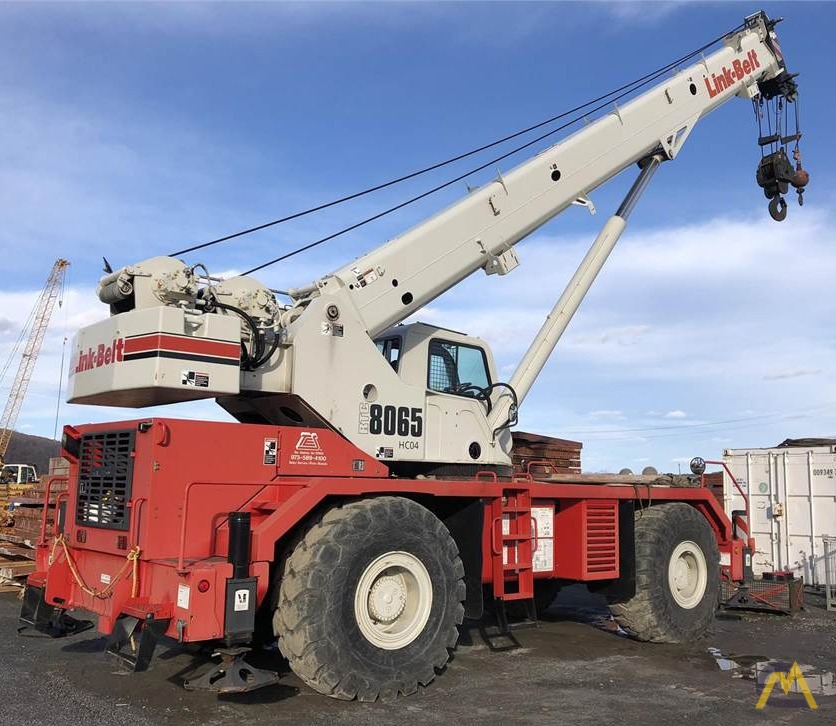

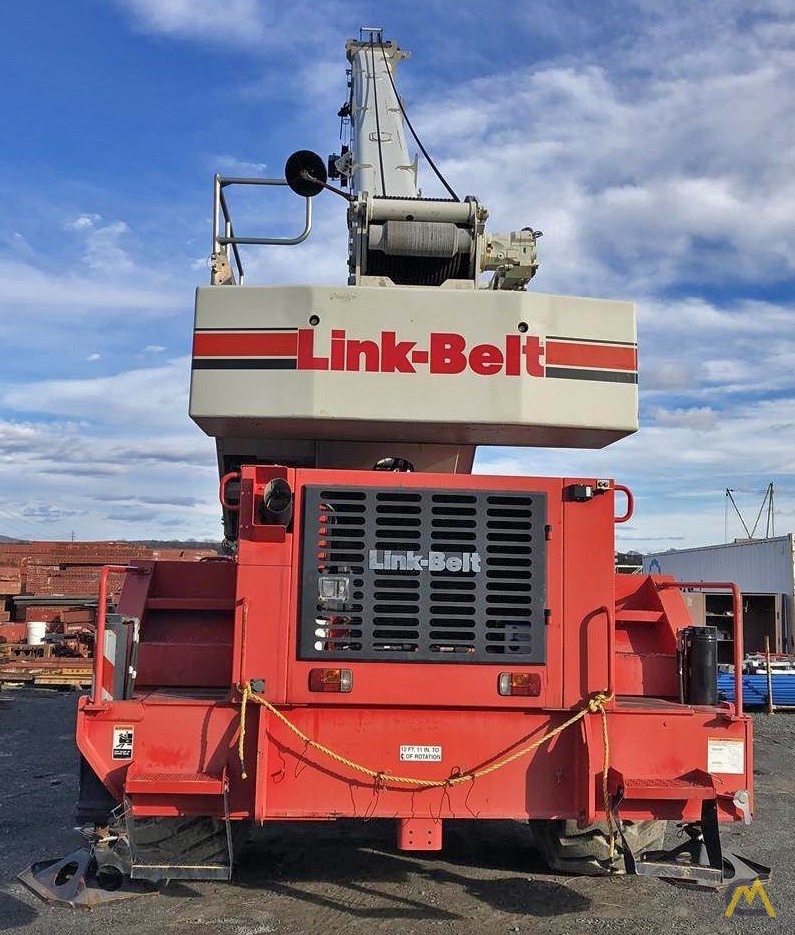

Link-Belt RTC-8065 SII 65-Ton Rough Terrain Crane For Sale

Link-Belt RTC-8065 Series II, 65-Ton Telescopic Boom Rough Terrain Crane

• 115' 4-section Boom
• CHASSIS 4x4x4 drive/steering with rear steer indication, complete travel light package with back up alarm, full deck fenders with mud flaps, lifting and tie down locations, and front towing shackles.
• OUTRIGGERS Four single stage beams with Confined Area Lifting Capacities CALC™ provide selectable outrigger extensions of full, intermediate, and retracted. Hydraulic controlled from the operator's cab with integral check valves and quick release 23.5" x 23.5" (59.7 em x 59.7 em) square steel pontoons.
• TRAVEL SYSTEM Two planetary axles with two and four drive modes.
• SUSPENSION Rear fully independent 4-link with automatic axle oscillation lockout.
• BRAKES Four wheel full hydraulic disc brakes.
• TIRES Four 26.5x 25
• ENGINE Cummins QSB 6.7 liter, 270 brake horsepower engine with 120V block heater, Tier 4i and Stage IUB off-highway emission standards compliance
• TRANSMISSION Powershift with torque converter, 6 speeds forward and 6 speeds reverse.
• PUMPS & HYDRAULICS 4 gear type pumps. 0-ring face seal componentry throughout with oil cooler, and pump disconnect with engine jogging switch.
• GENERAL LOWER ITEMS Right side mirror and 75 gallon (284 I) fuel tank with fuel/water separator.
• UPPER FRAME All welded high strength steel frame with precision-machined surfaces for all components.
• MAIN WINCH Model 2M two speed, power up I power down winch package includes independent hydraulic controlled I pilot operated axial piston type motor with disable switch, planetary gear reduction unit, automatic controlled spring applied I hydraulic released multiple disc brake, and electronic drum rotation indicator. Drum includes grooved laggings and are mounted on anti-friction bearings. Provisions for future addition of auxiliary winch provided.
• WIRE ROPE 600ft. (182.9 m) of314 in. (19mm) diameter 6 x 191WRC rope.
• SWING Includes independent hydraulic controlled I pilot operated fixed displacement motor, planetary gear reduction unit, spring app1ied hydraulic released 360 degree multi-plate park brake, audio swing alarm, two position positive house lock, and free swing mode.
• COUNTERWEIGHT 12,000 lbs. (5,443 kg) of total counterweight
• OPERATOR'S CAB Single occupancy, environmental cab of galvaneal steel construction. Includes fully enclosed modular compartment sealed with acoustical vinyl lining, tinted safety glass for full vision, sliding operator's door, sliding right side and rear window, swing up roof window with wiper, front window wiper and washer, circulating fan, engine instrumentation panel, six way adjustable seat, seat belt, fire extinguisher, rear view mirror, Microguard rated capacity limiter (anti-two block with function kick-out), foot throttle, arm chair dual axis Goystick) controllers, outrigger sight level bubble and hand held outrigger control, cab mounted work lights and diesel-fired warm-water heater with defroster.

GENERAL UPPERSTRUCTURE ITEMS

• Left side folding guardrails, right side swing viewing mirror, and winch viewing mirror.
• TELESCOPIC BOOM
• BOOM 38 to 115 ft. (11.6 to 35.0 m) ful1 power four section boom with quick reeve head machinery and selectable extension modes, four nylon head sheaves, deflector pads and roller, and mechanical boom angle indicator.
• BOOM HOIST SYSTEM One double acting cylinder with integral holding valve.

OPTIONS INCLUDED IN PRICE

• Aux. winch-Power up I power down, gear type motor with automatic brake, electronic drum rotation indicator, disable switch, grooved lagging, 500' W' 6xl9 IWRC rope
• Hoist drum cable follower- main and auxiliary
• RCL Internal Light Bar
• Air Conditioning
• Boom flood light - single
• Aux lift sheave
• 8 ½ ton hook and ball
• 60-ton 4-sheave quick reeve block w/ safety latch
• ROPS: Enclosed
