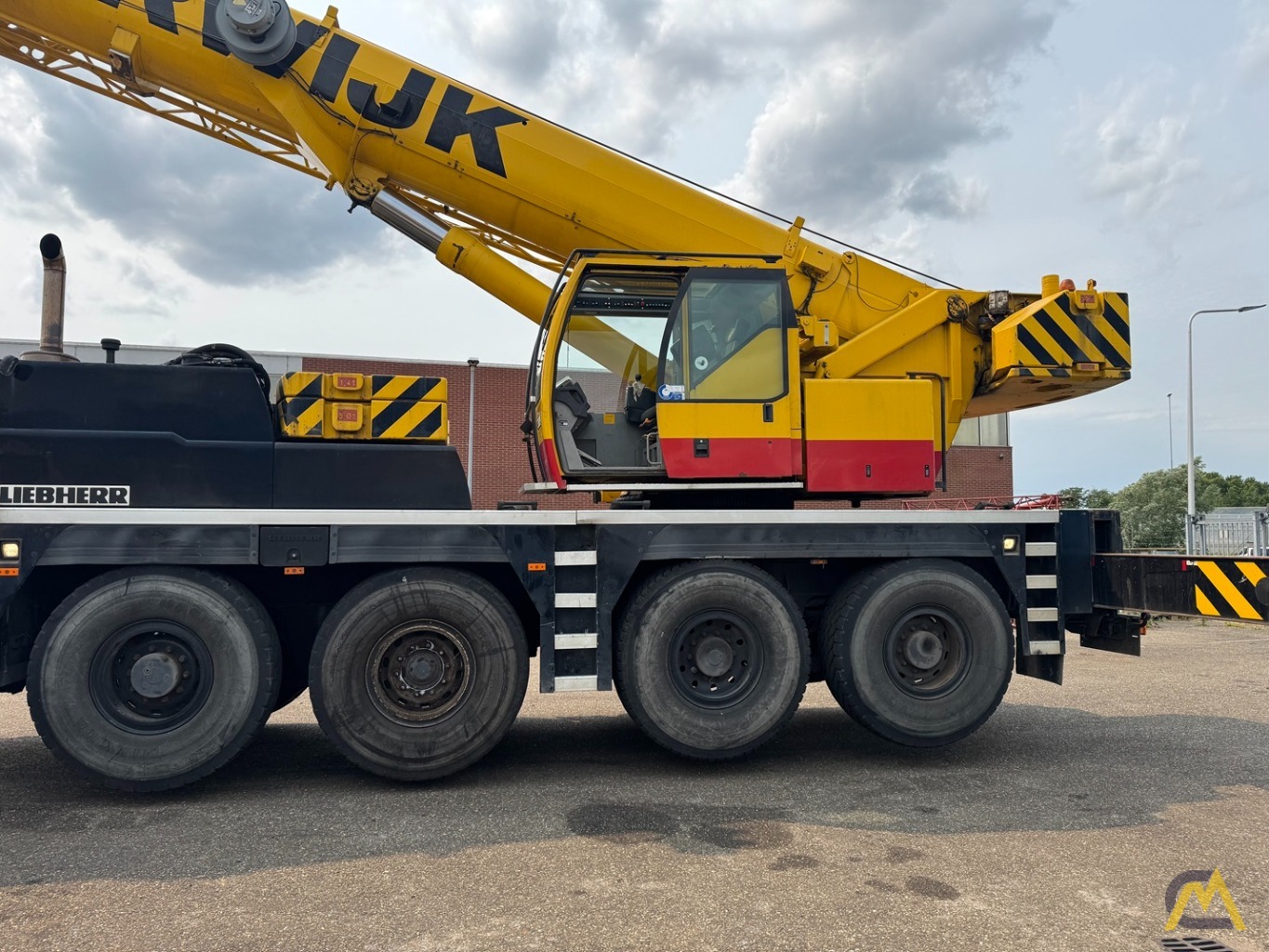

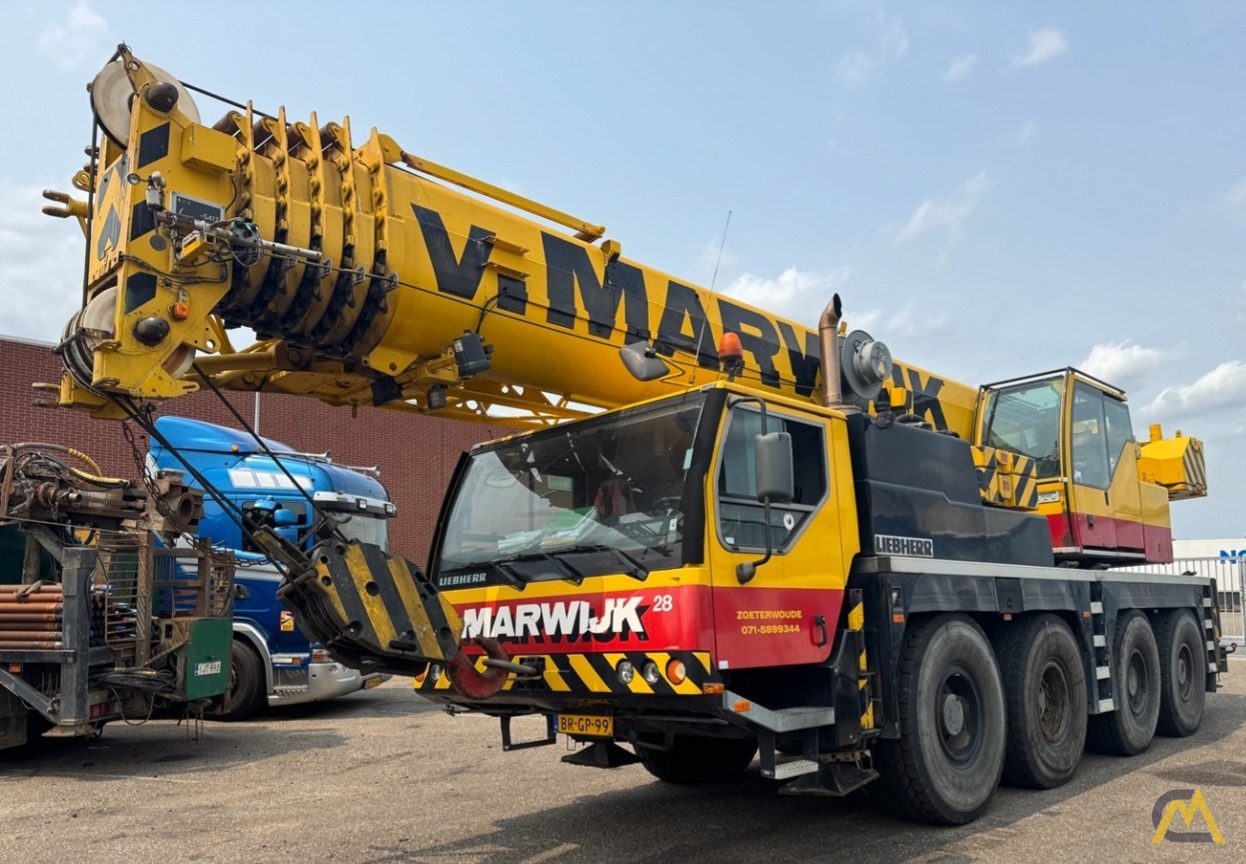

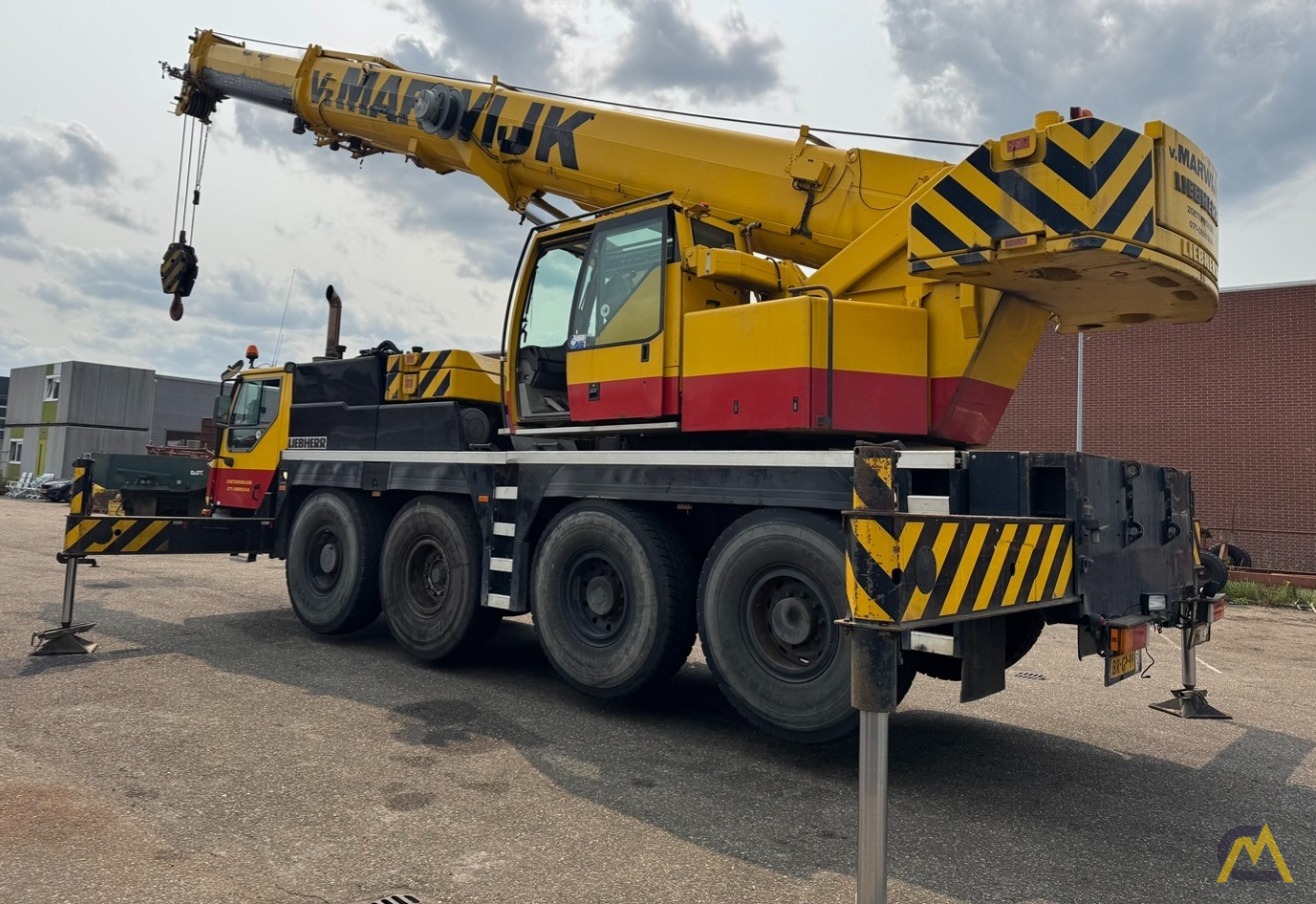

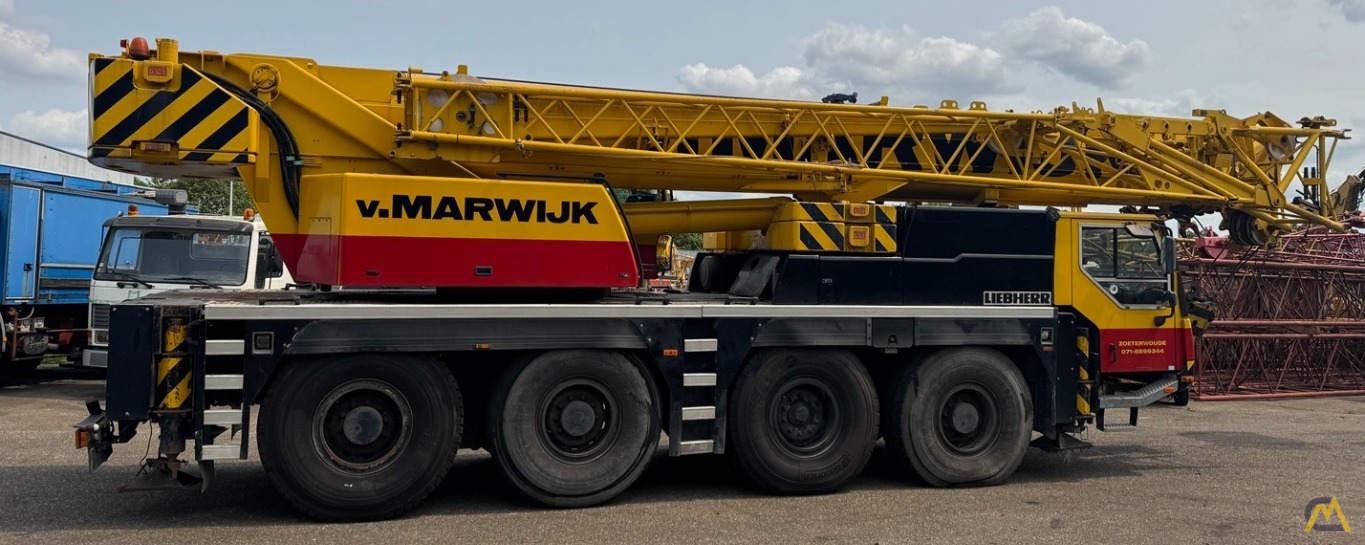

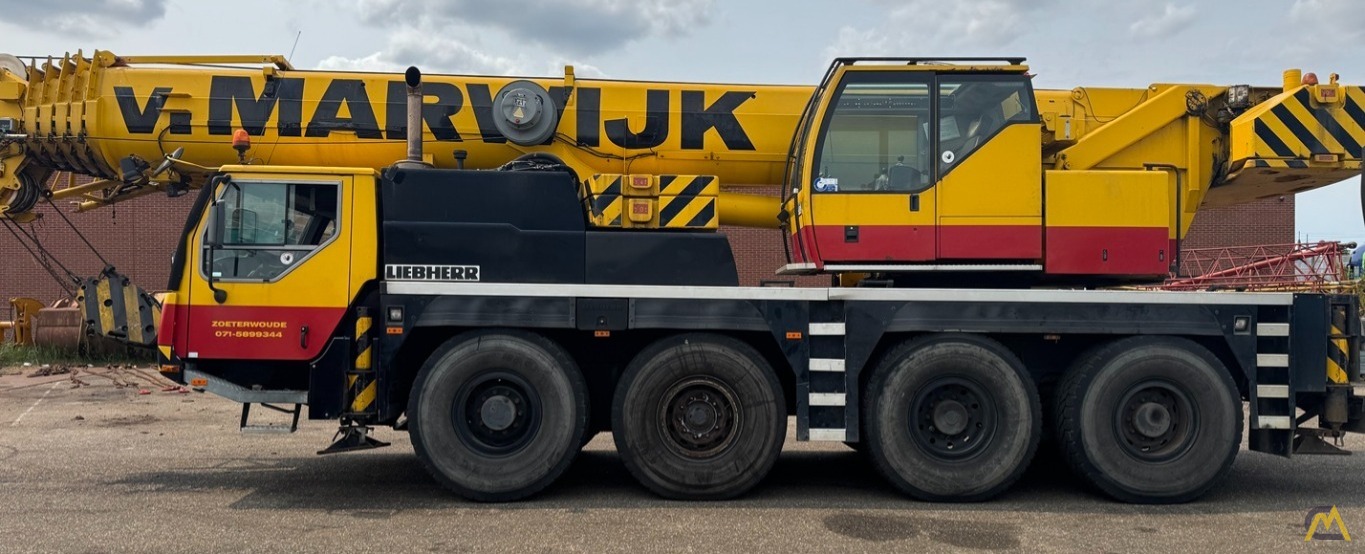

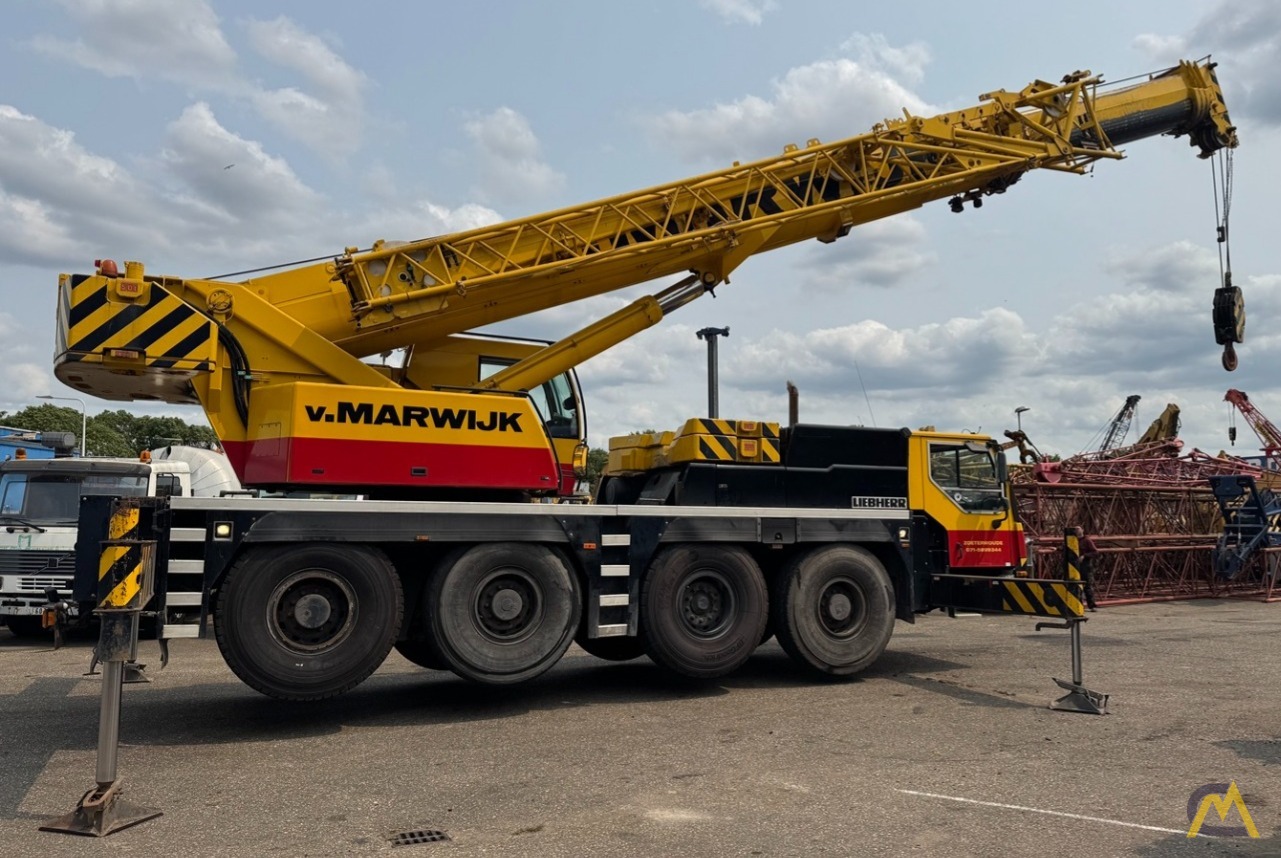

Liebherr LTM 1070-4.1 All Terrain Crane For Sale
Location: Conservenweg 101, 2371 DT Roelofarendsveen, The Netherlands Get a Shipping Quote Get Finance Quote
| Status | For Sale |
|---|---|
| Year | 2005 |
| Manufacturer | Liebherr |
| Condition | As Is |

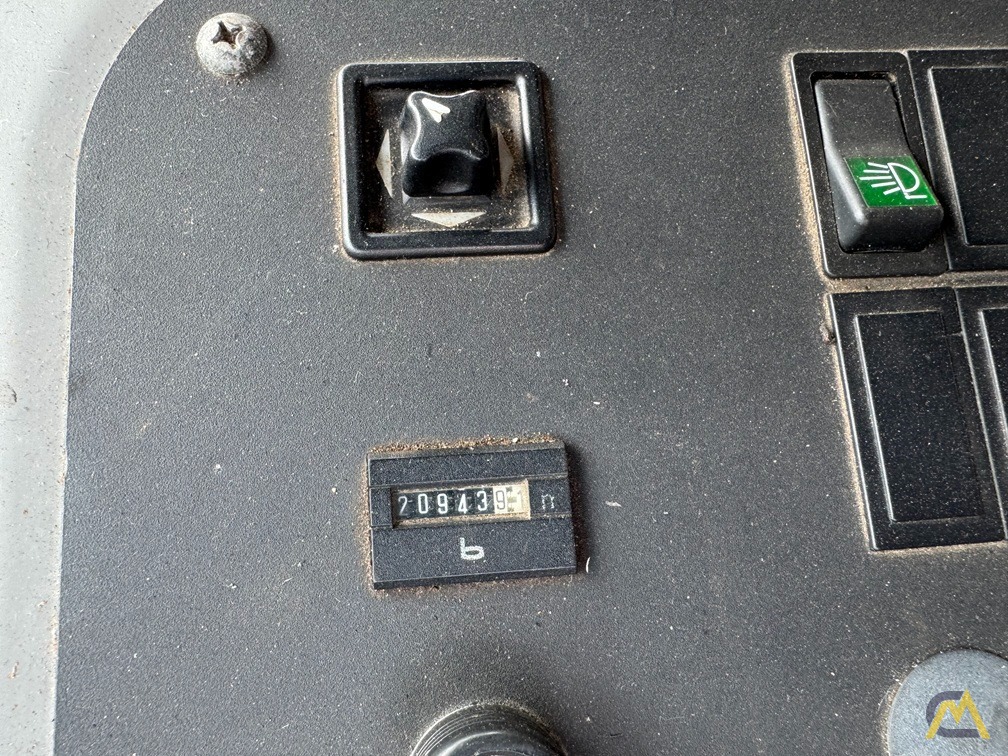

| Hours | 20,000 + |

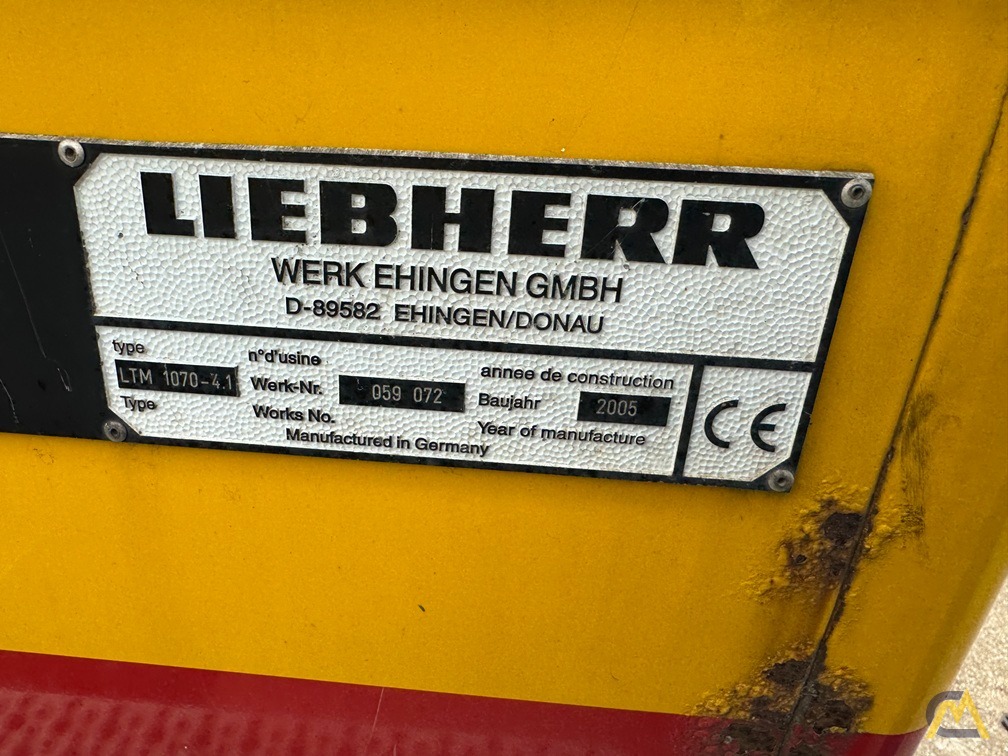

| Serial Number | 059072 |
| Ton (USt) | 80.00 |
| Lifting Capacity | 160,000 lbs. (70,000 kg) |
| Main Boom Length | 36' - 164' (11 - 50 m) |
| Jib Extension Length | 31' - 52' (9.5 - 16 m) |
| Max. Tip Height | 215' (65 m) |
| Max. Hook Radius | 153' (46.6 m) |
| Traveling Speed | 50 mph (80 km/h) |
| Maximum Counterweight | 32,000 lbs. (14,500 kg) |
| Transmission Type | Automatic |

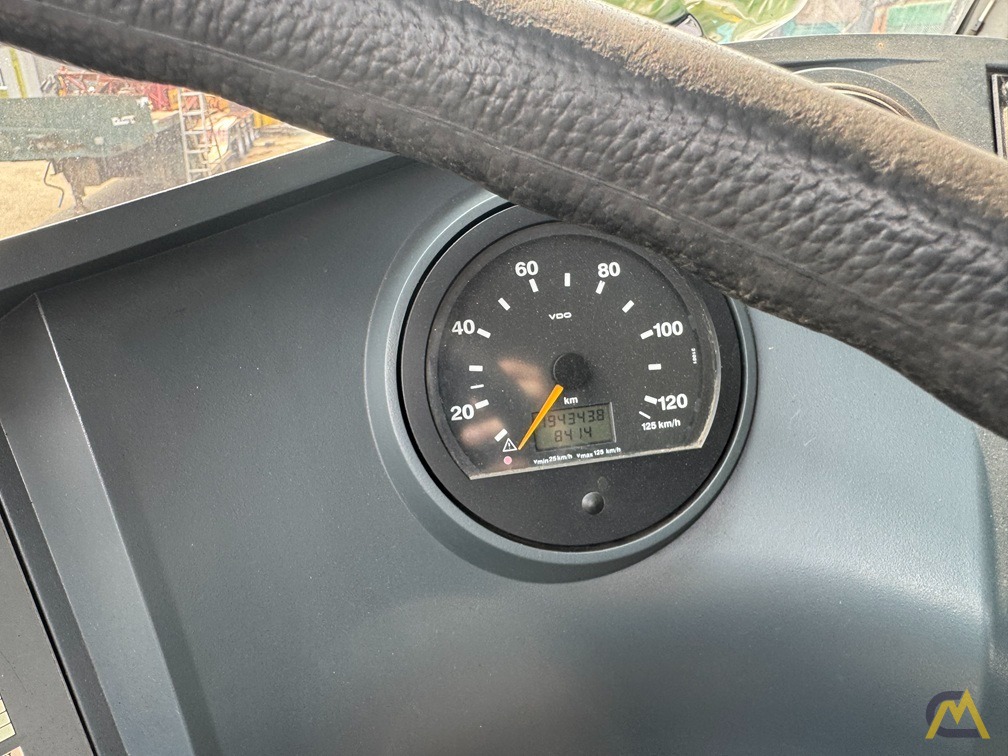

| Miles/KM | 193,000 + Kilometers |
| Engine | Liebherr D936L A6 |
| Horse Power/kW | 367 |
| Category | All Terrain Cranes |
| Show More | |
| Hide |
DESCRIPTION
Liebherr LTM 1070-4.1 for Sale - Reference Number: 5357
70 metric ton lifting capacity, 164' (50 m) main boom, and 31'-52' offsettable jib. This crane is powered by a Liebherr 6‑cylinder Turbocharged engine, with a maximum speed of 50 mph (80 km), and an 8×6×8 drive footprint.
Crane Boom
| Max Height | 213 ft (65 m) |
| Max Elevating Angle | 83° |
| Max Height @ Max Raise Angle - no jib | 164.1 ft (50 m) |
| Max Lift Capacity | 154323.6 lbs (70,001 kg) |
| Max Working Radius | 131.3 ft (40 m) |
| Min Height @ Max Raise Angle | 36.1 ft (11 m) |
| Min Working Radius | 8.3 ft (3 m) |
| Number of Sections | 6 |
| Swing Speed | 1.5 rpm |
LOWER CARRIER ENGINE
| Gross Power | 367 hp (274 kW) |
| Make | Liebherr |
| Max Torque | 1253.9 lbs/ft |
| Model | D936L A6 |
Crane Dimensions
| Carrier Length | 33 ft (10 m) |
| Transport Height | 12.8 ft (4 m) |
| Transport Length | 41.1 ft (13 m) |
| Transport Width | 8.8 ft (3 m) |
| Upper Structure Tail Swing Radius | 11.4 ft (3 m) |
Crane Operating Specifications
| Alternator Supplied Amperage | 170 A |
| Carrier Fuel Capacity | 92.5 gal (350 l) |
| Operating Voltage | 24 V V |
| Tire Size | 14 R25 |
Transmission
| Max Speed - Forward | 46.7 mph (75 kph) |
| Max Speed - Reverse | 4.8 mph (8 kph) |
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 2 |
| Transmission Type | ZF 12-speed gearbox with automatic control system AS-TRONIC |
Price On Request
