Grove GMK5210 All Terrain Crane - CranesList ID: 993 For Sale
Location: New Mexico, USA Get a Shipping Quote Get Finance Quote








Status | For Sale |
---|---|
Year | 2001 |
Manufacturer | Grove |
Model | GMK5210 |
Condition | Used |
Stock Unit # | 993 |
Ton (USt) | 210.00 |
Lifting Capacity | 420,000 lbs. (190,000 kg) |
Main Boom Length | 44' - 197' (13.5 - 60 m) |
Jib Extension Length | 43' - 72' (13 - 22 m) |
Jib Inserts | 2 x 26' (8 m) |
Traveling Speed | 51 mph (82 km/h) |
Maximum Counterweight | 138,800 lbs. (63,000 kg) |
Base Weight (GVW) | 134,540 lbs. (61,026 kg) |
Transmission Type | Automatic |
Upper Superstructure Engine | Cummins 6BTA 5.9-C |
Lower Carrier Engine | Cummins 600 |
Category | All Terrain Cranes |
Show More | |
Hide |
DESCRIPTION

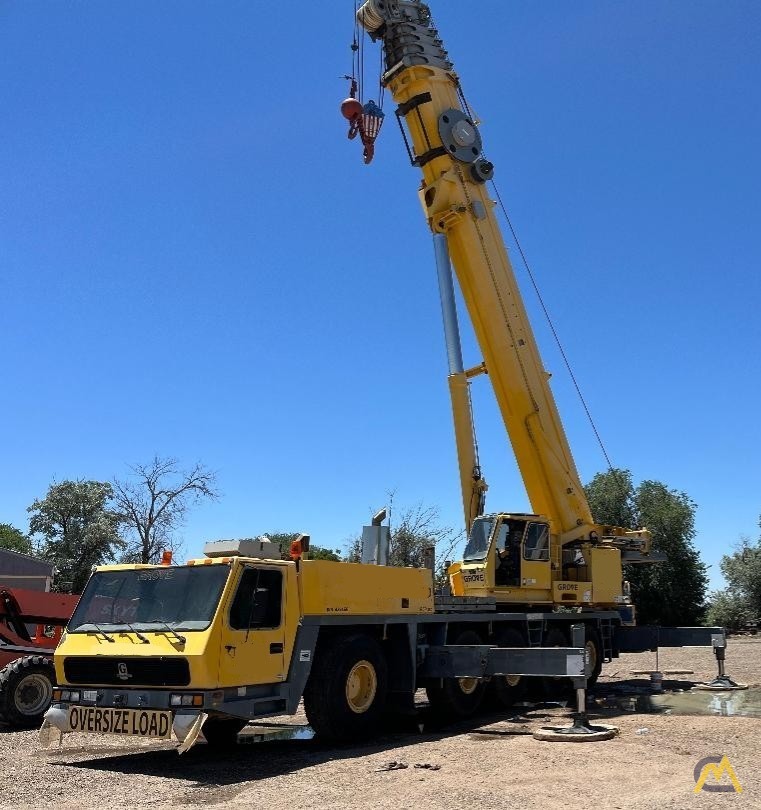

2001 Grove GMK 5210, 210 Tons, All Terrain Crane; CranesList ID: 993,

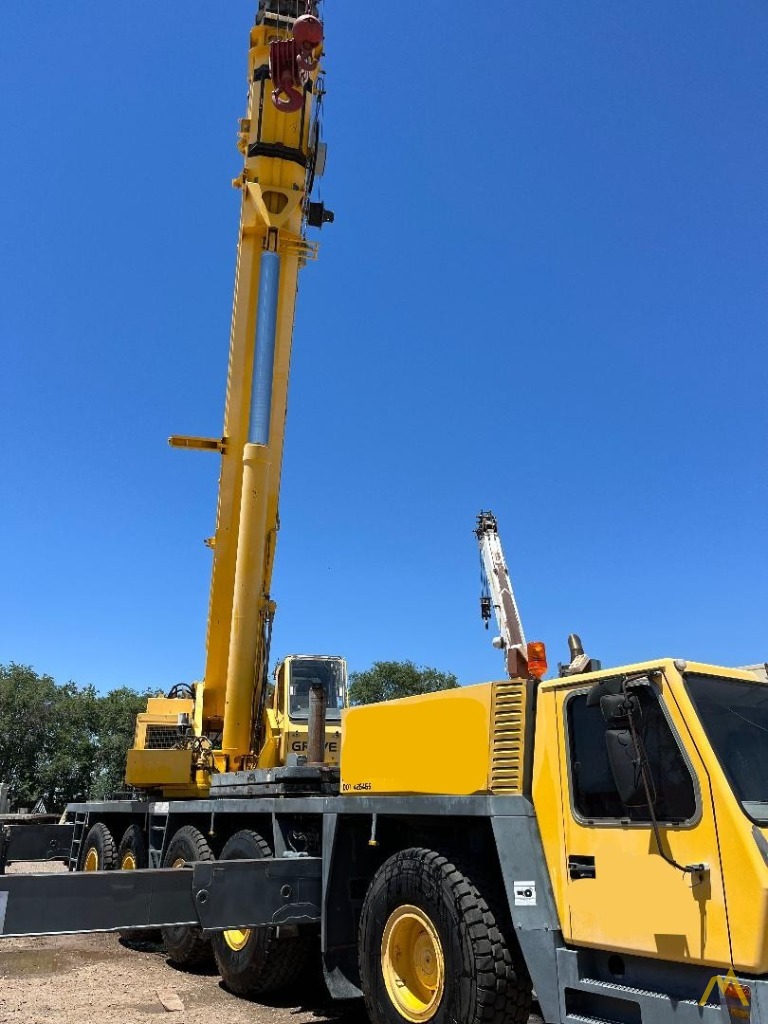

- 44’-197’ Six Section Full Power Boom with maximum height of 207'
- Twin Lock Boom Pin Section
- 43'-72' Bifold Hydraulic Swingaway Lattice Offsetable (5° - 40°) Jib
- 2 - 26' Jib Inserts for a total of 125' of Jib
- Main and Auxiliary Winches with 22mm Wire Rope
- Drum Rotation Indicator, 2 Speed, Load Moment Indicator with Anti-Two Block
- Cummins 6BTA 5.9-C 6 Cylinder Diesel Engine (Upper) - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION
- Hook Block
- 138,800# Total Counterweight - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION

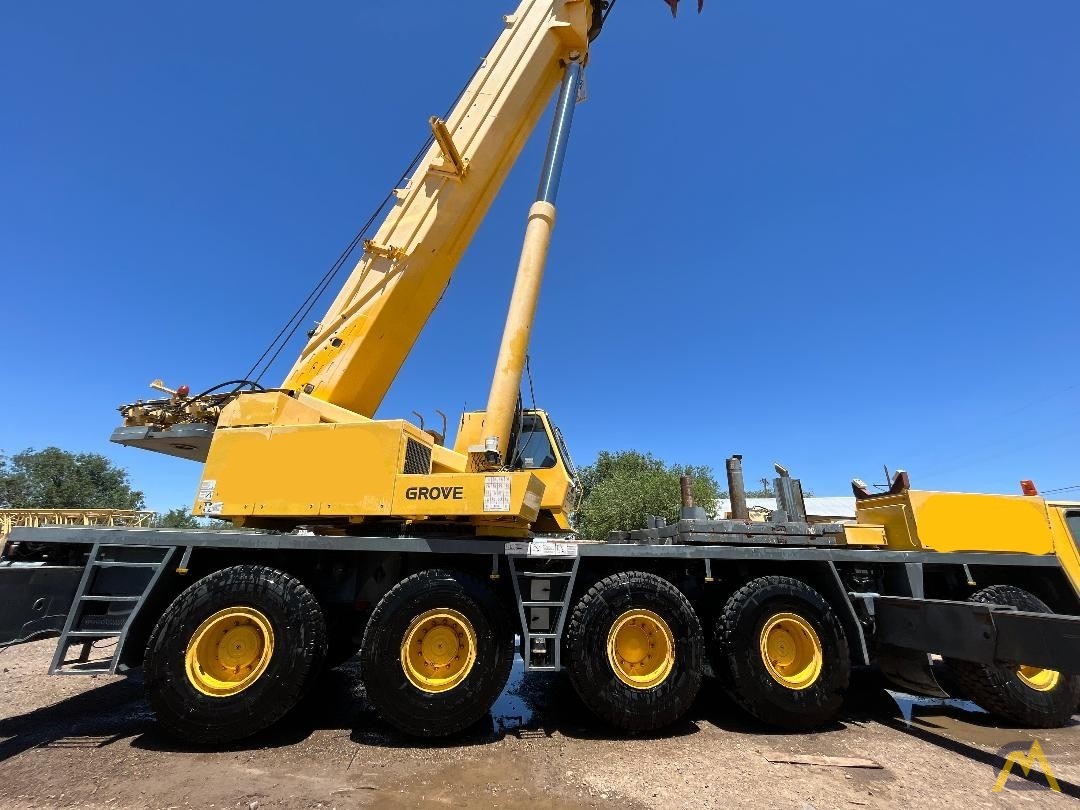

- 10' wide Grove Carrier With 10 x 8 x 10 5 Axle Drive/Steer
- Cummins 600 water cooled 6 Cylinder turbo charged and after cooled Diesel Engine - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION
- Allison Automatic CLT 755 Transmission With 5 Forward and 1 Reverse Speeds - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION
- Front and Rear Tires:20.5R25
- Grove MEGATRAK suspension

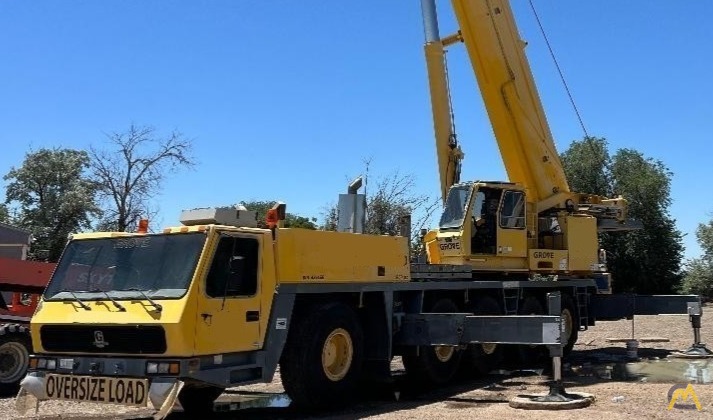

- Outrigger System - Hydraulic two-stage outrigger beams are extended by a single hydraulic cylinder and two cables. Outriggers can adjust to two positions: Fully extended (100%) - 27’ 3” & Partially extended (50%) - 18’ 8“. Outrigger controls are located on both sides of the carrier. An electronic level indicator is located next to each outrigger control box,
- Clean One Owner Crane
LOCATED IN NEW MEXICO!
$265,000 USD
