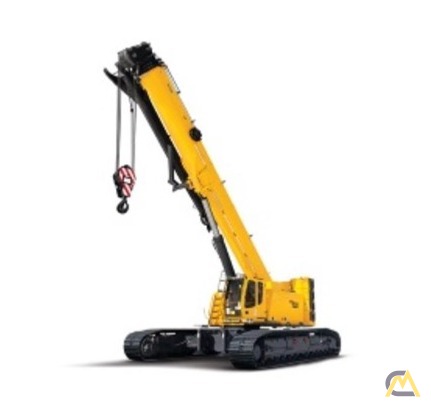

Grove GHC130 132-Ton Telescoping Crawler Crane For Sale

GROVE TELESCOPING CRAWLER CRANES
The GHC Series telescoping crawler cranes are redefining industry standards. The GHC Series combines excellent gradeability and lift capacity with 100 percent pick and carry capability. It all comes in a package that’s engineered for exceptional operator ergonomics and maneuverability, thanks to its rugged, heavy-duty crawler tracks and telescoping boom. The GHC130 delivers heavy-duty lifting power and exceptional mid-range and maximum reach, with a boom length of 12.6 m - 40.2 m (41 ft 4 in – 131 ft 11 in). Assembly of the GHC130 telescopic crawler crane is fast and simple. The crane is fully self-rigging and features frame mounted jacks for track installation and hydraulically installed counterweights.

FEATURES
• 120 t (132 USt) capacity
• 12,6 m – 40,2 m (41 ft 4 in – 131 ft 11 in) four-section full power boom
• 15 m (49 ft 3 in) offsettable boom extension
• Two 5,6 m (18 ft 4 in) lattice inserts with 0,8 m (2 ft 8 in) boom head
• 100% pick and carry load charts
• Cummins QSB 6.7L Tier 4 final compliant engine

COMFORT REDEFINED
Operator cab is designed to deliver maximum comfort while incorporating conveniently located joystick controls for precise operation. Cab comes equipped with an integrated rated capacity limiter, air suspension seat, color monitor for up to four cameras and precise climate control. The cab can tilt up to 20° providing the operator additional comfort when working at long boom and extension lengths.

TRAVEL MADE EASY
Transportation to the jobsite can easily be accomplished in three to five loads. Setup time is minimal thanks to the GHC130’s quick self-assembly system for both the counterweight and side frames. Once assembled the strong undercarriage provides 100 percent pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job.

STRONG TELESCOPIC BOOM
The GHC130 comes equipped with a robust fullpower four-section boom that allows for telescoping under load. The main boom offers 12,6 m – 40,2 m (41 ft 4 in – 131 ft 11 in) of reach. This paired with the standard 8 m (26 ft 3 in) offsettable swingaway extension provides a tip height of 51 m (167 ft 4 in). If additional reach is required, two pieces of 5,6 m (18 ft 4 in) lattice inserts with 0,8 m (2 ft 8 in) boom head and a 7 m (23 ft) fly extension are available to reach a maximum tip height of 70 m (229 ft 8 in).

BENEFITS:
More productive in more places on the jobsite. The GHC130 delivers unsurpassed maneuverability and versatility.
• Telescoping boom plus heavy-duty crawler tracks for all-terrain productivity
• Superior gradeability
• High visibility cabs with up to 20° tilt
• Two-speed hydrostatic drive allows for skid steering and counter rotation capability
• Compact design allows you to work in more places

Rugged durability to tackle all terrain. The GHC130 comes equipped with a durable, powerful crawler system.
• Hydraulically extendable and retractable crawlers
• Heavy-duty, 900 mm (36 in) triple bar, maintenance-free track shoes
• Cummins QSB Tier 3 or Tier 4 final diesel engines power through terrain challenges
• Easy, self-assembling crawlers

Easy transport to the jobsite and quick assembly. The GHC130 helps you spend less time on the truck and more time on the job.
• Transports to the jobsite in three to five loads
• Retracted gauge for transport width
• Self-assembly counterweight
• Undercarriage frame with jacks for easy self-assembly of crawlers
• Excellent serviceability keeps you up and running

Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
