Favelle Favco M440D 55.1-Ton Luffing Boom Tower Crane For SaleLocation: South Plainfield, NJ, USA Get a Shipping Quote

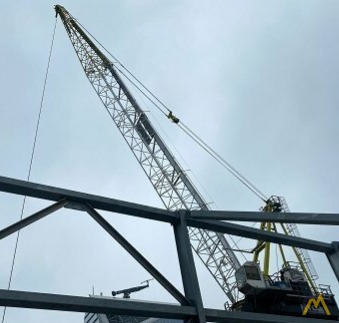

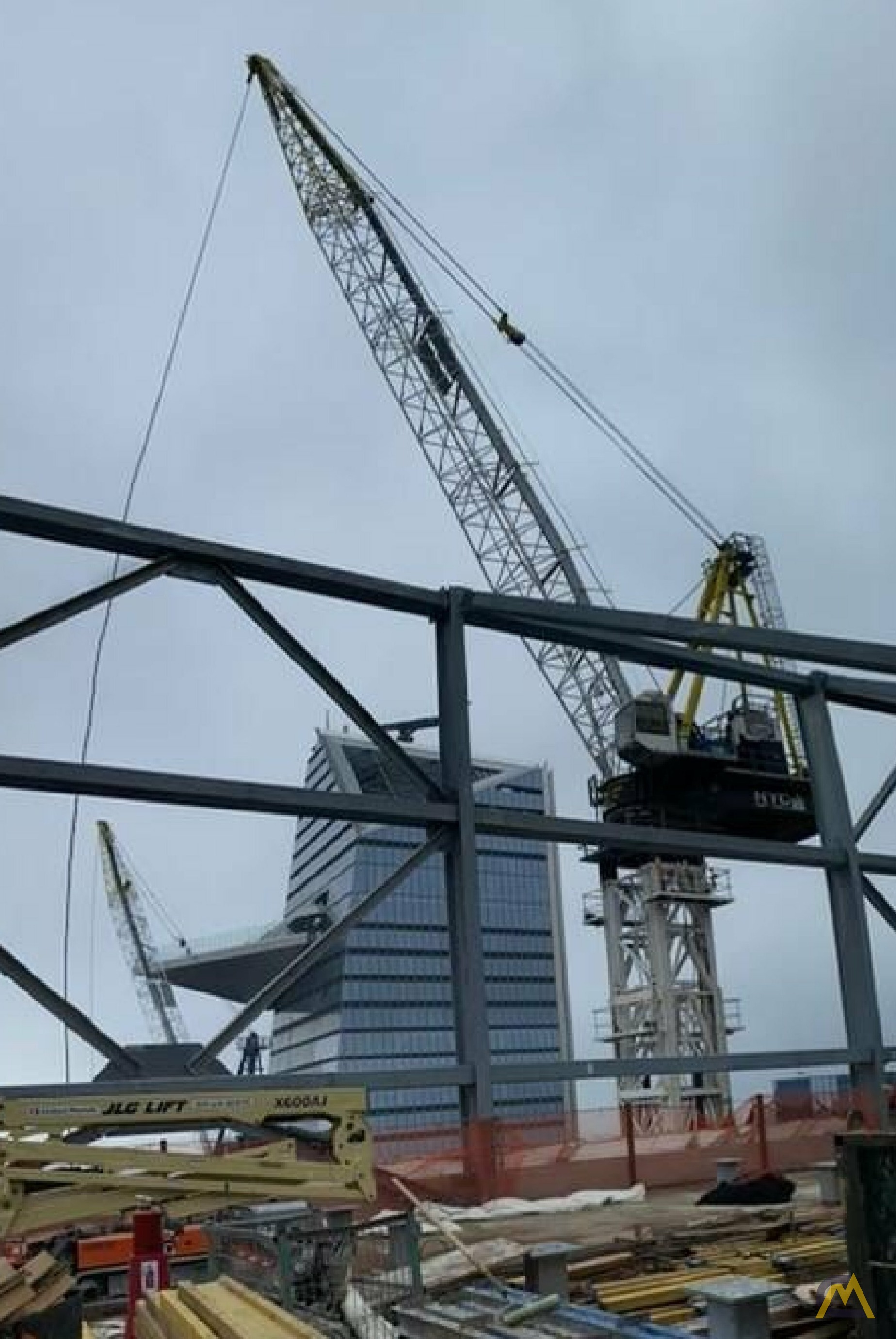

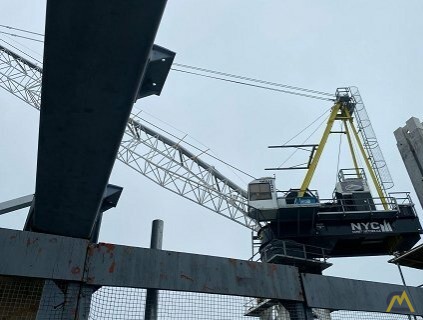

2017 Favelle Favco M440D Luffing Boom Tower Crane (Freestanding)
Towers (25 5): 25 standard tower sections and 5 reinforced tower sections
Collars (5): 5 Collars included in price
External Climbing Frame: Included with Purchase
Location: Equipment is located in South Plainfield, NJ
Pricing: Available upon discussion (All taxes are buyers responsibility)
Boom: 195ft. maximum working radius. 150ft of Boom Supplied with purchase.
Tail Radius: 26.9 feet
Machinery Deck: Split machinery deck designed to reduce weight and prevent need for street cranes during erection and dismantling
Pump Drive Gearbox: Multiple output – spur gear & splash lubricated
Main Winch: Parallel grooved drums for hoist & luff motion. Fixed or variable displacement, multiple drives used on each drum for multiple brakes on each winch. Average luff speed with maximum radius load on hook is 90 seconds.
Slew System: Rigid welded structure which is bolted to the crane tower
Hydraulic Pumps: Multiple variable displacement pumps dedicated to luff/slew/hoist/climbing
Cabin: Can be mounted on either side of machinery deck. Ergonomic design, A/C & heater, tinted glass, insulation for sound & heat.
Controls: Fail-safe pilot controls, load sensitive and operate at the optimum speed for lift or lowering. Constant horsepower system with fingertip lever control.
Indication Equipment: Power system monitor with Power Pack Annunciator Panel within Prime Mover System
Booms: Tubular steel construction, fully welded high steel. All sections jib assembled to allow interchangeability.
Aux Winch: 10 MT (22,000 lbs.) @ 102 m/min (335 fpm)
Lift Capacity: Main Hoist – 25.0T (55,000 lbs.) at 20.0m
5.6T (12,320 lbs.) at 58.6m
Line Speed: 25 MT (55,115 lbs.) @ 55.0 m/min (180 fpm)
6 MT (22,000 lbs.) @ 157 m/min (515 fpm)
Hoist Rope: 1800’ 42mm diameter
Engine: Caterpillar C15 Tier 4 standard Diesel engine
Conversion: Possible to be converted to electric from diesel.
