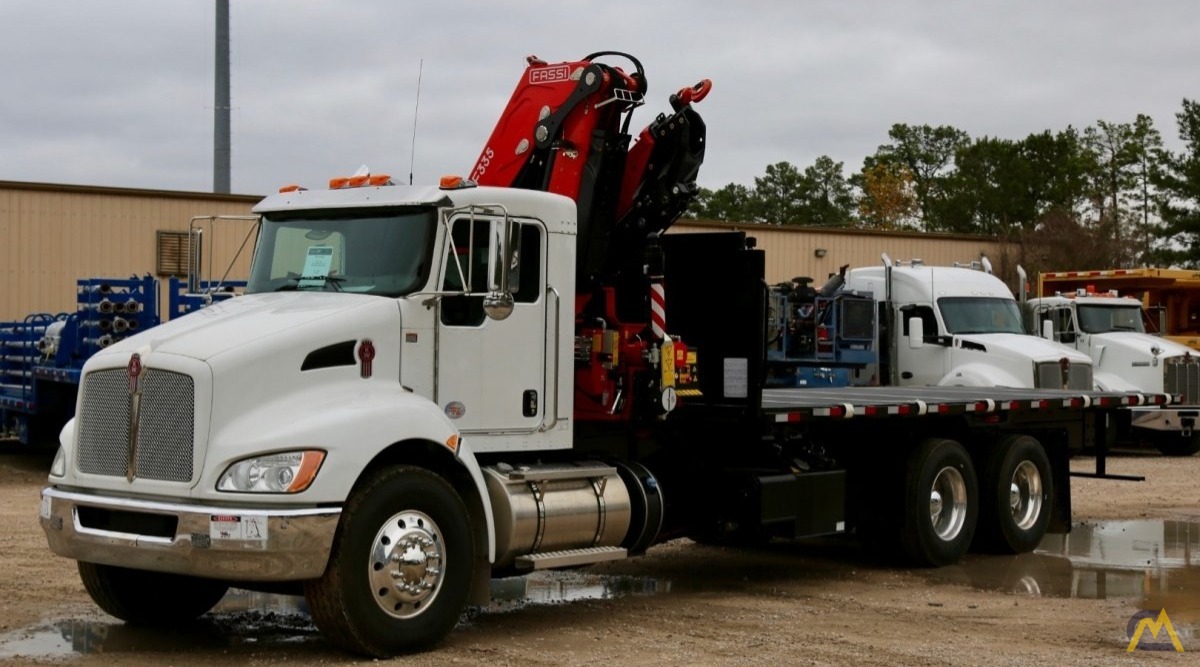

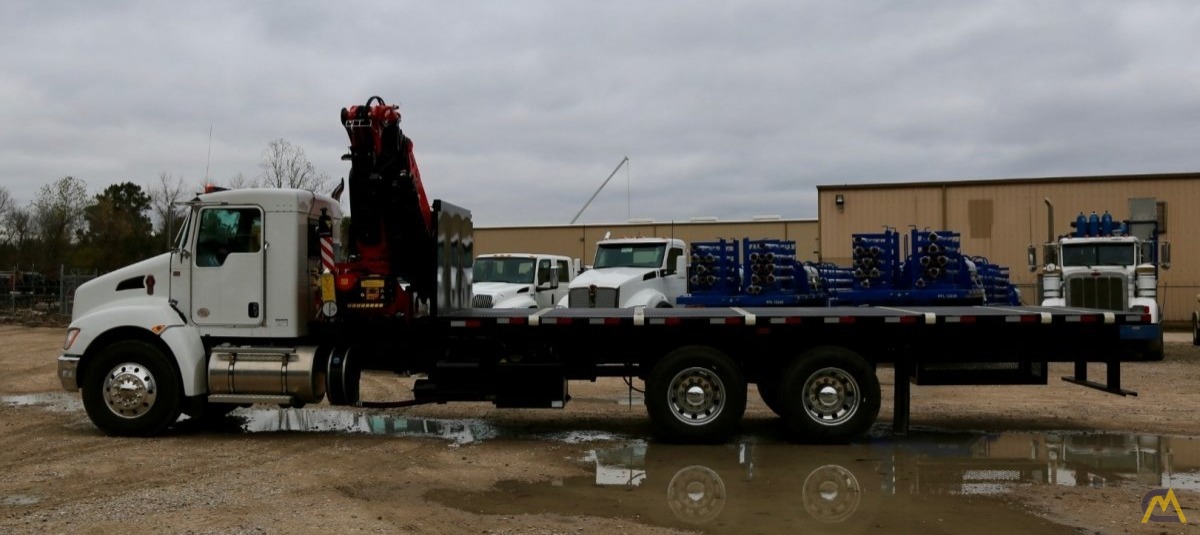

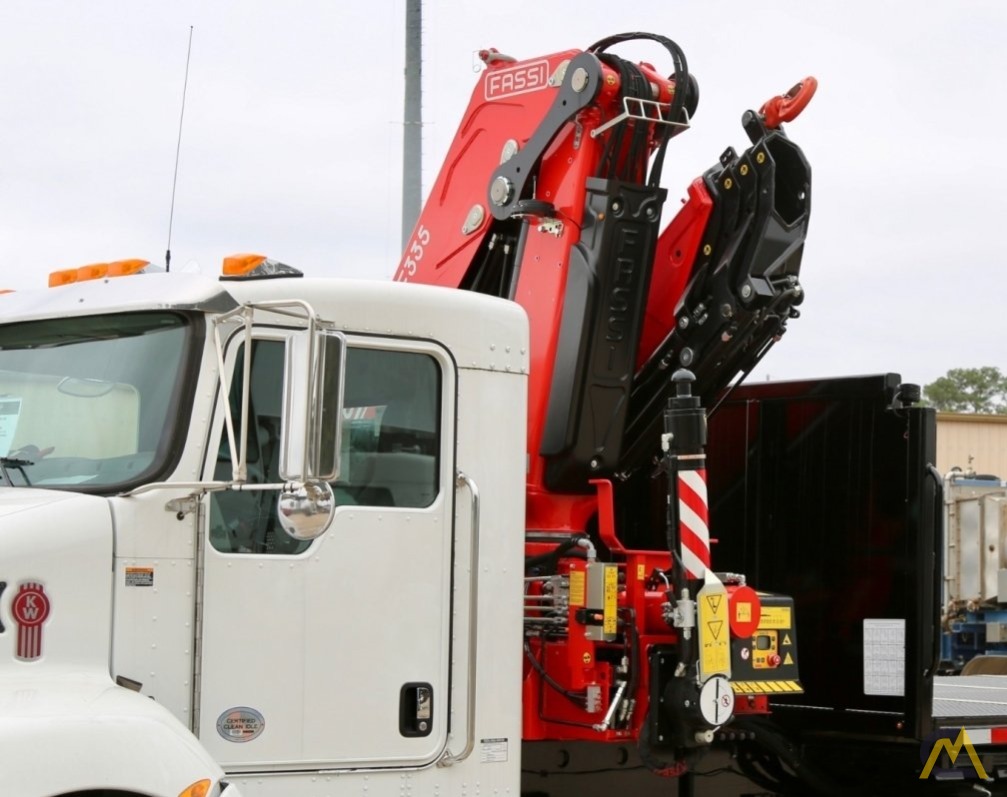

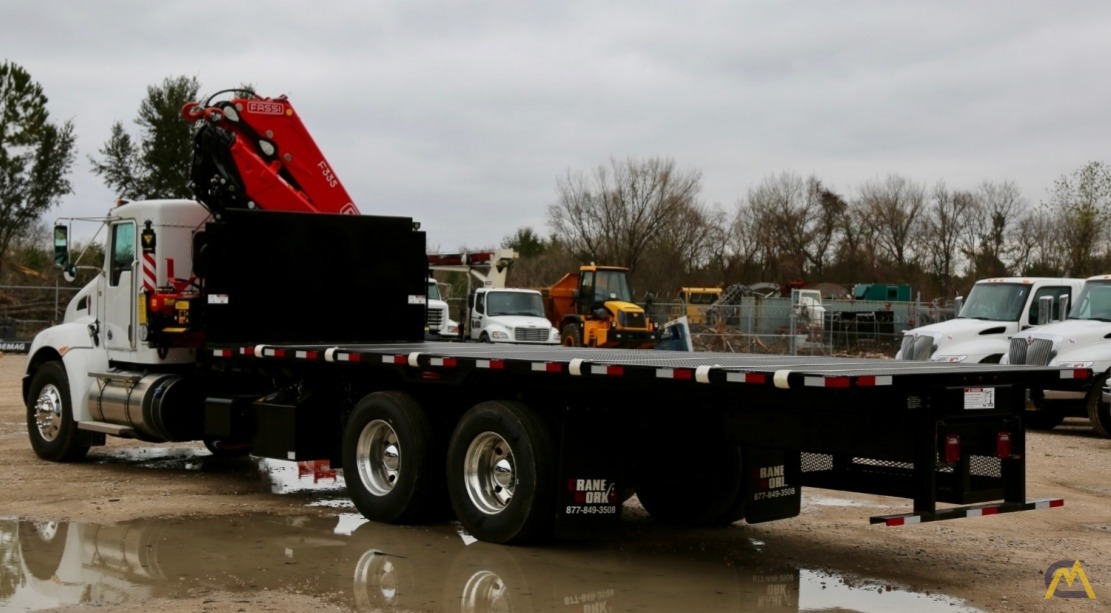

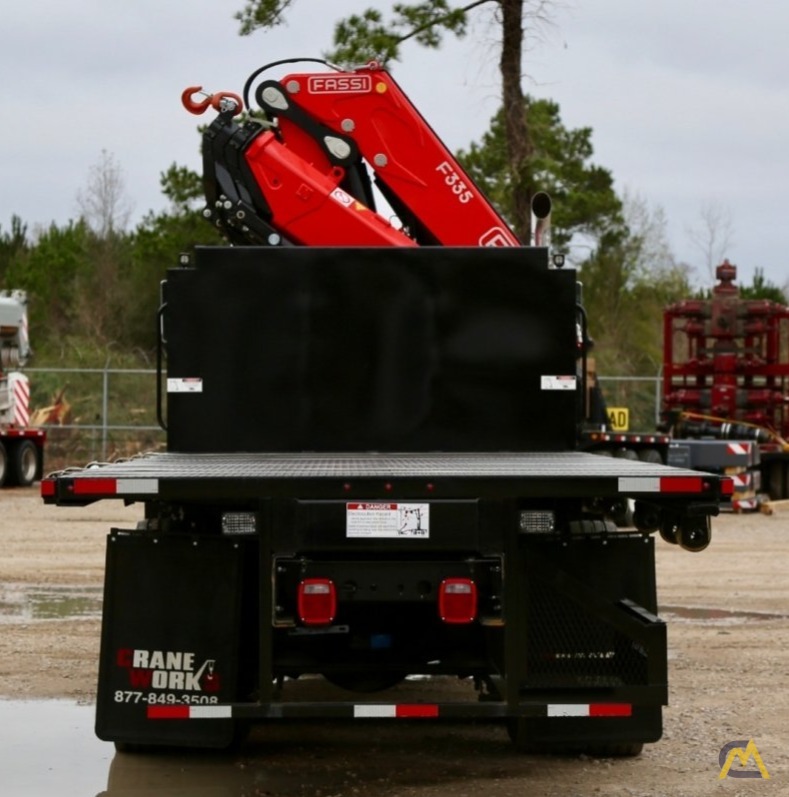

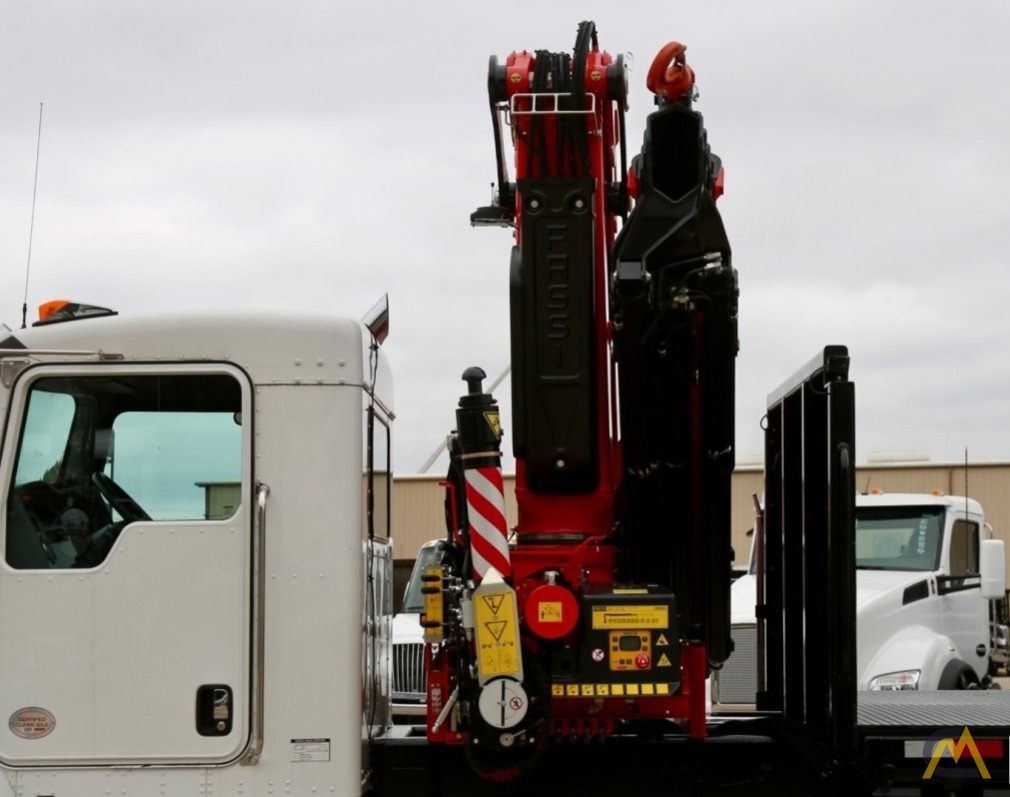

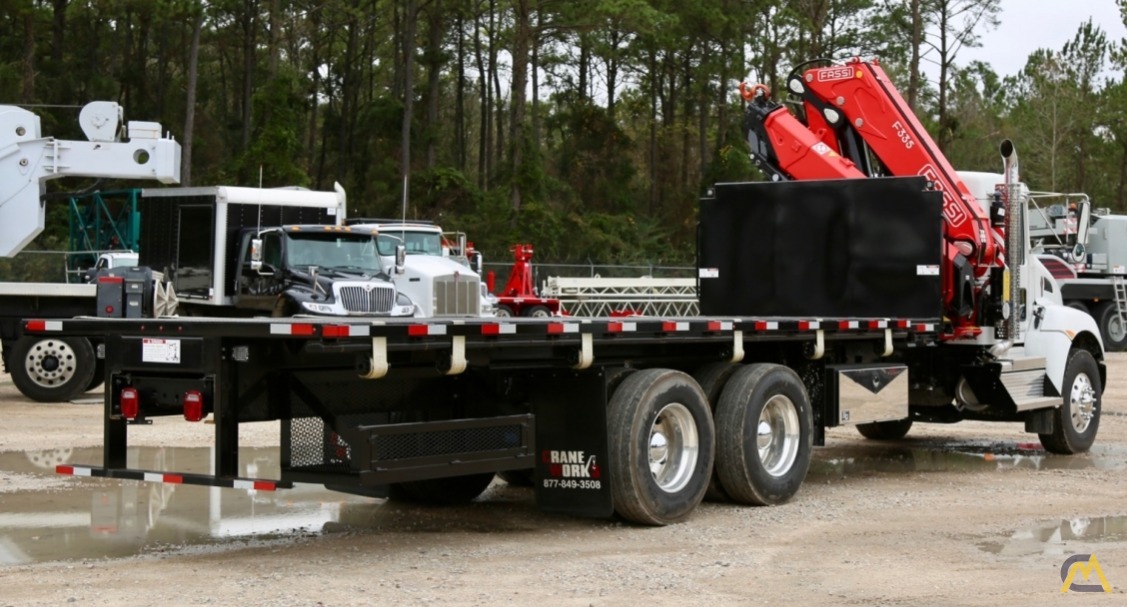

Fassi F335A 34.90-Ton Knuckle Boom Articulating Crane For SaleLocation: Houston, TX, USA Get a Shipping Quote
Fassi Authorized Dealer
up to 229286 lbs. ft
up to 87’7” ft with jib
FX800 control unit
D850 digital distributor bank
RCH/RCS radio remote control unit
ADC automatic dynamic control
Dynamic version (.2): with linkage
Prolink system with double linkage
BASE - Base with slots for tie rod fastening or for integrated counterframe allowing limitation of fitting height.
BOOMS GUIDE - Extension booms guide shoes, with “forced” assembly to reduce vertical and horizontal clearance, ensuring greater durability. Special guide shoes material with high sliding degree and low greasing request.
TANK - Plastic tank, particularly resistant to shocks and the corrosive action of any external element.
OUTRIGGER - Hydraulically extendable outriggers also in “Extra wide” execution, with hoses fitted inside the stabiliser supports (standard only on dynamic crane version). Independent hydraulic distributor for the control of the outriggers; it can be also activated by radio control (option). Available as option manual or hydraulic tiltable outriggers.
