Exodus (CAT) MX447L 12.15-ton Wheeled Material Handler For SaleLocation: 6112 Collett Road, Farmington, NY, USA Get a Shipping Quote
|Stock Unit #||14|
|Lifting Capacity||24,290 lbs. (11,017 lbs)|
|Max. Outreach Capacity||10,284 lbs. (4,664 kg)|
|Main Boom Length||31.3' + 21.8' (9.5 + 6.6 m)|
|Lifting Height||56.5' 917.2 m)|
|Horizontal Reach||50.2' (15.3 m)|
|Traveling Speed||7.5 mph (12 km/h)|
|Base Weight (GVW)||101,500 lbs. (46,039 kg)|
|Engine||CAT Acert C9 8.8L|

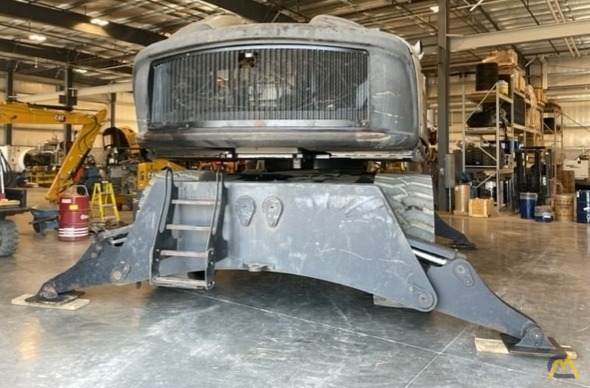

(1) Wheel Material Handling Exodus (CAT) MX447L - 24,290 lbs. capacity for Sale
Manufactured in Superior WI, the Exodus product line of material handlers transitioned to the CAT brand in 2013 and this model is fully supported by CAT distributors and Exodus Global
Operating Weight 101,500 lbs,
Service Work: PERFORMED BY AELLC (4) NEW PUMPS, NEW COMPUTER BOARD DISPLAY, NEW JOY STICK CONTROLS, NEW HEAD GASKET. SERVICE RECORDS UPON REQUEST
Structural - Purpose built for heavy material handling and designed to hold up under extreme conditions. Steel type High strength/low alloy steel/ Pins and bushings are oversized (when compared to SAE standards), nuts on all pins with side-load. Main & Secondary Booms Single piece top and side plates with no baffles. Chamfered continuous welds. Below boom cylinder pinning points.
Engine - Caterpillar ACERT C9 8.8L 6 cylinder Tier III emissions 300 HP @ 2000 RPM (447) 325 HP @2000 RPM (457). Cooling System Oversized system (rated for 350hp) with dedicated engine air tunnel and side-by-side engine radiator & charge cooler with variable pitch auto-reversing fan.
Hydraulic system - Controls are Electro/hydraulic pilot controls, Control Valves are VOAC load-sense with post compensation (allows oil share) and pre-compensation (allows lower pressure functions to operate without going over relief). Main pumps are Two Bosch Rexroth 75 gpm (447), 84 gpm (457) tied together to supply 150gpm (447), 167 gpm (457) to main functions at 4800psi.
Undercarriage - Drive is Four independent wheel drives with planetary gearboxes. All components are protected inside the box of the lower structure. True 4WD for superior traction. No tire scrub thanks to the limited slip hydraulic differential. Steering Joystick control. Components are protected inside the box of the lower structure
Operator Cab - Steel tube frame with steel shell and floor. Heat & AC High capacity heat and AC units.with integrated controller in IQAN system.
