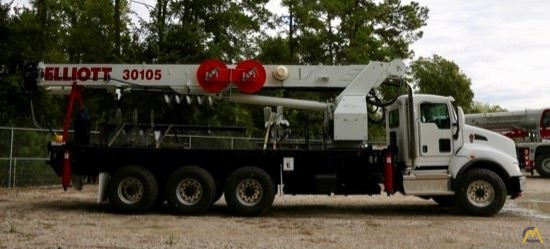

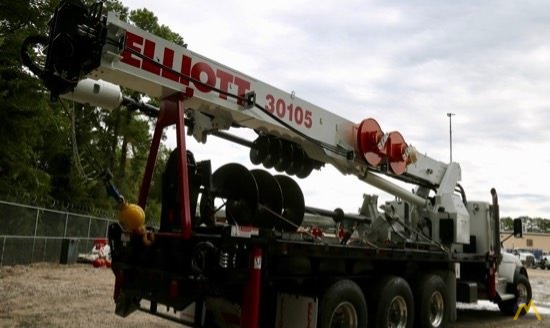

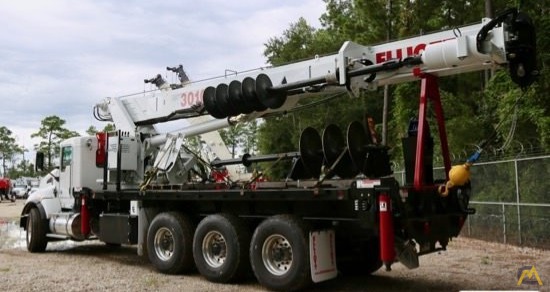

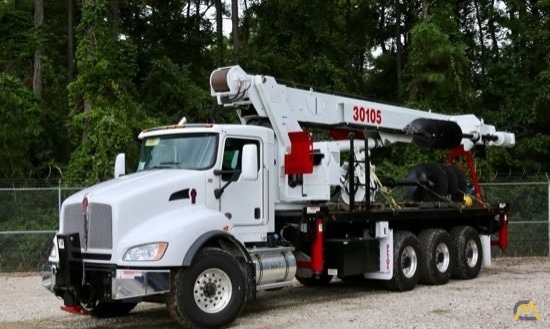

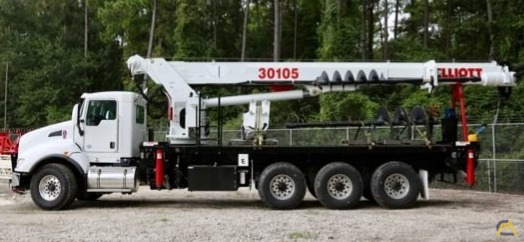

Elliott 30105F 30-Ton Boom Truck Crane For Sale or Rent

This Elliott 30105 F-D digger derrick features a 30-ton lifting capacity, a 105′ telescopic boom, and a 20,000 ft/lb hydraulic auger with wireless radio remote controls and an integrated LMI display.

TECHNICAL SPECS

LIFTING CAPACITY: 60,000 LBS / 27 215 KG

BOOM LENGTH: 105’ / 32 M

BOOM SECTIONS: 4

MAXIMUM TIP HEIGHT: 162' / 49,4 M

WINCH BARE DRUM PULL: 12,800 LBS / 5806 KG

WINCH SINGLE LINE PULL: 9,060 LBS / 4109 KG

OPERATOR CONTROLS: ROTATING STANDUP

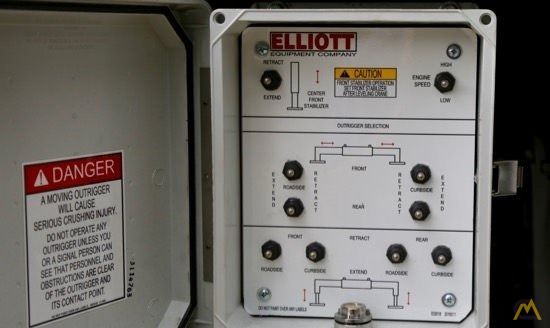

OUTRIGGER TYPE FRONT: OUT-DOWN

OUTRIGGER SPREAD FRONT: 20' / 6 M

OUTRIGGER TYPE REAR: OUT-DOWN

OUTRIGGER SPREAD REAR: 20’ / 6 M

OVERALL HEIGHT: 13' / 4 M

Standard Features

Industry-Leading Lifetime Structural Warranty

Only Elliott backs up its quality with a lifetime structural warranty on everything we build

Wide Range of Lifting Capacities and Boom Lengths for Many Applications

Elliott has one of the broadest ranges of boom lengths available for virtually every application

Patented Features that Improve Productivity & Safety

Patented features like Elliott's Standup Ride-Around Control Console improve operator comfort and productivity.

Full Length Subframe

Plated subframe minimizes twist from chassis rails providing rock solid foundation for your work

Optimized Boom Pin-Point Geometry

Maximizes low angle lifting power and greatly enhances digger performance

High Capacity Single Line Pull Winches

Let you lift more weight with fewer wraps of rope

High Capacity Two-Speed Winch

Improves control and speeds job cycle time

Heavy-Duty Turret Rotation Bearing

Larger size reduces equipment stress and provides a longer life

Ride-Around Standup Control Console

Allows operator to travel with the boom for optimal view of the work, as well as eliminating neck strain

High Speed Outrigger Setup

Elliott's high speed outriggers dramatically improve setup times.

Customized Outrigger Solutions for a Range of Chassis and Terrain

Friction-Free Jib Extension System

Rollers provide a smooth and simple extension operation

Jib Stowage on Either Side of Boom

Oversized Boom Tip Jib and Accessory Mounting 'Ears'

Makes work platform and accessory mounting more reliable and secure

Heavy Duty Boom Tip

Provides additional structural rigidity

Heavy Duty Rotation Bearings

Ensures long machine life

Solid Steel Boom Sheaves

Provide excellent reliability, shape retention and long useful life

Easy-Access Wear Pad Adjustment and Boom Servicing

Saves service time and allows for easy performance adjustments

Oversized Grease Port in Main Boom Section

Opening in main boom section make greasing internal boom sections easy and convenient

Color Coded Hydraulic Hoses

High quality steel braided hoses for long life and leak free performance. Color coded to improve serviceability and shorten downtime.

Cupholder and 12V Charger

Keep user amenities improve operator comfort and satisfaction

Piston Pump

Robust design Increases flow and pump life
