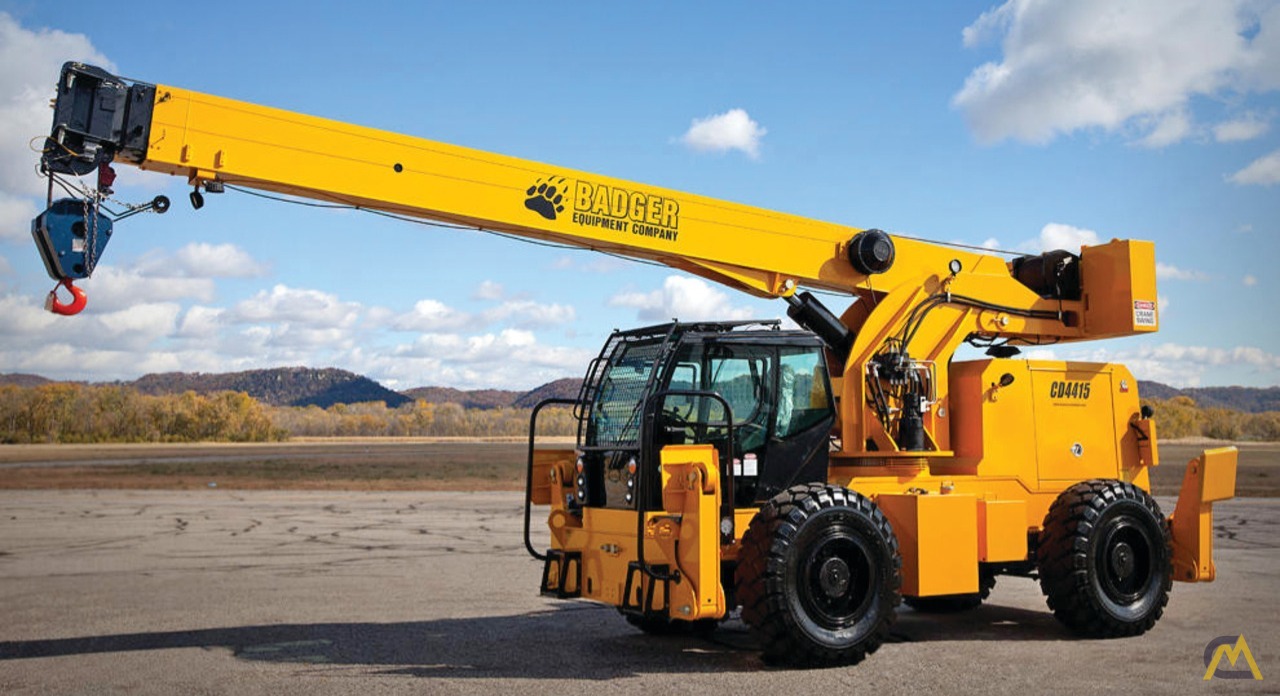

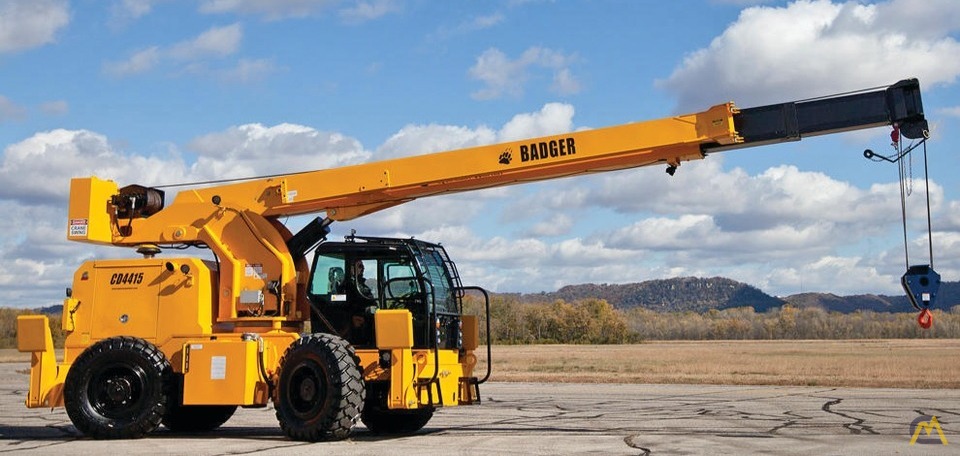

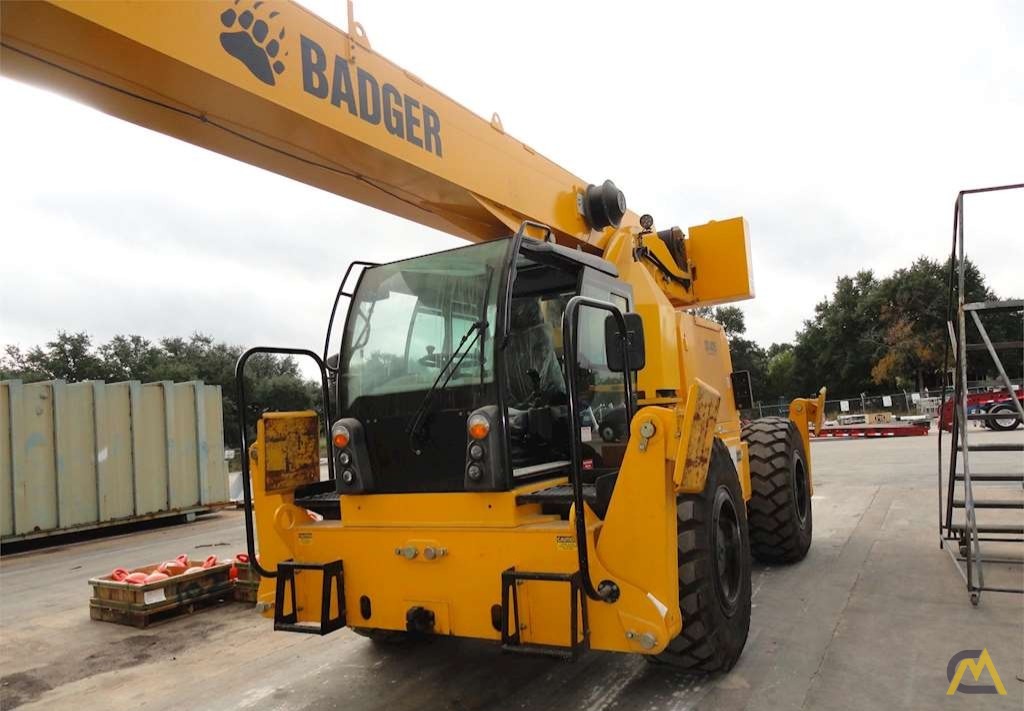

Badger CD4415 15-Ton Rough Terrain Crane For Sale

Badger CD4415

• Rated capacity: 15-Ton (13.6 mT) at 10 ft. (3.0 m) working radius
• Maximum boom length: 62.5 ft. (19 m)
• Maximum tip height: 85.5 ft. (21.6 m)
• 3-section hydraulic actuated boom
• Full-power mechanically synchronized
• Min. / Max. 24 ft. / 62.5 ft. (7.3 m / 19 m)
• Boom elevation angle range (min. / max.) 0º / 70º
• Main hoist has grooved drum storage capacity
• Hoist Single Speed (Standard)
• Hoist speed without load in 5th layer (low range / high range) 242 fpm (1.23 mps)
• Hoist speed without load in 1st layer (low range / high range) 169 fpm (.85 mps)
• Rope 6 x 19 IWRC XIPS, right regular lay, preformed, 390 ft. (119 m) long, 0.56 in. (14.3 mm) thick
• Max. line pull: 1st layer low-range, 10,750 lb. (4,886 kg
• Max. line pull permissible, 7,500 lb. (3,400 kg)
• Outrigger pad size,16 in. x 16 in. (406 mm x 406 mm)
• Area of outrigger pads, 256 in.2 (1,652 cm2)
• Cummins QSB 4.5 diesel engine, turbocharged, 4 cylinder water cooled 160 HP @2500 RPM. Electronic sensors and controls to reduce service issues and provide easy maintenance. Cummins 2-year, 2,000-hour standard engine warranty.

Optional features include:

• 1-section jib 20 ft. (6 m)
• Offset 0º Fixed
• Maximum tip height 85.5 ft. (20.1 m)
• 7T Hook and Ball 180 lb. (82 kg), Low Profile 456 lb. (207 kg),2 Sheaves 456 lb. (207 kg)
• Air conditioner
• LED work lights
• LED strobe light
• Perimeter lights
• Rearview camera
• Front windshield guard
• Falling Object Protection System (F.O.P.S.)
