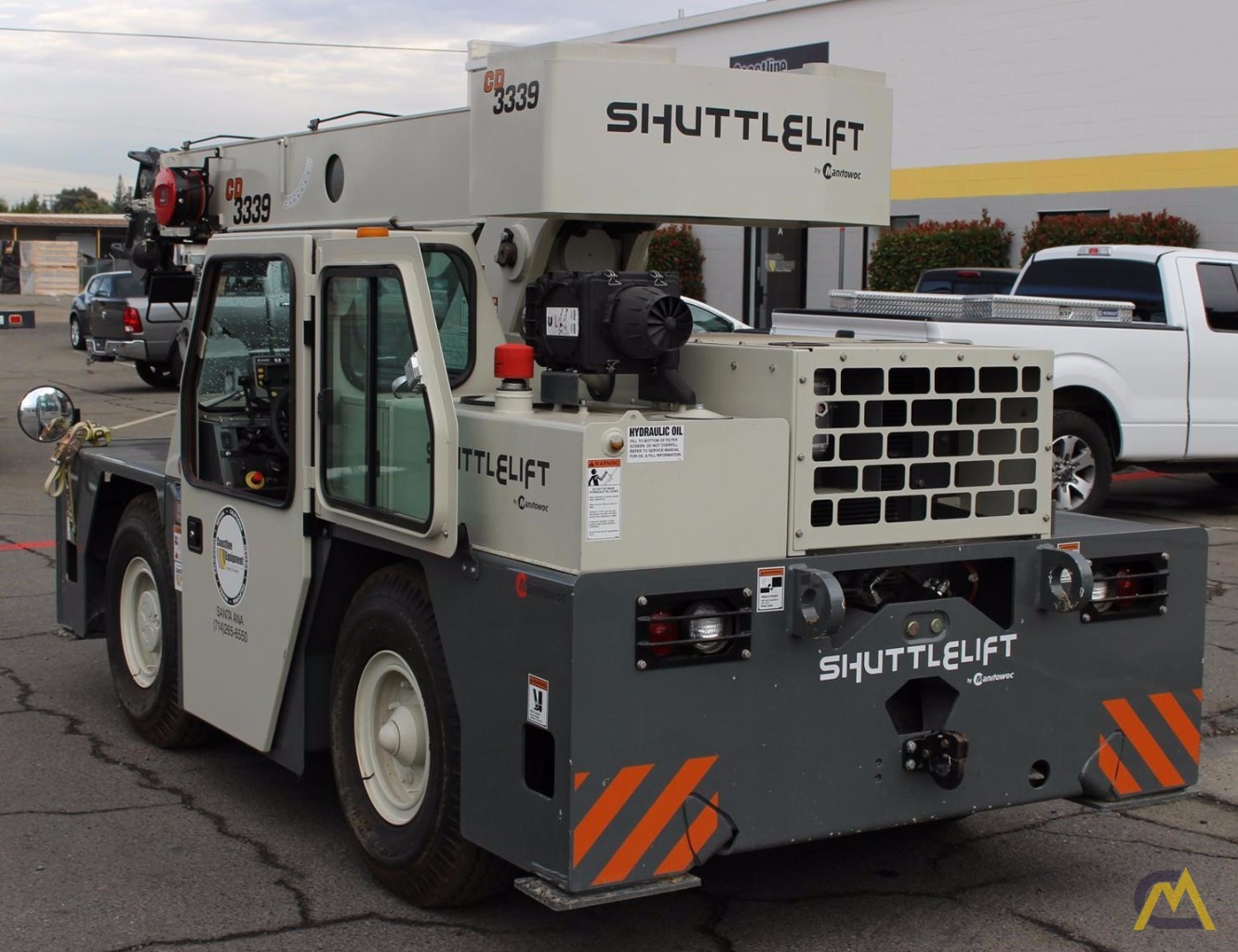

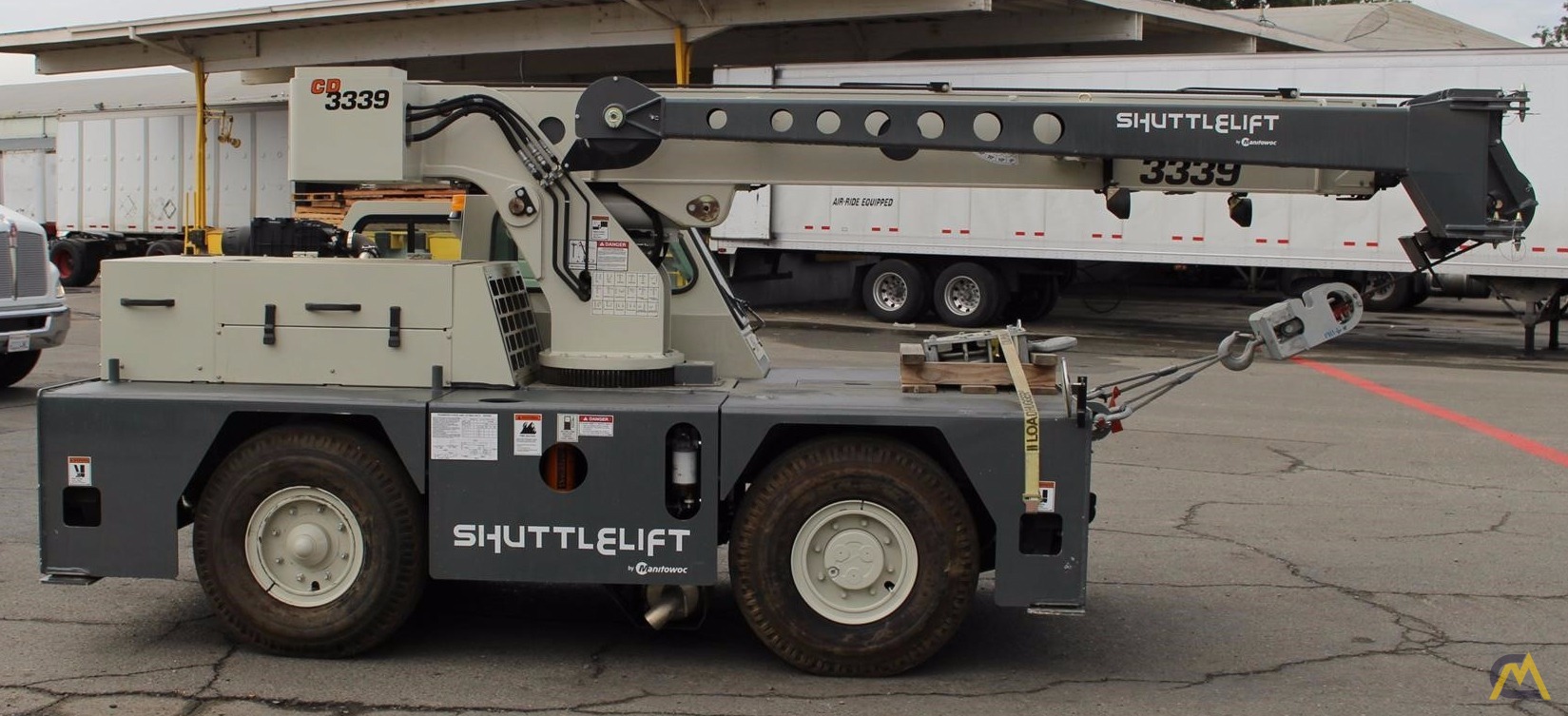

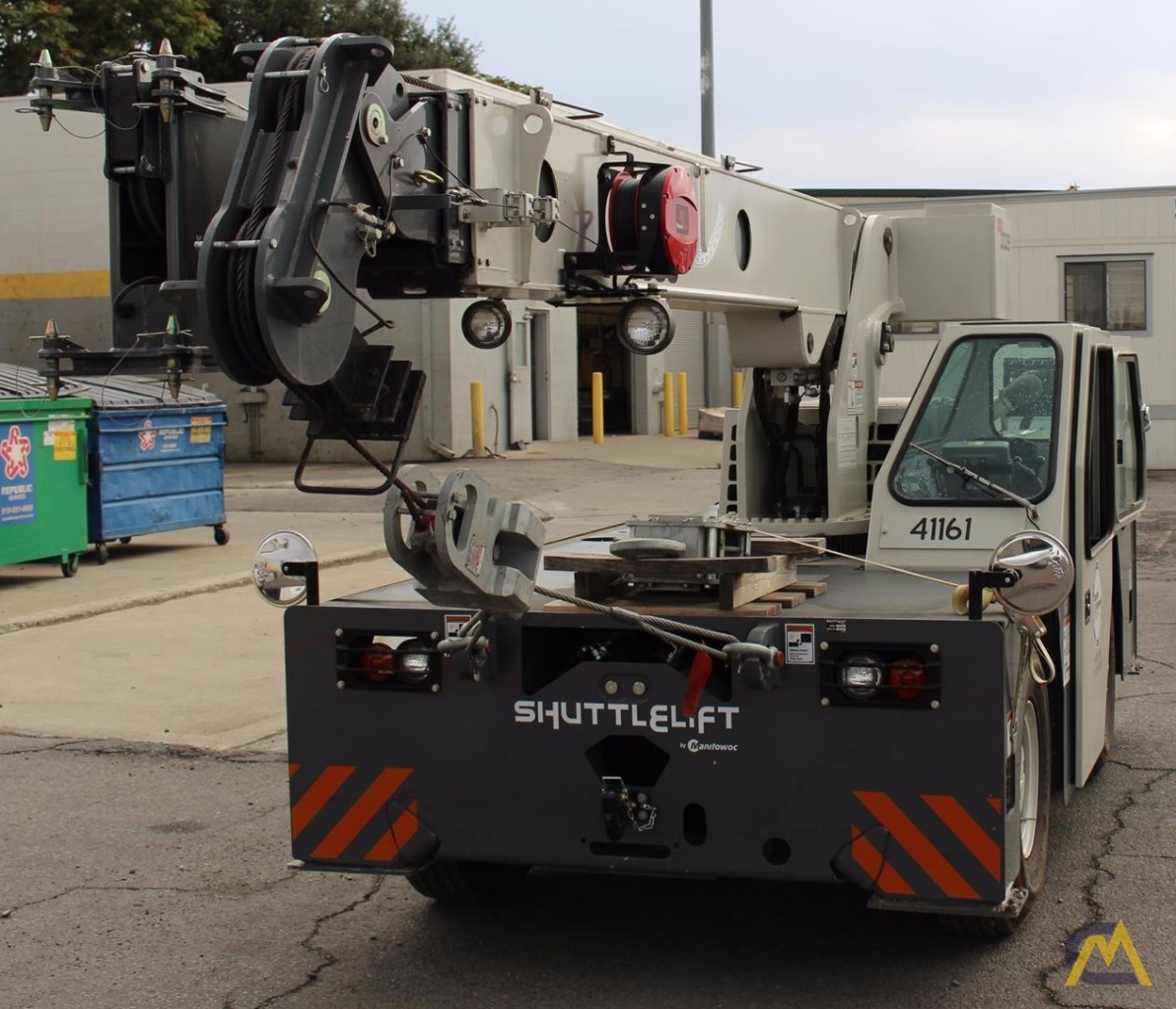

9t Shuttlelift CD3339 Carry Deck Crane For Sale or Rent

Standard features:

• Boom: 3 section full power boom with integral holding valve on telescope cylinder. Three position, pivoting boom nose.
• Boom Elevation: Single double acting hydraulic cylinder, (0 degree to 72 degree) with integral holding valve and mechanical angle indicator.
• Anti two block system: Low profile style with audio warning with auto control lever lockout system and wireless load indicating system.

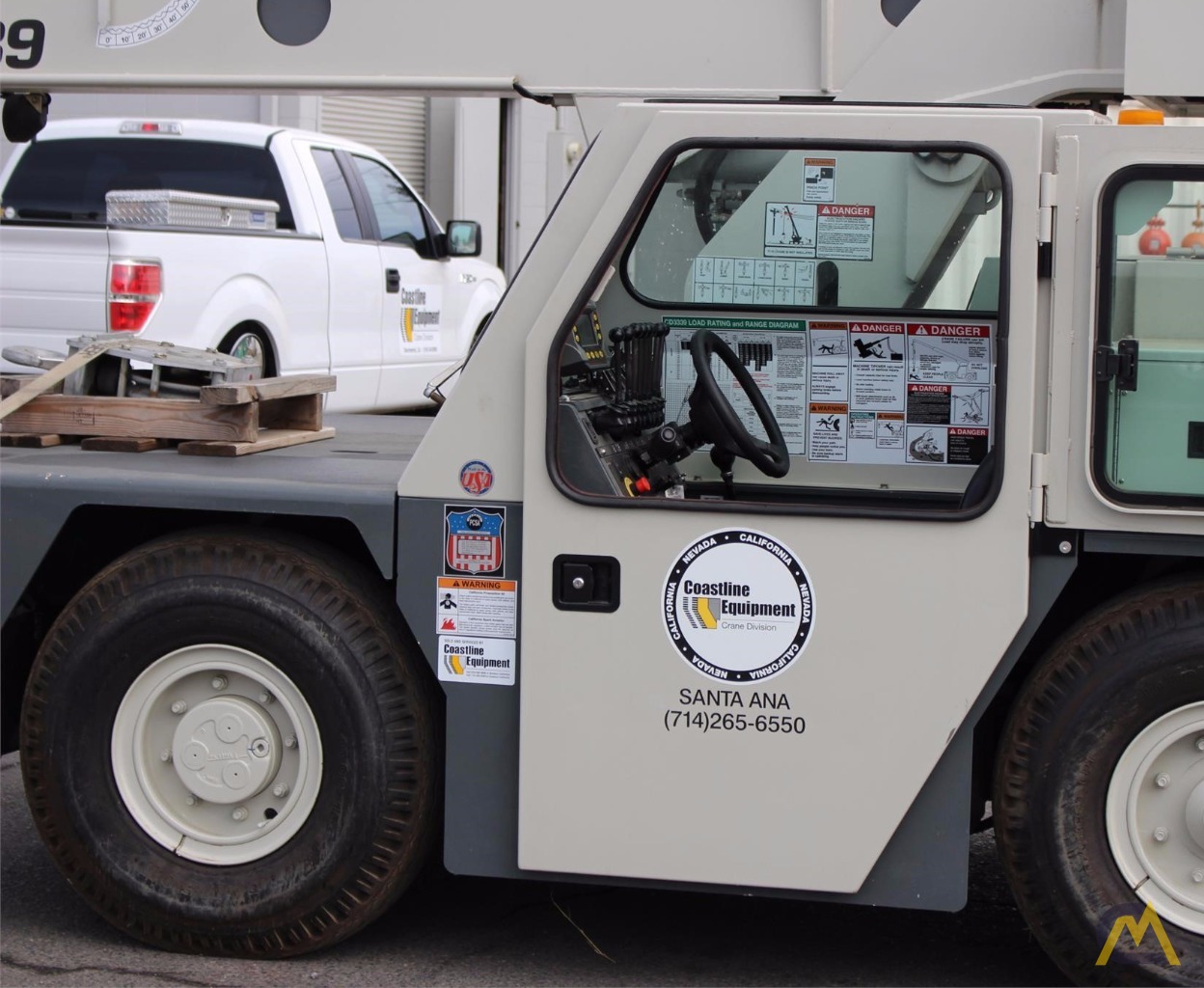

• Operators station: chassis mounted cab shell with roof safety glass durable vinyl all weather seat, dash mounted control levers, gauges and lights for engine functions, steering wheel, electric horn, fire extinguisher, sight level bubble and seat belt.
• Swing: 360 degree continuous rotation, worm and gear drive on ball bearing swing circle.
• Counterweight: One piece cast type bolted to the turntable.
• Hydraulic system: 1 variable displacement pump and 1 fixed displacement gear pump, 23.5 gal steel reservoir.
• Hoist: planetary drive main hoist. Equal speed power up and down with automatic multi disc brake.
• Wire rope: 9/16 in diameter EEIPS wire rope.
• Hook block: single sheave, “quick reeve” style hook block, 10.5 T
• Outriggers: Hydraulic oblique style at all four corners with integral check valves and integral steel outrigger pads. Synchronized controlled extension of outriggers (right side/left side), independent control of all four, outrigger motion alarm.
• Engine: choice includes; hour meter, cold start aid, 120V engine block heater, and air filter service indicator. Engine shut down feature. (TIER 4 INTERIM)
• Axles: Front: drive/steer type. Rear: wide track steer/non drive (4/2 drive). Standard 2 wheel and 4 wheel coordinated and crab steering.
• Transmission: synchromesh, 4 speeds forward 4 reverse.
• Brakes: Full hydraulic, internal multi wet disc service brakes acting on front axle’ mechanically applied disc type parking brake on transmission.
• Tires: 10.00 x 15
• Lights: Full lighting package includes front and rear chassis mounted work light, rear tail lights, turn indicators, brake and hazard.
• Miscellaneous standard Equipment: non skid deck surface, lifting and tie down lugs, backup alarm, hook block tie down.

Monthly crane bare rental available call for long term rates.
