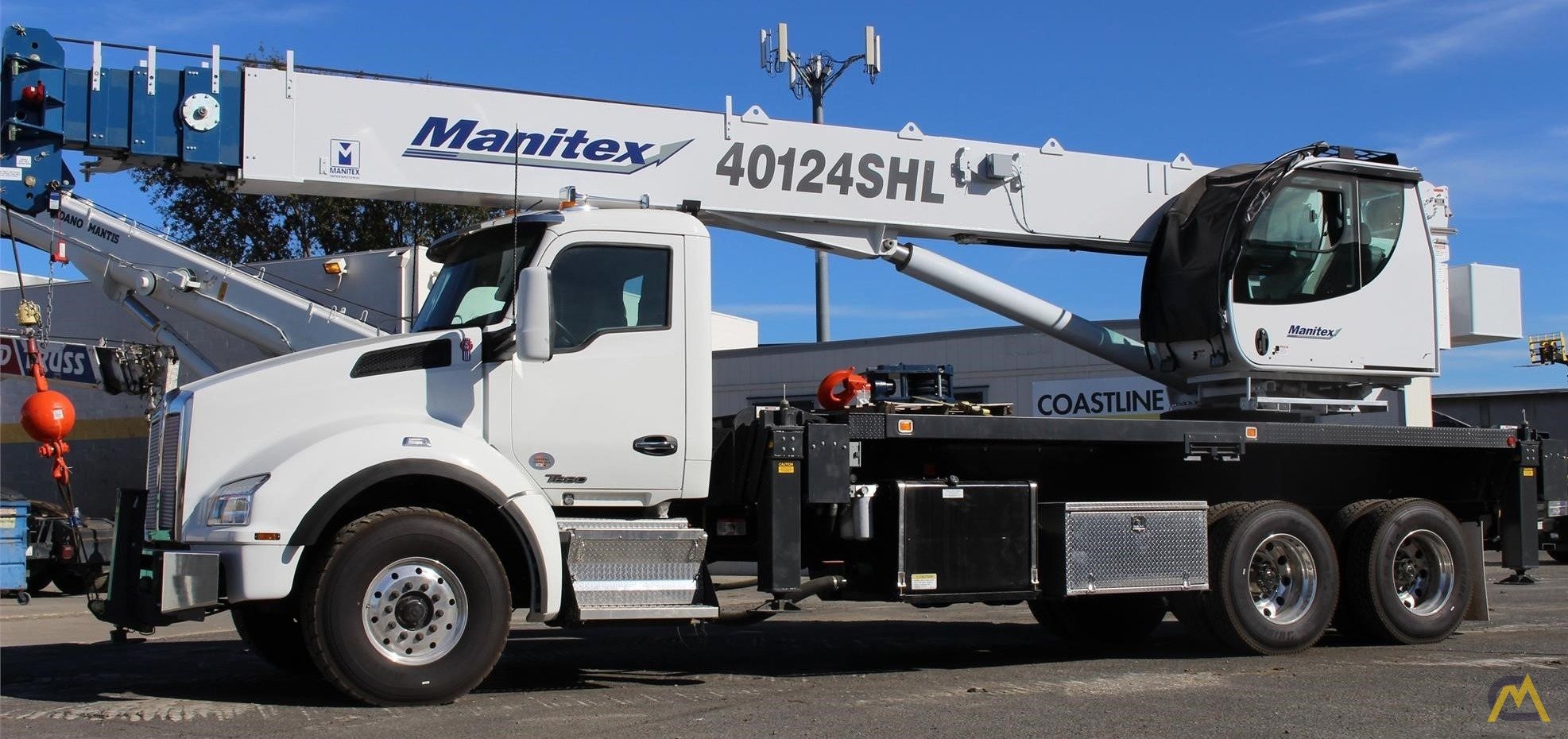

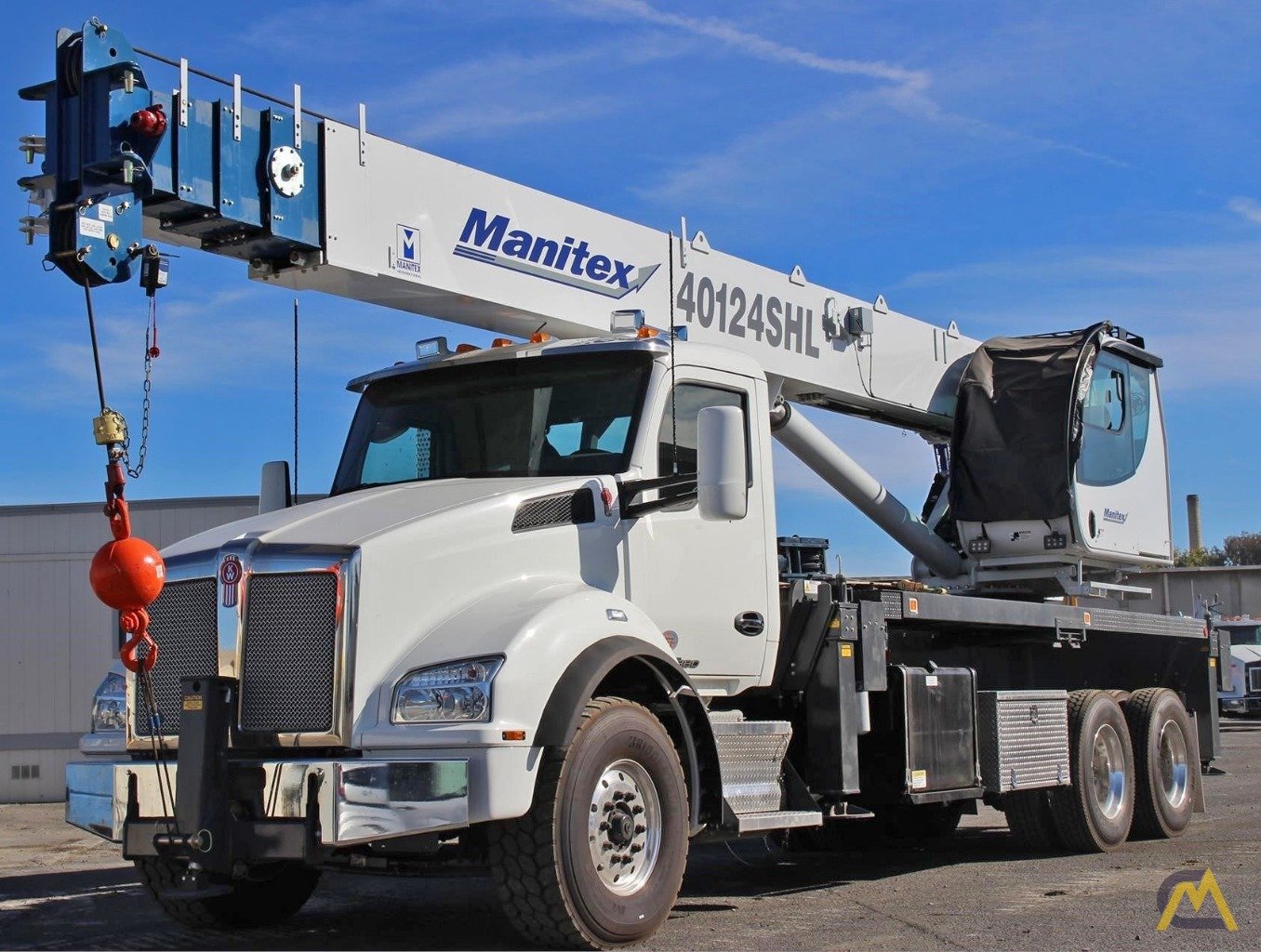

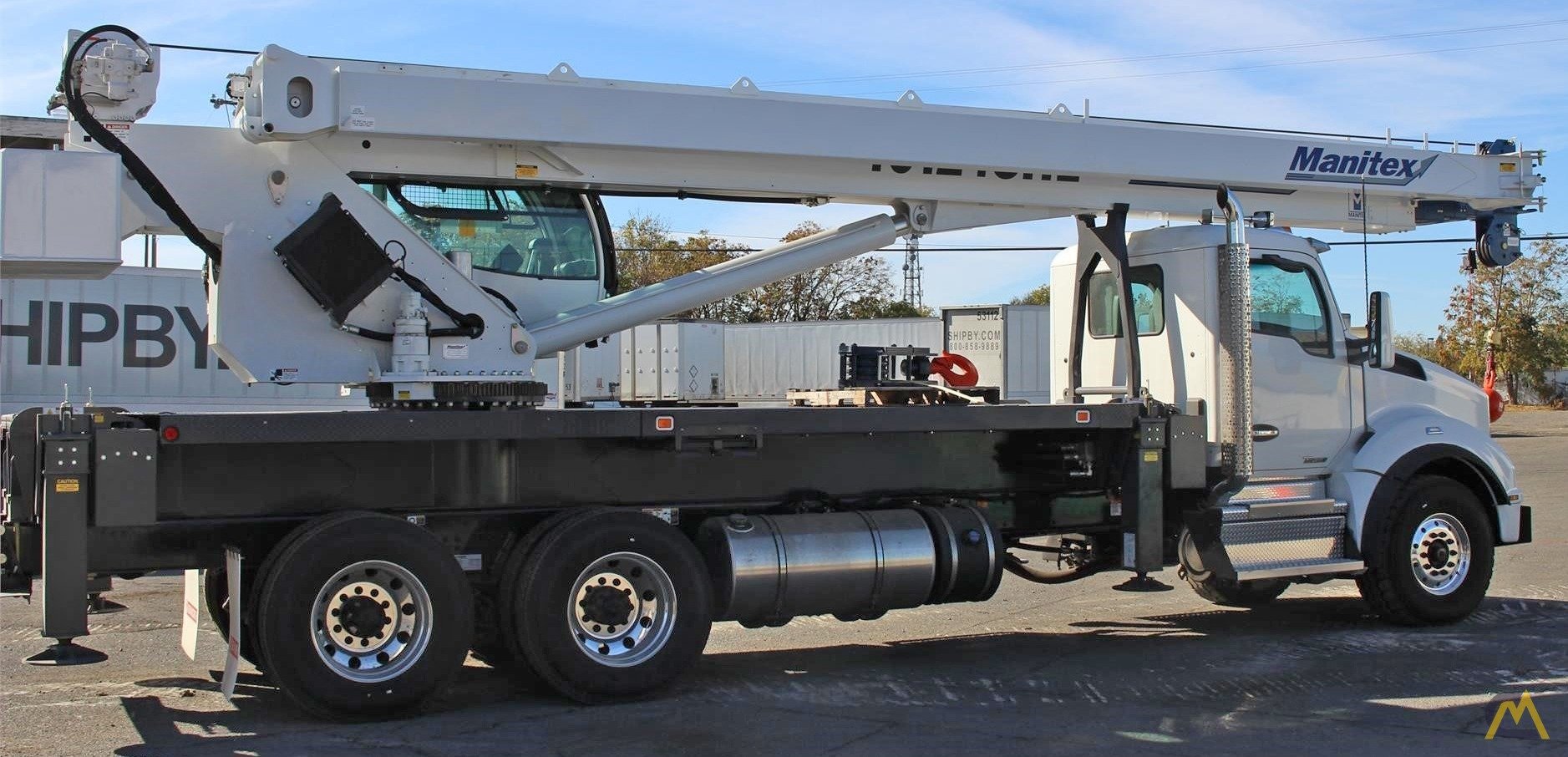

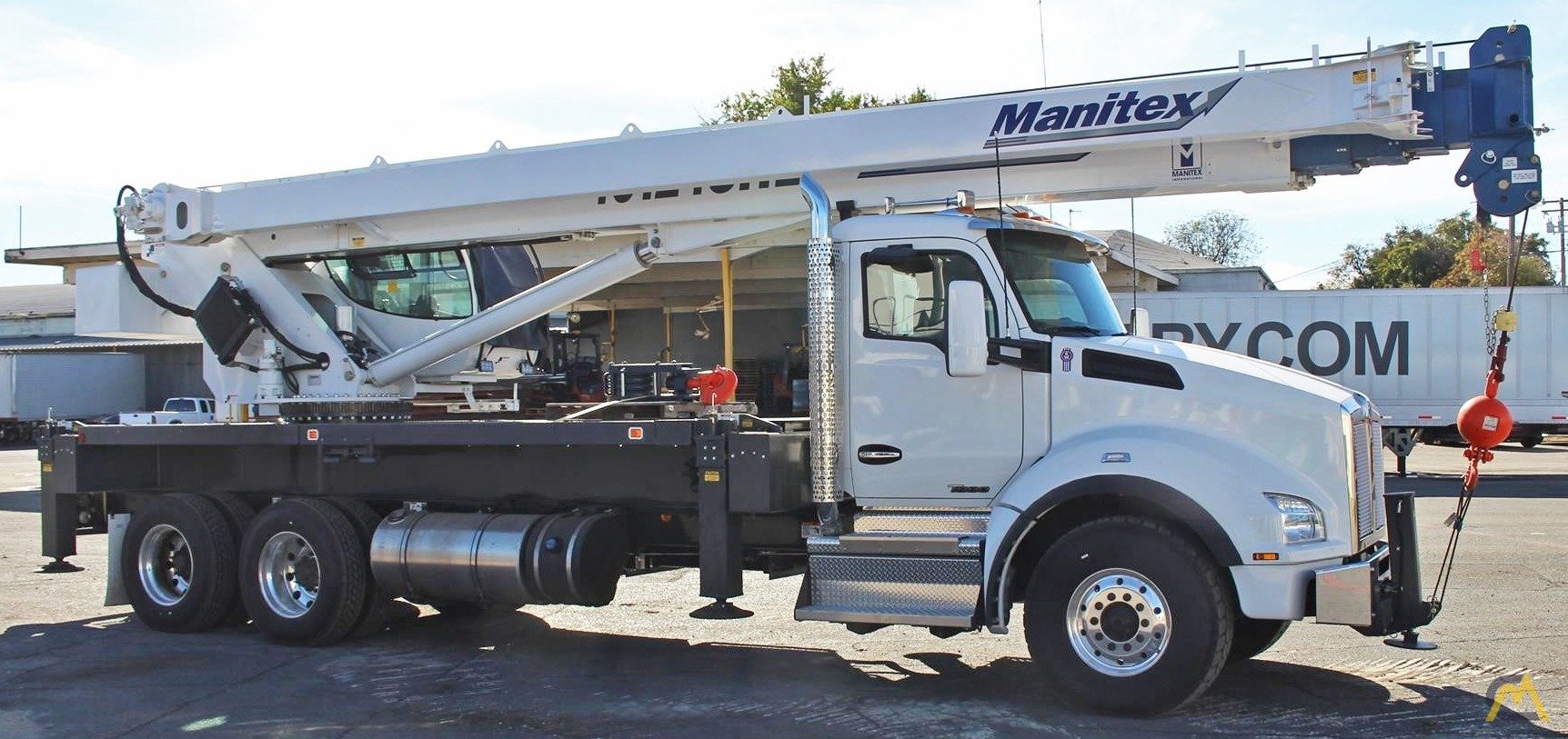

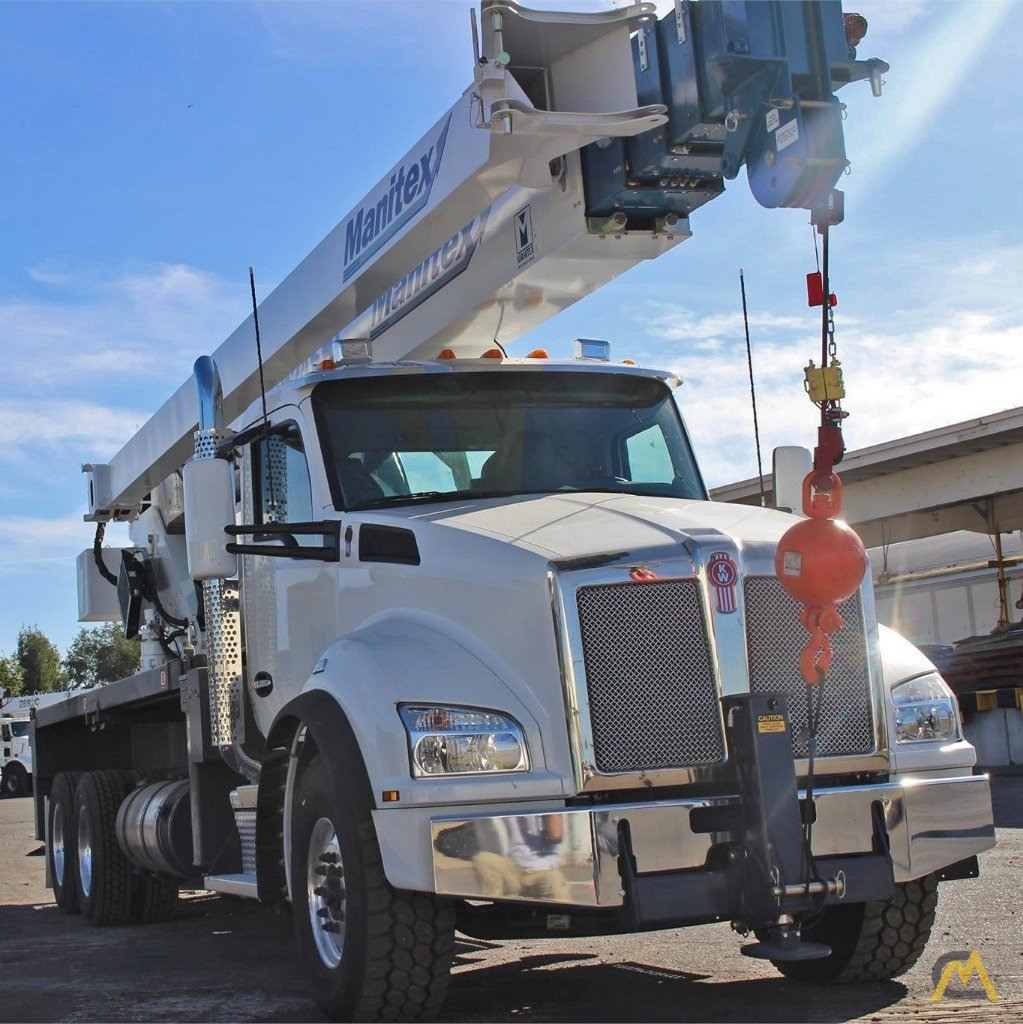

40t Manitex 40124SHL Boom Truck Crane For Sale or Rent

Standard features:
2 speed hoist with grooved drum, 7 ton hook and ball, 2-Upper and 3-Lower load sheave quick reeve boom head, Basic machine with 124’ five-section telescopic boom, External wired anti-two block with lockout, Boom hoist cylinder. System pressure gauge, 360 °area of operation. Continuous rotation. Tilting Cab w/Heater and Windshield cover & upper Hatch guard, Engine Monitoring system, Engine start/stop. Operators service/parts manuals. Boom length and angle indicators. Electronic throttle. Foot throttle, free swing, signal horn, 380’ of 5/8” rotation resistant wire rope, Audible Outrigger Motion Alarm, 115 gallon reservoir with suction strainer and ball valve, Outrigger Monitoring System for Verification only, Turret, rotation bearing and swing system, Load moment indicator-audio/visual capacity alert with shutoff, 4 out and down outriggers, 22’ spread including capacities for intermediate 13’4” and retracted 7’2” spreads, Removable Boom Rest, 2 retractable ladders for easy access to bed. 3-section Vane pump counterclockwise rotation is standard, Lower frame for 10’ flatbed, Oil Cooler, Pilot controls, bubble level, ROC solid radio remote outrigger control and control valve for FBS.

Additional Options:
• 1 piece 31’ Jib (QA) (124’ Boom Only)
• 10’ steel bed
• LMI Radio
• LMI & Counterweight
• 35 ton 3 sheave Block for 1-6 part line
• Cab Air Conditioning
• Chassis mount Hydraulic Reservoir other than standard mount (chassis or Front)
• Front center stabilizer
• Aluminum tool box (48” L x 24” W x 24” H)

MOUNTED ON 2018 KENWORTH T880
Mounted on a 2018 Kenworth T-880 tractor chassis with a Cummins X15 500 HP diesel engine, 13 Speed RTLO18913A Fuller Transmission w/oil cooler & pump, Dana Spicer 20,000 lb. front suspension, Dual Meritor RT46-160 40,000 lb. rear axle, Full set of Alcoa Aluminum Polished wheels, Single Aluminum 110 gallon fuel tank, Sloped high visibility cab, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Slate Gray w/trim Dark Slate Gray, AM/FM/WB/CD/USB and Bluetooth radio, dual air horns, dual heated mirrors, external stainless steel sunvisor, Halogen headlights, and unit is painted Imron white.
