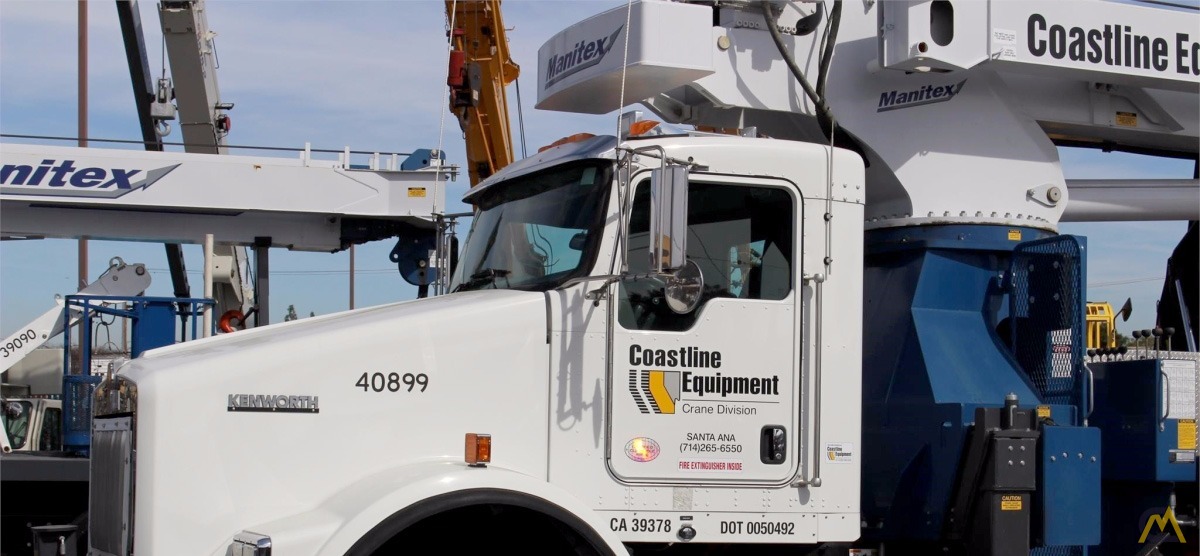

35t Manitex 35124C Boom Truck Crane SOLDLocation: Santa Ana, CA 92703, United States
This equipment has SOLD
2 speed hoist with grooved drum, 5 ton hook and ball, 3 load sheave quick reeve boom head, radio anti-two block with lockout, boom hoist cylinder, system pressure gauge, 372 degree non continuous rotation, removable boom rest, engine start/stop, operators service/parts manual, boom length and angle indicators, function overload shut off, mechanical throttle, bubble level, 4 section telescopic boom, 380’ 5/8" Rotation resistant wire rope, 100 gallon reservoir with suction strainer and ball valve, pedestal, turret rotation bearing and swing system, dual operator control stations, load moment indicator- audio/visual alert with shutoff, audible outrigger stabilizer motion alarm, out and down front outriggers w 22’ spread, out and down rear stabilizers, 3 section vane pump, sub frame for 22' bed, Signal horn, outrigger monitoring system for verification only.
• 1 piece 31’
• 22’ wood bed
• Standard mount installation
• Hydraulic reservoir
• 15 ton 1 sheave quick reeve block
• Front center stabilizer
• Control valve for operation of single stabilizer.
• Aluminum tool box (48”L x 24”W x 24” H)
• 2 person (1,000 lbs capacity) steel gravity leveled basket with hydraulic brake and manual rotation
MOUNTED ON 2014 KENWORTH T800
PACCAR MX 13 500 2013, Transmission: Fuller RTLO18913A 13 speed, Front axle rated at 22,000lbs, rear axle rated at 46,000lbs, front tires: bridge stone M844F 44.8in diameter, rear tires bridgestone M711 43.9 in diameter, 110 gallon fuel tank, Kenworth air cushion drivers seat, painted white.
Monthly crane bare rental available call for long term rates.
