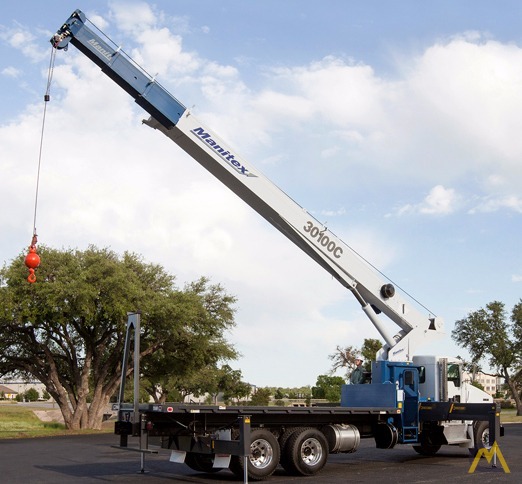

30t Manitex 30100C Boom Truck Crane For Sale
Location: Santa Ana, CA 92703, United StatesManitex Authorized Dealer
This equipment has SOLD
| Status | For Sale |
|---|---|
| Year | 2018 |
| Manufacturer | Manitex |
| Model | 30100C |
| Condition | New |
| Serial Number | 252114 |
| Stock Unit # | 72563 |
| Ton (USt) | 30.00 |
| Main Boom Length | 100' |
| Jib Extension Length | 26' - 46' |
| Transmission Type | Fuller RTO16908LL |
| Truck Chassis Make | Peterbilt |
| Engine | Cummins ISX12 |
| Horse Power/kW | 425 |
| Category | Boom Trucks |
| Sub Category | Stand Up |
| Show More | |
| Hide |
DESCRIPTION
Standard features:
2 speed hoist with grooved drum, 7 ton hook and ball, 3-load sheave quick reeve boom head, 100’ four section telescopic boom A-Frame, Externally wired anti-two block with lockout, Boom hoist cylinder, System pressure gauge, 372° Non Continuous rotation, Removable boom rest, Engine start/stop, Operators service/parts manuals, Boom length and angle indicators, Electronic Foot throttle, Signal Horn, Bubble level, Beverage Cup Holders, 335’of 9/16” rotation resistant wire rope, 70 gallon reservoir with suction strainer and ball valve, Pedestal, Swept Back Turret, rotation bearing and swing system, Dual Operator Control Stations, Can Bus Load moment indicator w/Internal length cable-audio/visual capacity alert with shutoff, Hermetically sealed Printed Circuit Board Electrical System w/LED Circuit Status Indicators, Audible Outrigger/Stabilizer Motion Alarm, A-Frame Link Type Front Outriggers (22’4” Spread Width), 3-section Hydraulic Pump-Counterclockwise Rotation is standard, Outrigger monitoring system.
Additional Options:
• 2 Piece 26’ – 46’ Jib (G/RS)
• 21’ HH Steel Bed x 102”
• Chassis Mounted Reservoir
• 15 ton 1-Sheave Quick Reeve Block
• Front center stabilizer
• Control valve for operation of single stabilizer, required w/FBS
• Aluminum tool box (48” L x 24” W x 24” H) Chassis Mount
MOUNTED ON 2018 PETERBILT 567
Mounted on a 2018 Peterbilt 567 tractor chassis with a Cummins ISX12 425 HP diesel engine, 10-Speed RTO16908LL Fuller Transmission includes external oil-to-water cooler and internal pump, Dana Spicer 20,000 lb. front suspension, Dana Spicer DSH40 40,000 lb. rear axle, Full set of Alcoa Aluminum Polished wheels, Single Aluminum 110 gallon fuel tank, Heater and air conditioner with dedicated side window defrosters, full instrumentation, full power windows, interior color Sterling Gray, AM/FM/WB/USB/MP3/CD with Bluetooth radio, single air horn mounted under cab, dual heated mirrors, exterior stainless steel sunvisor, Projector Module Pod headlights, and unit is painted Axalta white.
