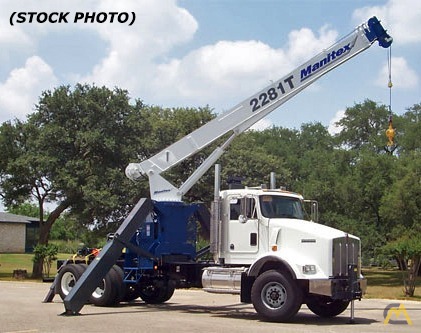

22t Manitex 2281T Boom Truck Crane For Sale
Location: Santa Ana, CA, USAManitex Authorized Dealer
This equipment has SOLD
Status | For Sale |
---|---|
Year | 2018 |
Manufacturer | Manitex |
Model | 2281T |
Condition | New |
Stock Unit # | 76843 |
Ton (USt) | 22.00 |
Main Boom Length | 81' |
Base Weight (GVW) | 68000 |
Transmission Type | Manual |
Truck Chassis Make | Kenworth |
Engine | Cummins X15 Diesel |
Horse Power/kW | 500 |
Category | Boom Trucks |
Sub Category | Tractor Mount |
Show More | |
Hide |
DESCRIPTION
Standard features:
81’ Four-Section Telescopic Boom with LMI, 2-speed Hoist w/ Grooved Drum, 5 Ton Hook and Ball, 3-Laod Sheave Quick Reeve Boom Head, Externally Wired Anti-Two Block w/ Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non-continuous Rotation, Dual Operator Control Stations, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Throttle, Foot Throttle, 300’ of 9/16” EIPS IWRC Wire Rope, 70 Gallon Reservoir w/ Section Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Load Moment Indicator – Audio/Visual Alert w/ Shutoff, Audible Outrigger Motion Alarm, A-Frame Outriggers (21’6” Spread), A-Frame Rear Stabilizers, Subframe for 22’ Bed, 3-Section Hydraulic Pump – Counterclockwise is standard, Signal Horn, Outrigger Monitor System for Verification Only.
Additional Options:
- Radio Anti-Two Block
- Tractor Mount Rear A-Frame Stabilizers in lieu of standard
- Tractor Mount Subframe in lieu of standard
- Chassis Mounted Hydraulic Reservoir in lieu of standard – Required with Tractor Mount
- Boom Rest for Tractor Mount, Behind the Cab
- Rotation Resistant Rope in lieu of standard
- 15 ton 1-Sheave Quick Reeve Block – 9/16 Rope
- Front Center Stabilizer
- Control valve for operation of single stabilizer, Required w/ FBS
- Aluminum tool Box (48” L x 24” W x 24” H) Chassis Mount
MOUNTED ON 2018 KENWORTH T880
Mounted on a 2018 Kenworth T880 tractor chassis with a Cummins X15 500HP diesel engine, 13-speed RTLO18913A Fuller Transmission w/oil cooler & pump, Dana Spicer 22,000 lb. front suspension, Dual Meritor RT46-106 46,000 lb. rear axle, Rear Axle Ratio – 4.10, Full set of Alcoa polished aluminum wheels, Holland FW35M836XL00 fifth wheel, Single Aluminum 90 gallon fuel tank, Sloped high visibility cab, Heater and air conditioner with defrosters, full instrumentation, Full power windows, interior color Slate gray, AM/FM/WB/USB Bluetooth radio, Dual air horns, dual heated mirrors, external stainless steel sunvisor, Halogen headlights, and unit is painted Imron Elite White.
