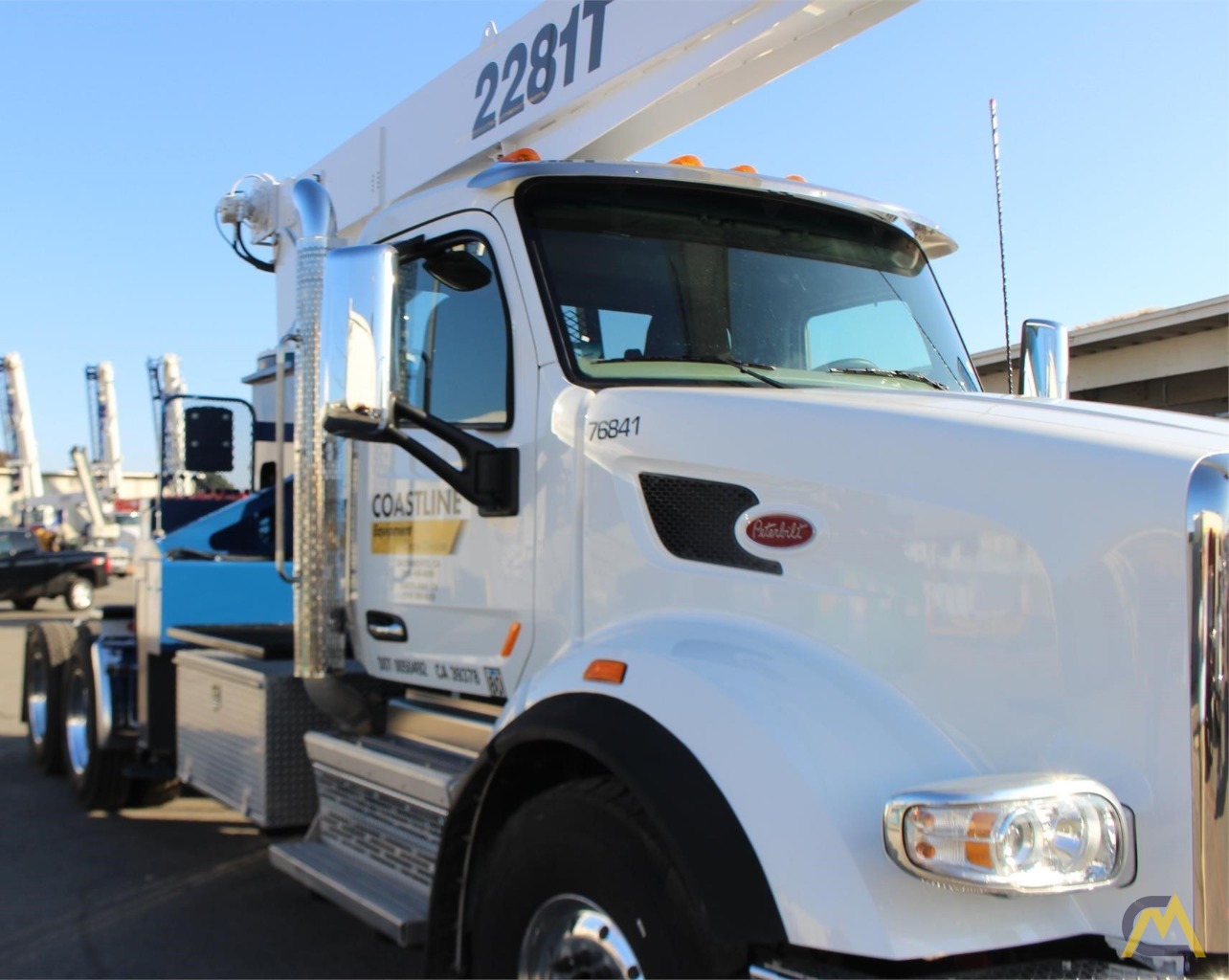

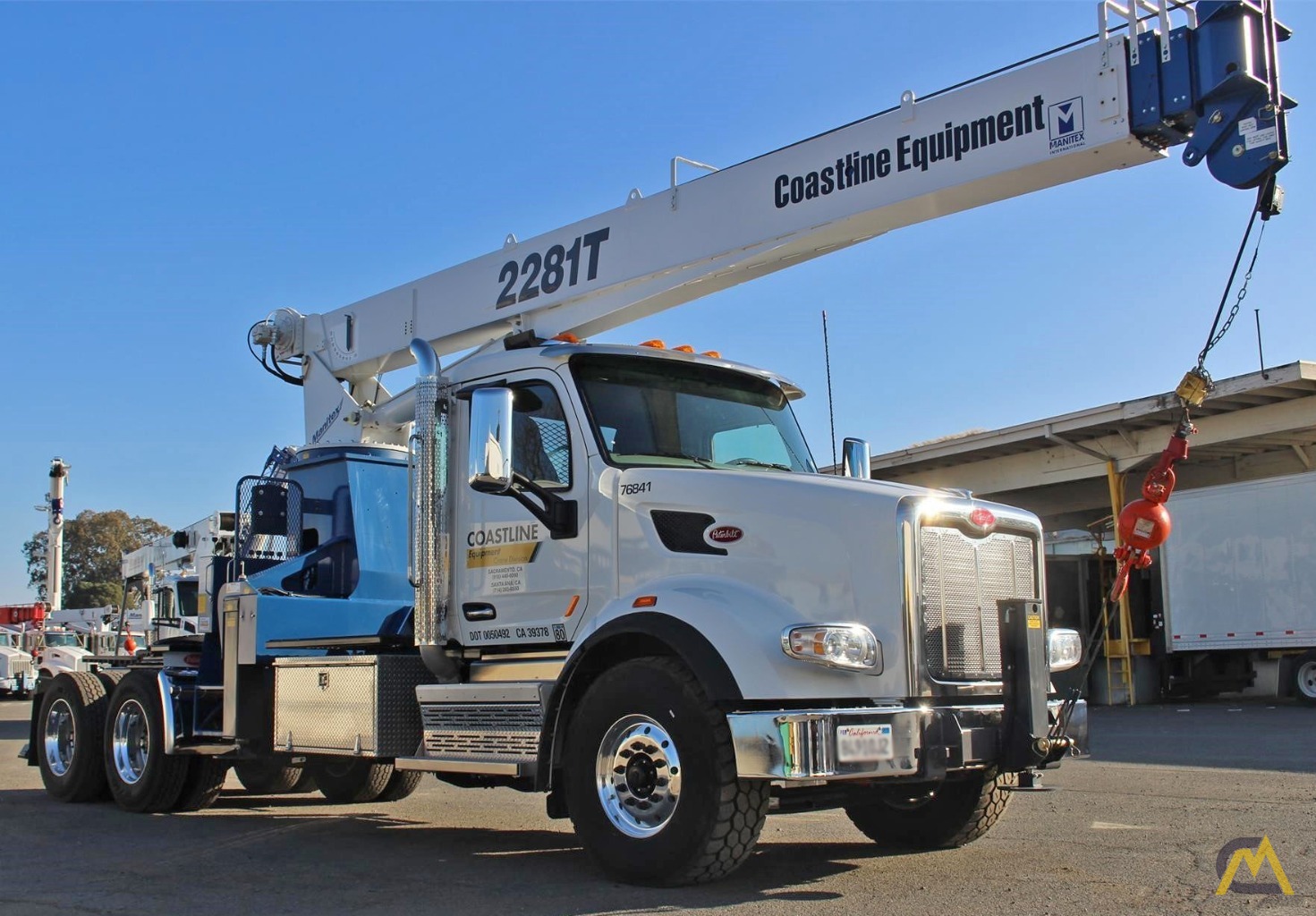

22t Manitex 2281T Boom Truck Crane For Sale
Location: Sacramento, CA, USAManitex Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
| Status | For Sale |
|---|---|
| Year | 2018 |
| Manufacturer | Manitex |
| Model | 2281T |
| Condition | New |
| Stock Unit # | 76840 |
| Ton (USt) | 22.00 |
| Main Boom Length | 81' |
| Jib Extension Length | 23.7-40.7 |
| Base Weight (GVW) | 68000 |
| Transmission Type | Manual |
| Truck Chassis Make | Peterbilt |
| Engine | Cummins X15 |
| Horse Power/kW | 525 |
| Category | Boom Trucks |
| Sub Category | Tractor Mount |
| Show More | |
| Hide |
DESCRIPTION
Standard features:
81’ Four-Section Telescopic Boom with LMI, 2-speed Hoist w/ Grooved Drum, 5 Ton Hook and Ball, 3-Laod Sheave Quick Reeve Boom Head, Externally Wired Anti-Two Block w/ Lockout, Boom Hoist Cylinder, System Pressure Gauge, 372° Non-continuous Rotation, Dual Operator Control Stations, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Throttle, Foot Throttle, 300’ of 9/16” EIPS IWRC Wire Rope, 70 Gallon Reservoir w/ Section Strainer & Ball Valve, Pedestal, Turret, Rotation Bearing & Swing System, Load Moment Indicator – Audio/Visual Alert w/Shutoff, Audible Outrigger Motion Alarm, A-Frame Outriggers (21’6” Spread), A-Frame Rear Stabilizers, Subframe for 22’ Bed, 3-Section Hydraulic Pump – Counterclockwise is standard, Signal Horn, Outrigger Monitor System for Verification Only.
Additional Options:
- Radio Anti-Two Block
- Tractor Mount Rear A-Frame Stabilizers in lieu of standard
- Tractor Mount Subframe in lieu of standard
- Chassis Mounted Hydraulic Reservoir in lieu of standard – Required with Tractor Mount
- Boom Rest for Tractor Mount, Behind the Cab
- Rotation Resistant Rope in lieu of standard
- 15 ton 1-Sheave Quick Reeve Block – 9/16 Rope
- Front Center Stabilizer
- Control valve for operation of single stabilizer, Required w/FBS
- Aluminum tool Box (48” L x 24” W x 24” H) Chassis Mount
- Out and Down Outriggers in lieu of standard A-Frame
MOUNTED ON 2018 PETERBILT 567
Mounted on a 2018 Peterbilt 567 tractor chassis with a Cummins X15 525HP diesel engine, 13-speed RTLO18913A Eaton Transmission w/oil cooler & pump, Dana Spicer 22,000 lb. front suspension, Meritor RT46-106 46,000 lb. rear axle, Full set of Alcoa polished aluminum wheels, Holland FW35 fifth wheel, Single Aluminum 100 gallon fuel tank, Sloped high visibility cab, Heater and air conditioner with defrosters, full instrumentation, Full power windows, interior color Sterling gray, AM/FM/WB/USB/CD Bluetooth radio, air horn mounted under cab, dual heated mirrors, external stainless steel sunvisor, Halogen headlights, and unit is painted Axalta Two Stage White, VIN: 1XPCD40X3JD496135
