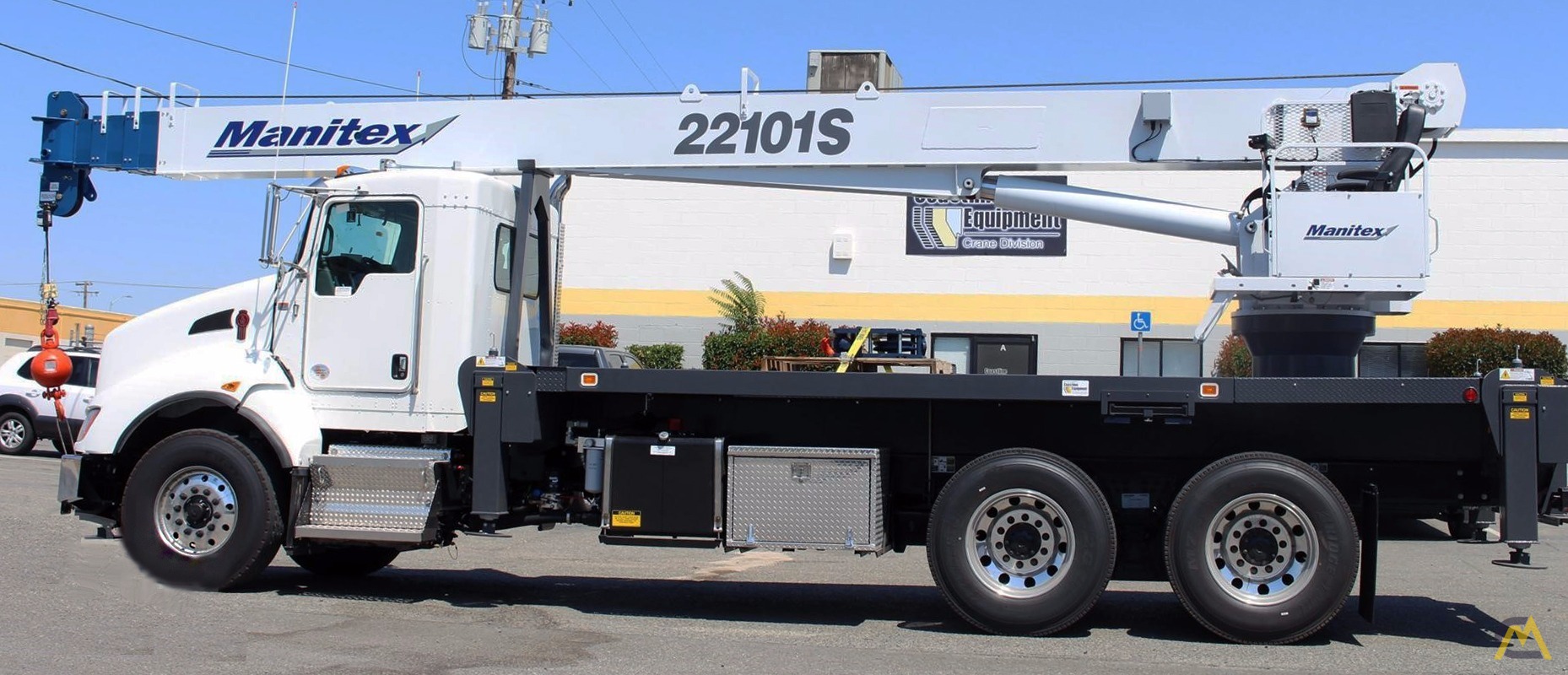

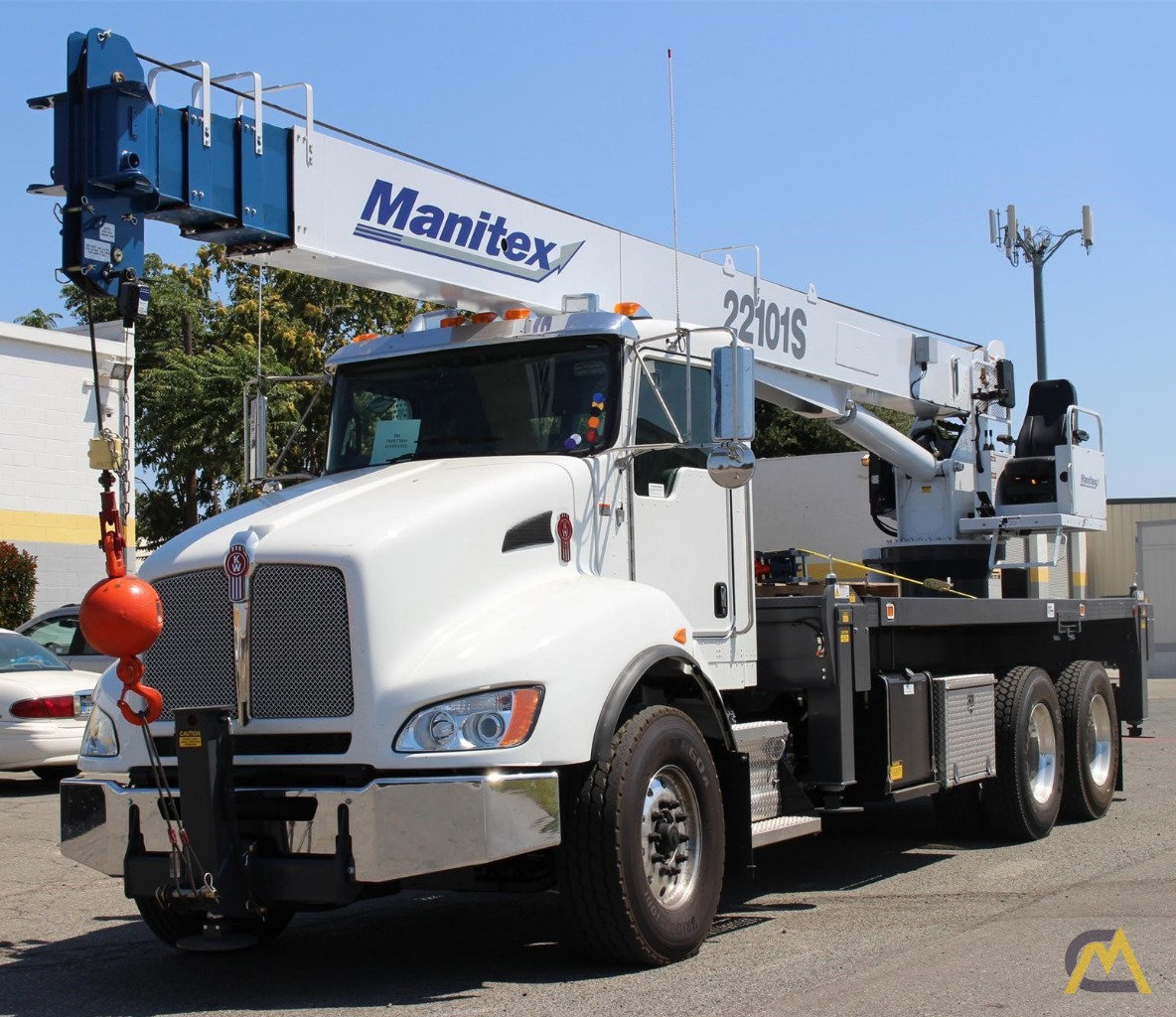

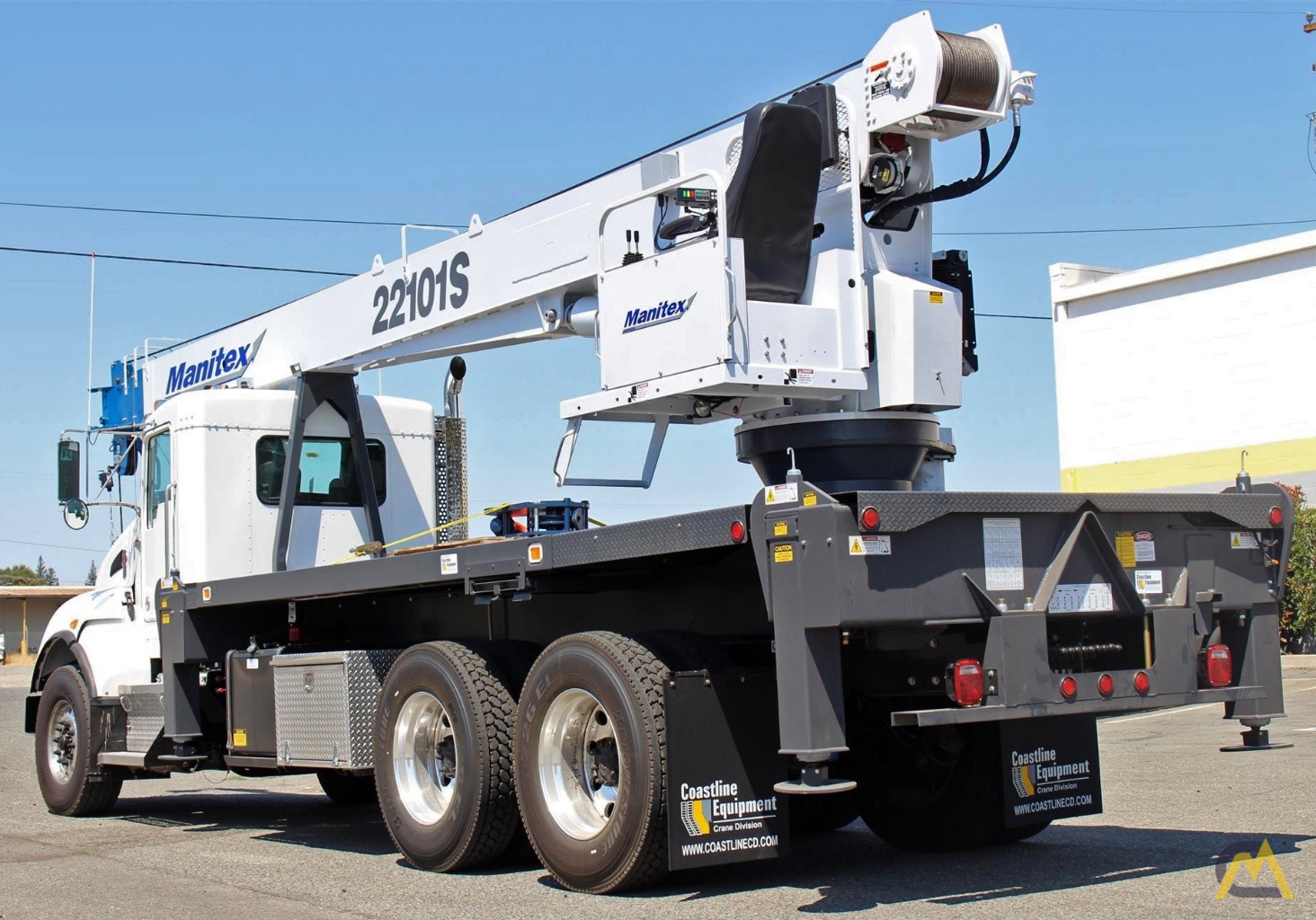

22t Manitex 22101S Boom Truck Crane For Sale or Rent

NEW MANITEX 22101S

Standard features:

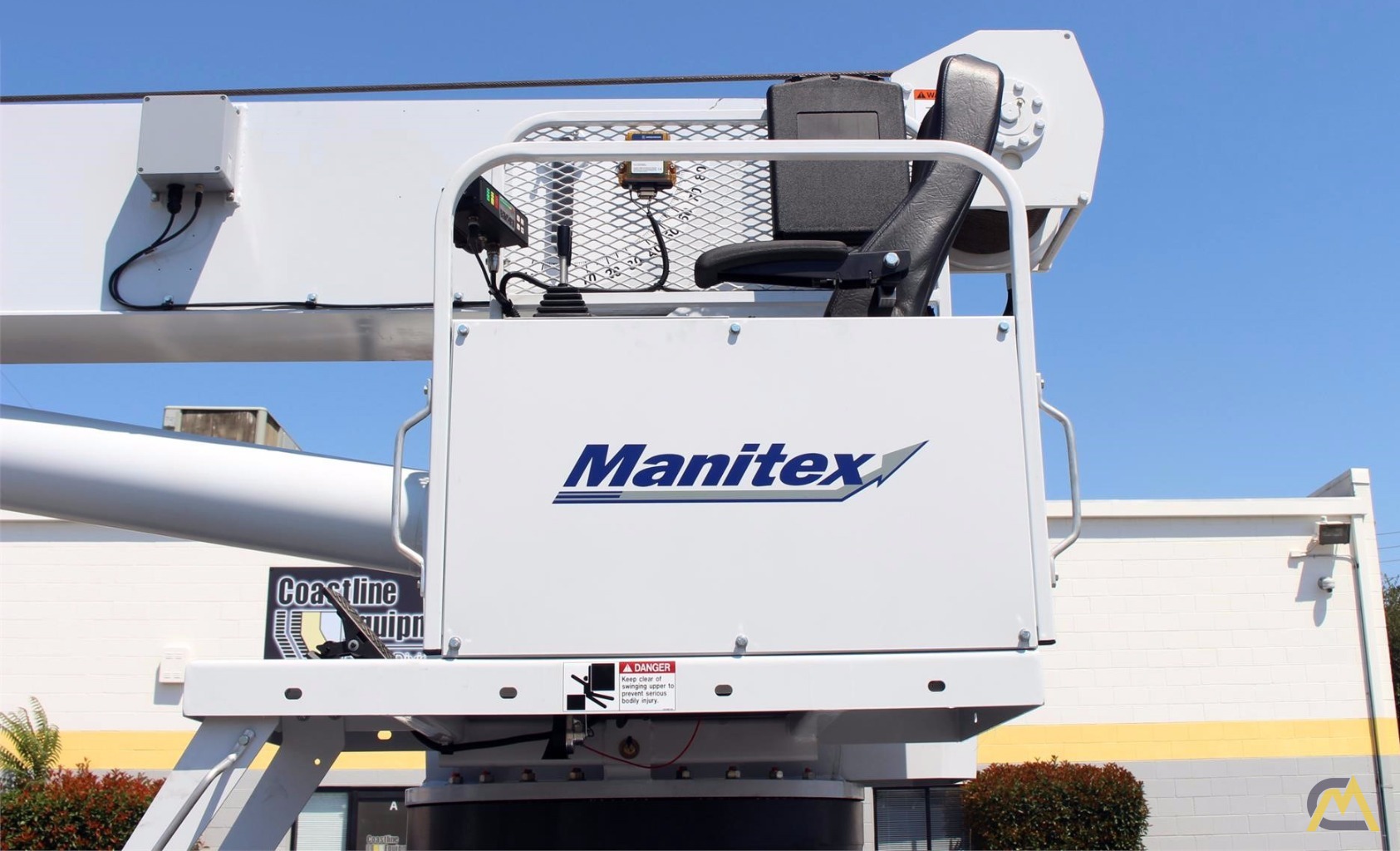

3 or 4 section Telescopic Boom w/Quick Reeve Boom Head, Boom Hoist Cylinder, 3-Load Sheave Quick Reeve Boom Head, Anti-Two Block w/Lockout, Pilot Controls, System Pressure Gauge, 360° Area of Operation, Continuous Rotation, Ride-around Operator Station with Seat, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Throttle, Lower Frame for 13’ (3.95m) Flatbed, Outrigger Monitoring System for Verification Only, 7 Ton (6.4mt) Hook and Ball, 300’ of 9/16” (14.3mm) EIPS IWRC Wire Rope, 70 Gallon (265 liter) Reservoir w/Suction Strainer & Ball Valve, Turret, Rotation Bearing & Swing System, Load Moment Indicator-Audio/Visual Alert w/Shutoff, Audible Outrigger Motion Alarm, 4 Out-and-down Outriggers, 19’9” (5.99m) Spread including Capacities for Intermediate 13’6”(4.12m) and Retracted 7’3”(2.21m) Spreads, 2 Retractable Ladders for Easy Access to Bed, 3-Section Hydraulic Gear Pump-Counterclockwise Rotation Standard, Signal Horn, Oil Cooler

Additional Options:
• 101’ Four-Section Telescopic Boom-Radio ATB – Tandem Axel
• 13’ Steel Bed
• Chassis Mounted Hydraulic Reservoir in lieu of standard
• Rotation Resistant Rope in lieu of Standard
• 15 ton1-Sheave Quick Reeve Block 9/16 Rope
• Front Center Stabilizer
• Control Valve for operation of single stabilizer, Required W/FBS
• Aluminum tool box (48”L x 24”W x 24”H)-chassis mount

MOUNTED ON 2017 KENWORTH T440
PX-9 370 2013, Allison 30000RDS 6-speed, Front Axle 20K, Rear Axle 40K, Front tires Bridgestone M860A 315/80R22.5 20PR, Rear Tires Bridgestone M726EL 11R24.5 14PR, Fuel Tank 90 US gallons
