DESCRIPTION

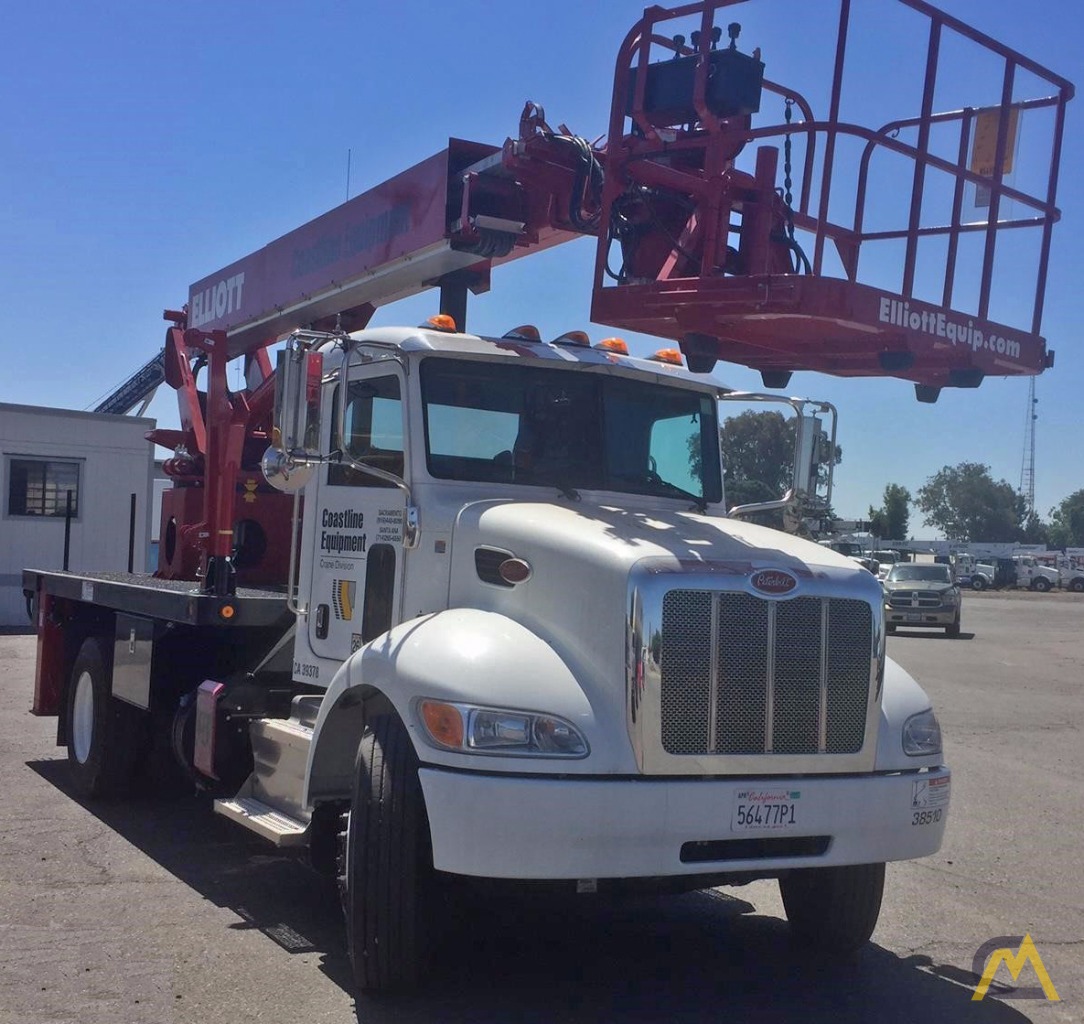

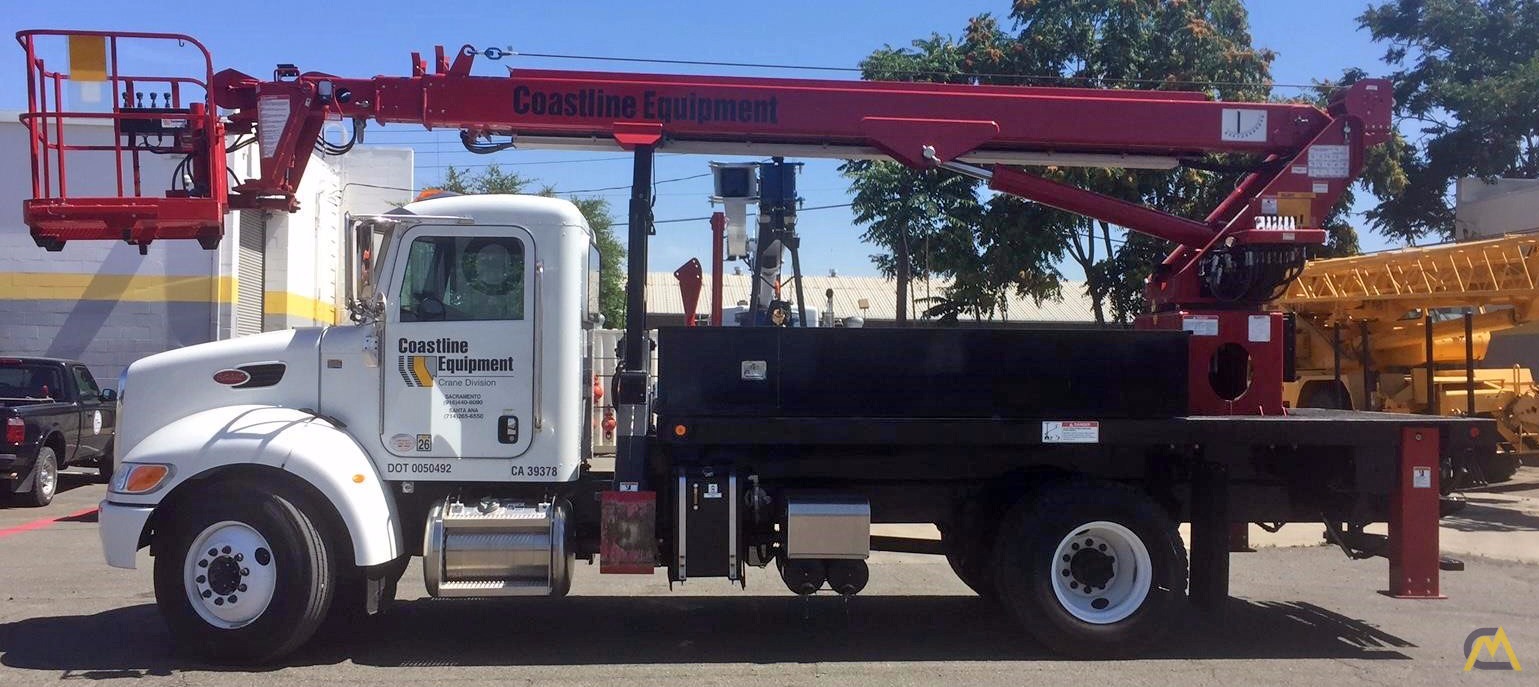

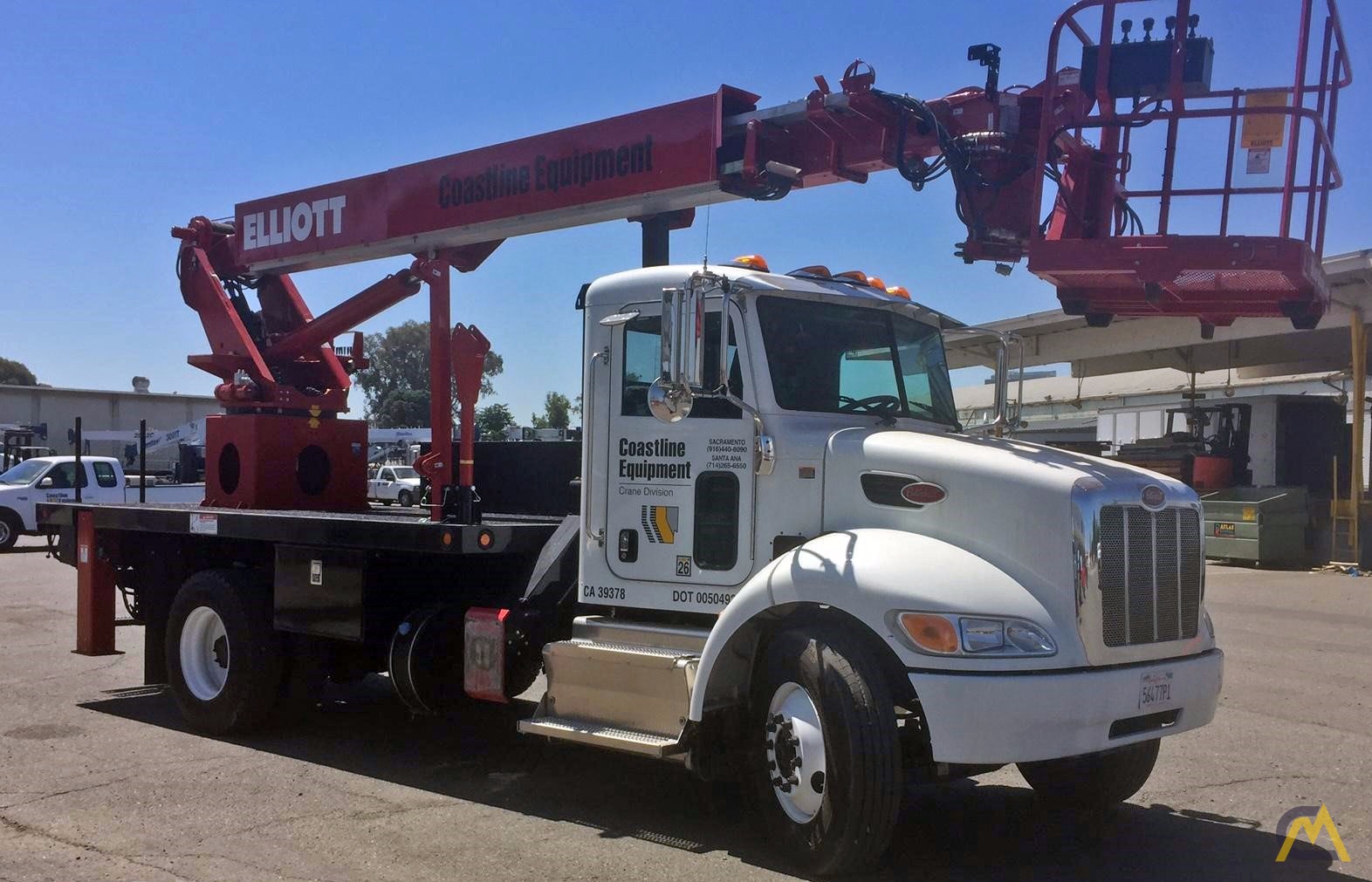

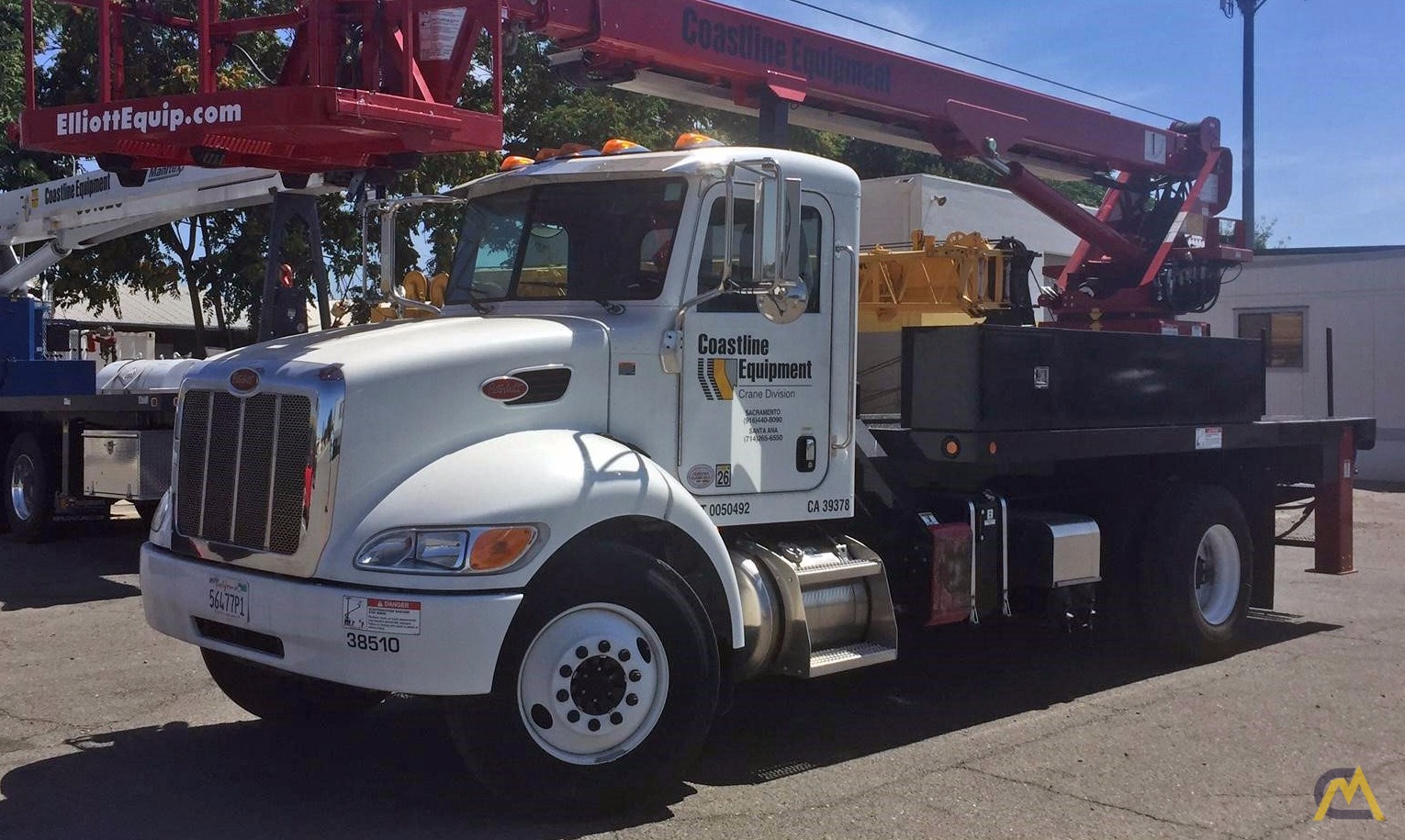

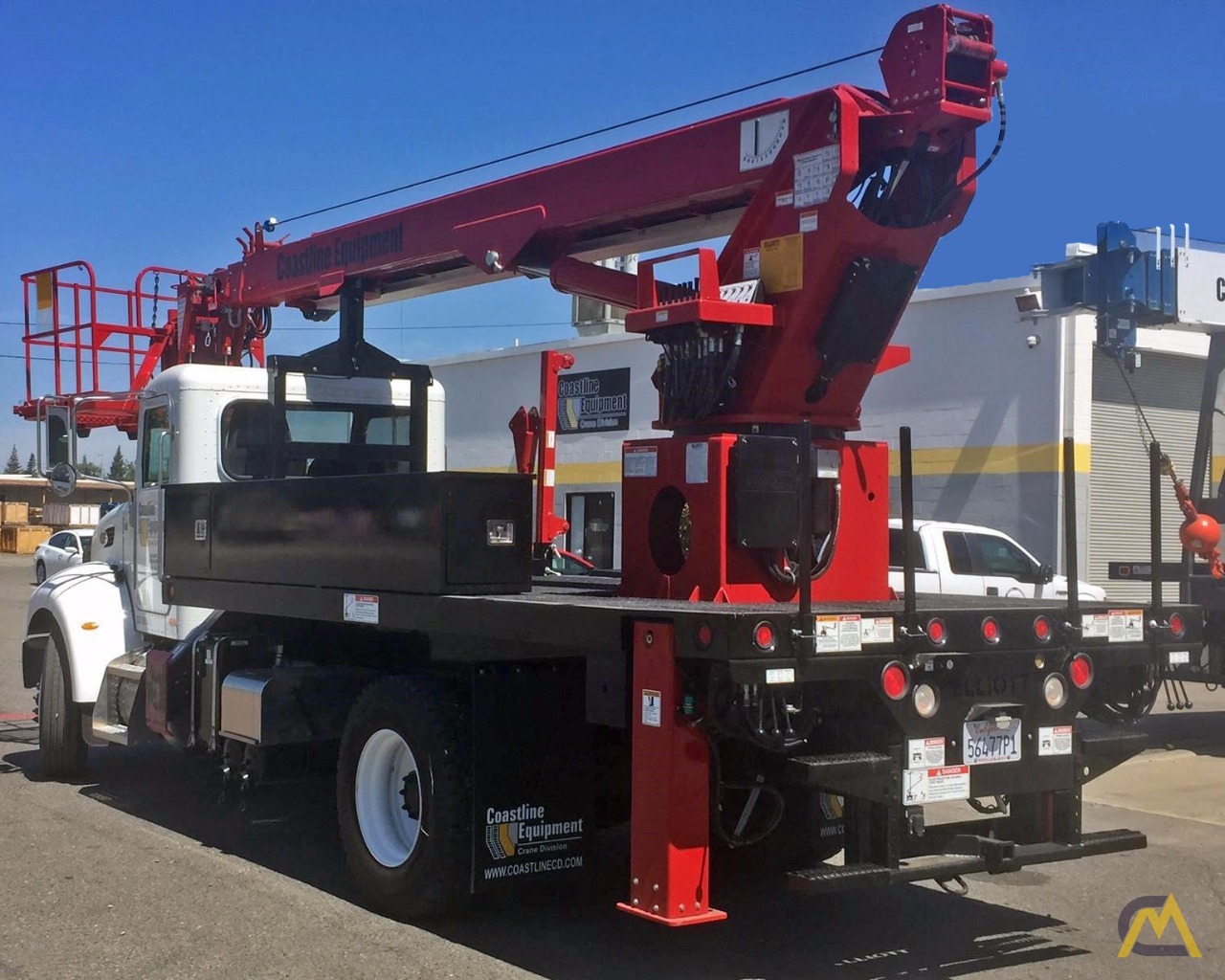

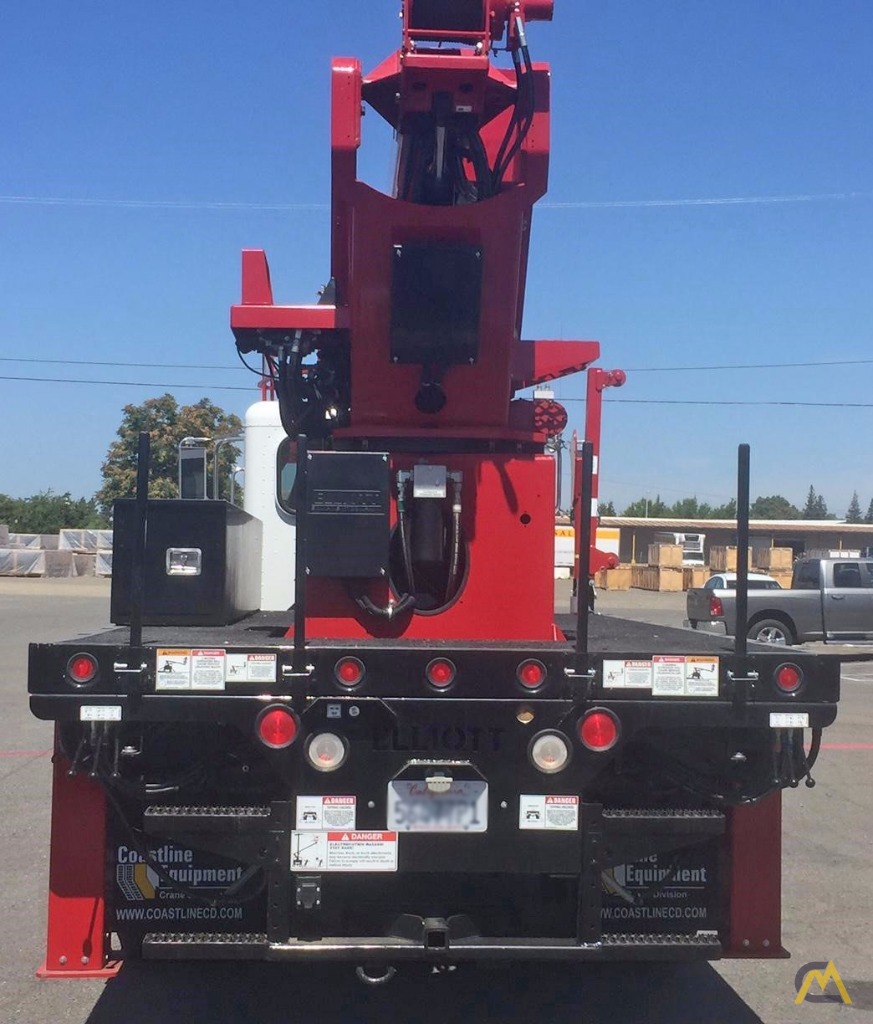

2014 ELLIOTT L60 HI REACH CRANE
One new Elliott Hi reach L60R MHA having a 62’ working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil and manual hydraulic controls mounted to turret. Electronic proportional three stick remote controls on platform. Base mounted “MH” type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab. Steel three section hydraulically telescoping boom with one double acting 6” lift cylinder plus a 3” piggy back extension cylinder. One exposed cable carriers to boom tip. Electronics self-leveling and rotating 30” x 54” EZR work platform with remote leveling from platform. Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/shutdown at upper and lower controls, 12 volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, and two body harness and lanyard. Safety triangle kit. Unit painted red, white or black. Installed on chassis, tested, checked and ready to operate. Unit certified to ANSI A92.2 for vehicle mounted elevating and rotating aerial devices. Platform capacity 500 lbs.
Included options:
16’ steel floor
Standard ICC rear bumper with steps and grab handles
Platform mounted jib with hydraulic winch drum in floor with 500lb capacity
110 volt line to platform
Sign forks on platform quanity of 2
40” x 60” EZR Platform ilo 30” x 54”
Hot shift PTO
48” x 20” x 18” steel underbody mounted tool box
Above body lamp bin 122”x20”x18” mounted on road side with 1 18” door at rear and 1 24” side door at front
Steel cable carrier cover
Chassis rating- sum of axle capacities
Paint Hi reach unit red, subframe painted black, O/R’s painted red
MOUNTED ON A NEW 2014 PETERBILT 337
280 HP Paccar PX-7 diesel engine (660 lb/ft), 202”WB, 132” C.A., 100” AF Allison 2500 RDS automatic transmission, 30,000 GVWR, 10,000 lb front axle, 20,000 lb rear axle 11R22.5 front and rear tires, hydraulic brakes, 50 gallon alum fuel tank (LH), AM/FM stereo radio & CD, cruise control, air conditioning, air ride driver seat, 2 person pass seat, color white.
