2013 MANITEX 26101C For Sale or Rent
Location: Sacramento, CA 95814, United StatesManitex Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION

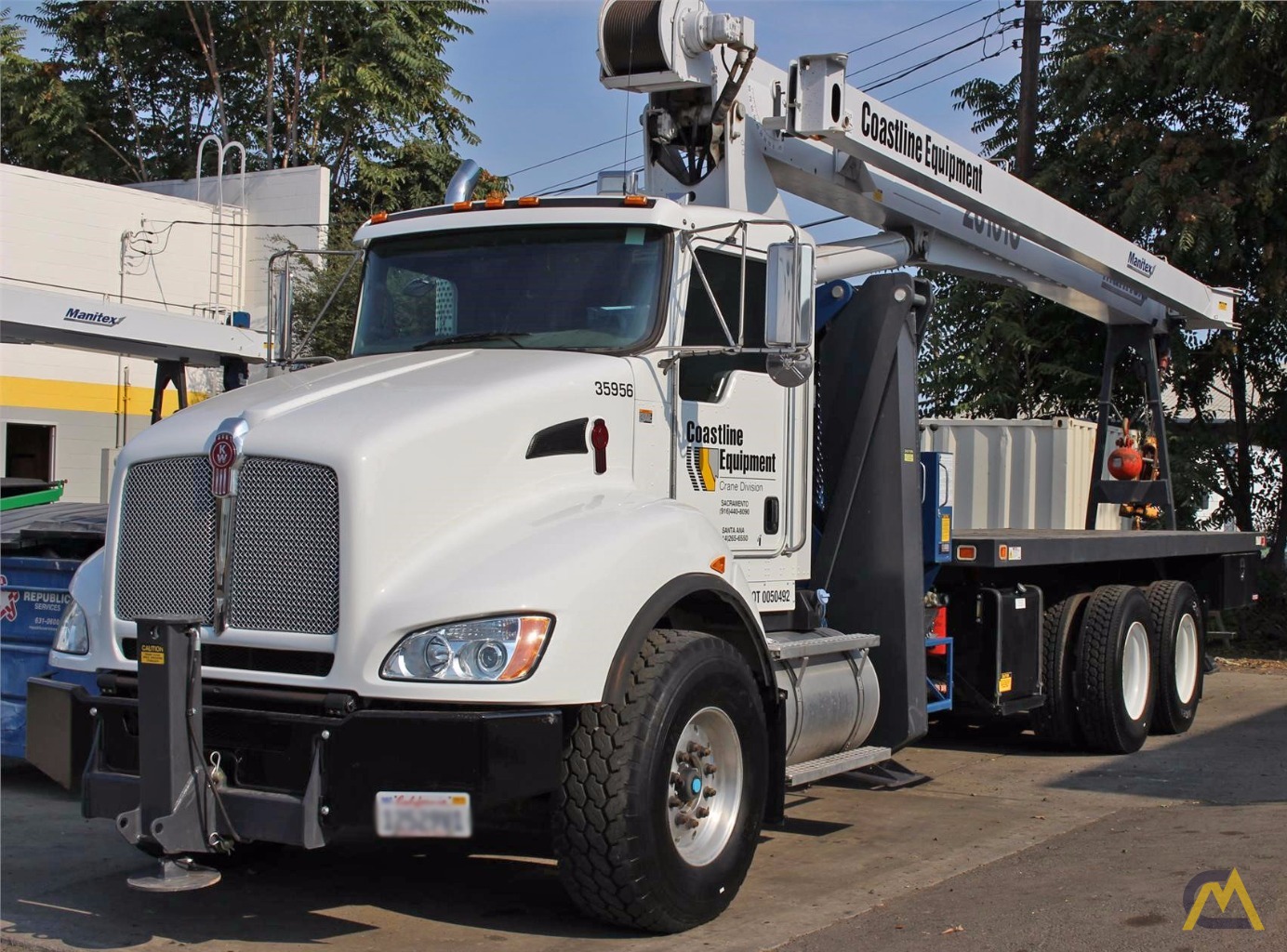

MANITEX 26101C TELESCOPIC CRANE
2 speed hoist with grooved drum, 5 ton hook and ball, 3-load sheave quick reeve boom head, 101’ four section telescopic boom radio anti-two block with lockout, boom hoist cylinder, system pressure gauge, 372 ° non-continuous rotation, removable boom rest, engine start/stop, operators service/parts manual, boom length and angle indicators, function overload shut off, mechanical throttle, bubble level, engine start/stop, 300' of 9.16" rotation resistant wire rope, 70 gallon reservoir with suction strainer and ball valve, pedestal, turret rotation bearing and swing system, dual operator control stations, electronic load moment indicator- audio/visual alert with shutoff, audible outrigger stabilizer motion alarm, A-frame front outriggers, A-frame rear stabilizers, 3 section hydraulic pump, subframe for 22' wood bed, signal horn, outrigger monitoring system for verification only.
Included Options:
• 1-piece 29’ Jib (101’) (RS/RC)
• Chassis Mounted Hydraulic Reservoir in lieu of standard
• Front Center stabilizer
• Control Valve for operation of single stabilizer
• 15-ton 1-Sheave quick reeve block for 2-3 part line
• Steel Tool Box (24” L x 18” W x 18” H) Flatbed Mounted
• Painted standard Manitex colors

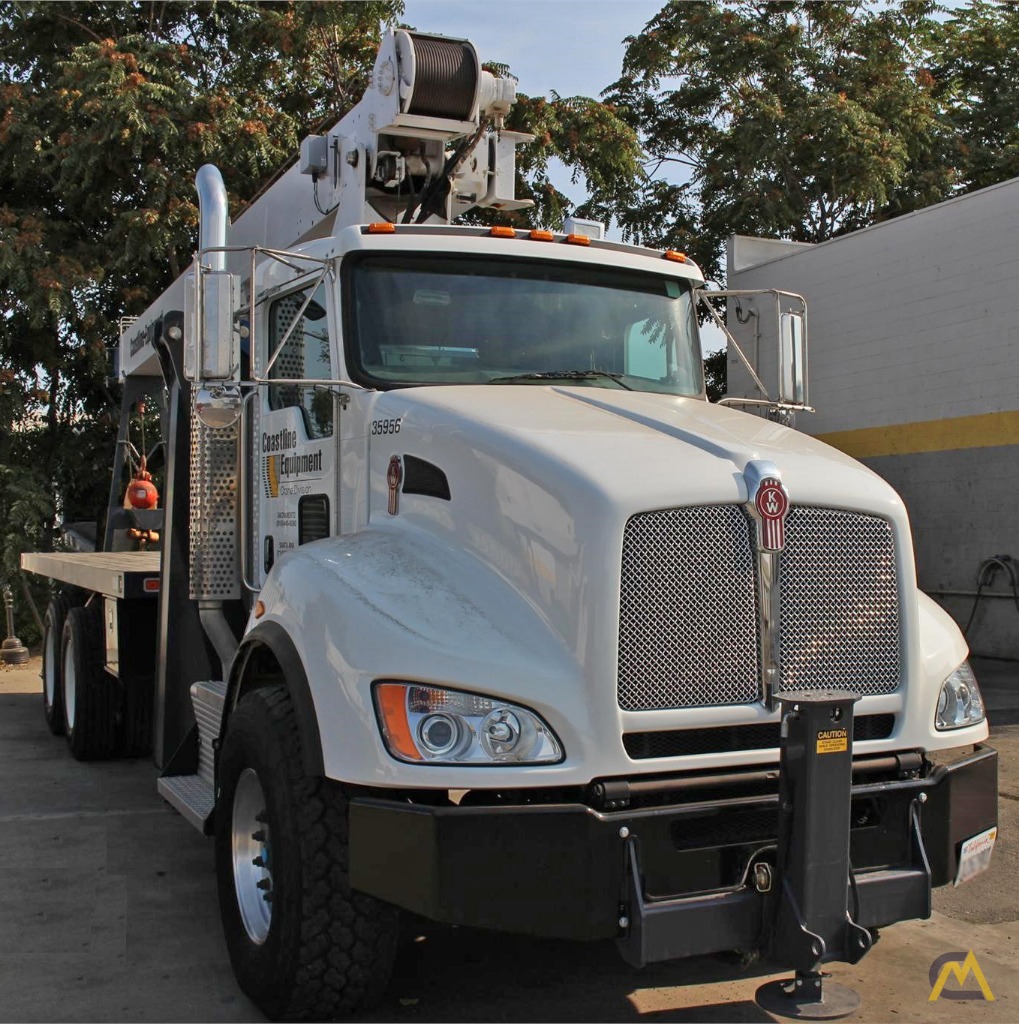

MOUNTED ON A 2013 KENWORTH T-440 CHASSIS
Mounted on a 2013 Kenworth T-440 tractor chassis with a Cummins ISL9 345HP diesel engine, 13 speed Fuller RTO transmission with oil cooler, Dana Spicer 20,000 lb. front suspension, Dual Dana Spicer 40,000 lb. Tandem Rear axles, Front set of Alcoa Polished Aluminum wheels, Rear Set of Accuride steel white e-coat wheels, Single Aluminum 90 gallon fuel tank, Sloped high visibility cab, Heater and air conditioner with defrosters, full instrumentation, Right electric window, interior color slate gray, Kenworth AM/FM radio with Weather band, single air horn mounted to of roof, Dual heated mirrors, exterior aerodynamic sunvisor, Halogen headlights, and the unit is painted Imron white.
Monthly crane bare rental available call for long term rates.
