1998 Link-Belt HTC-8660 60-Ton Hydraulic Truck Crane; CranesList ID: 753 For Sale
Location: Manitoba, Canada Get a Shipping Quote

























Status | For Sale |
---|---|
Year | 1998 |
Manufacturer | Link-Belt |
Model | HTC-8660 |
Condition | Used |
Stock Unit # | 753 |
Ton (USt) | 60.00 |
Lifting Capacity | 60 |
Main Boom Length | 35.5' - 110' (10.8 - 33.5 m) |
Jib Extension Length | 34' - 56' (10.4 - 17.1 m) |
Max. Tip Height | 172' (52.4 m) |
Max. Hook Radius | 130' (40 m) |
Maximum Counterweight | 12,000 lbs. (5,443 kg) |
Base Weight (GVW) | 82,052 lbs. (37,218 kg) |
Transmission Type | Manual |
Engine | Detroit 60 Series Diesel |
Category | Truck Cranes |
Sub Category | Telescopic Boom |
Show More | |
Hide |
DESCRIPTION
1998 Link-Belt HTC8660, 60 Ton, Hydraulic Truck Crane; CranesList ID: 753,
- 35.5'-110' Four Section Full Power Boom,
- 34'- 56' Bi-fold Lattice Fly/Jib Off-setable at 1°, 15° and 30°,
- Main and Auxiliary Winches with 3/4" New Wire Rope and new Anti-Two Block Reel System,
- Mechanical Boom Angle Indicator, Drum Rotation Indicator, Two Speed, Microguard Rated Capacity Limiter (RCL) 434 Graphic audio–visual warning system built in to dash with anti–two block and function limiters,
- Hook Ball,
- 12,000# Counterweights with hydraulic removal system,
- Heaters Up and Down,
- Hydraulic controls (joystick type) for: Swing, Main and Auxiliary winch and Boom hoist,
- Foot controls for: Boom telescope, Engine throttle, Swing brake,

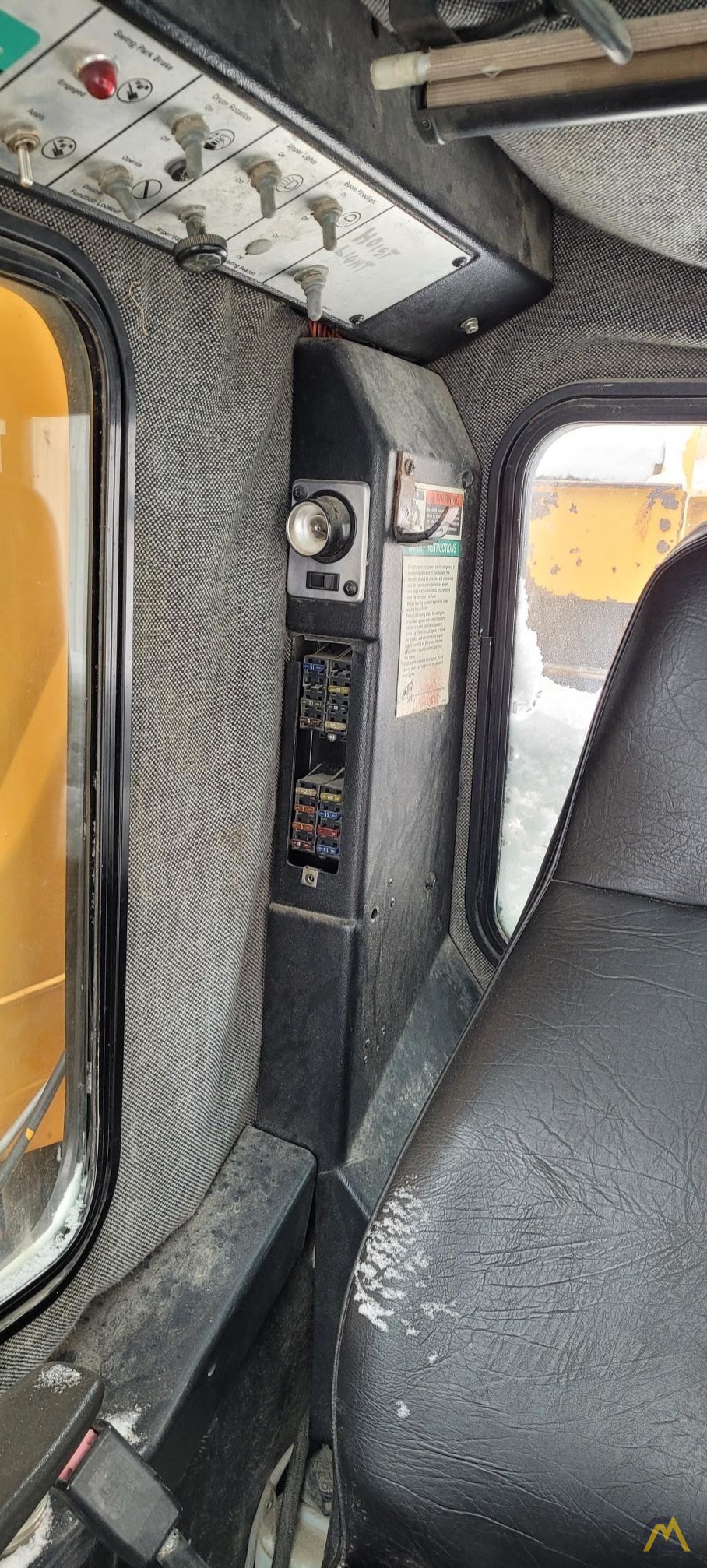

- Sliding rear and right side windows and swing–up roof window with Top hatch window wiper for maximum visibility and ventilation,
- 8' 6" Link-Belt 8 x 4 drive carrier,
- Detroit 60 Series, 12.7 L, 350HP, Diesel Engine,
- Eaton RTO–14909ALL; 11 speeds forward, 3 reverse Transmission,
- Front Tires: 445/65 R 22.5,
- Rear Tires: 12R22.5,
- Four hydraulic, telescoping beam and jack outriggers with Hand–held controls and sight level bubble located in operators cab and on carrier deck,
- Aluminum Outrigger Pads,
- Confined Area Lifting Capacities (CALC) System. The crane is operational in one of the three outriggers positions and operational in confined areas in two positions intermediate and full retraction,
- 5th Front Outrigger,
- Aluminum Diamond Plate Decking,
- Aluminum fenders,
- Rigging boxes,
- 2 Axle Boom Dolly,
- Certified.
http://www.CranesList.com,
LOCATED IN MANITOBA CANADA!
$94,900 USD
Was
$99,900 USD
