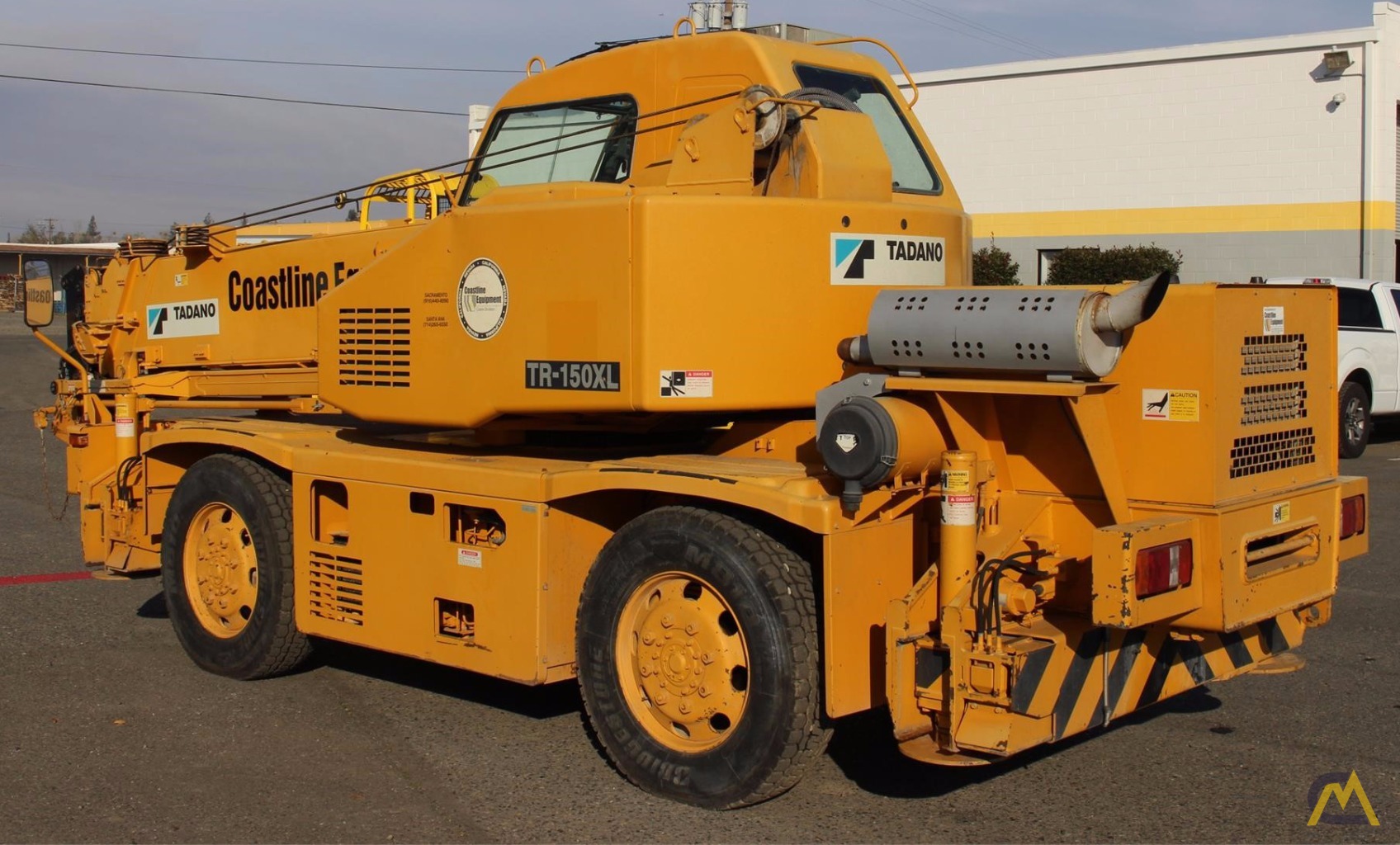

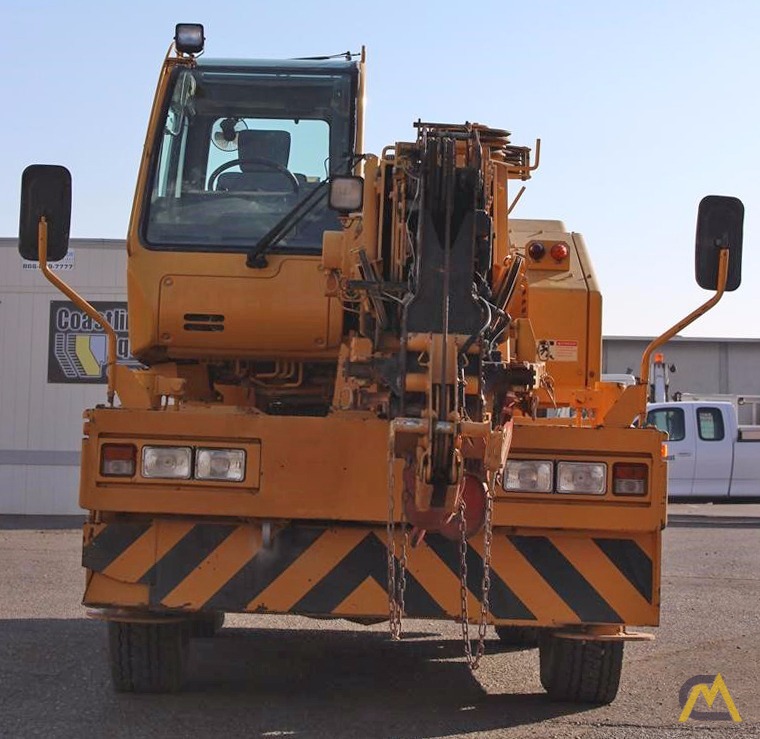

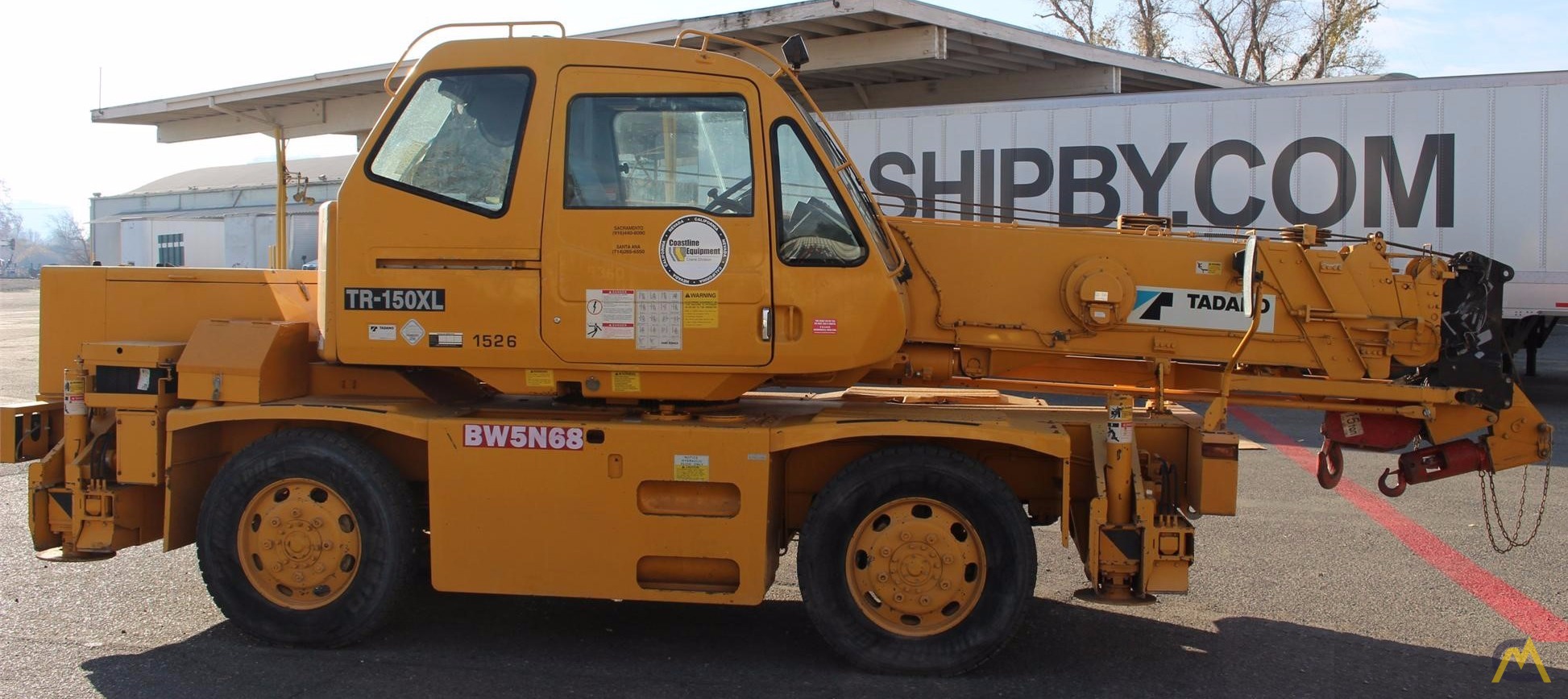

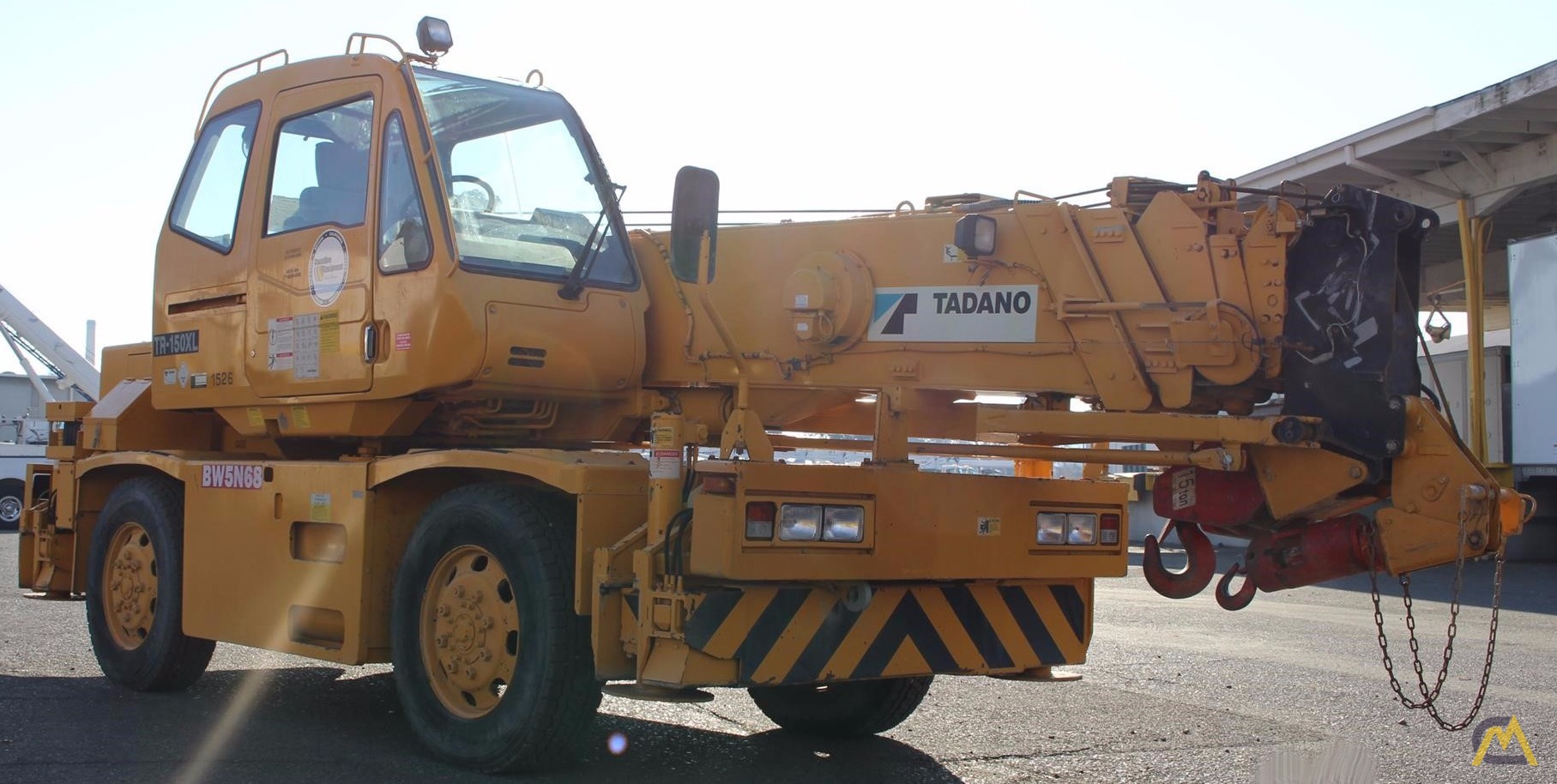

15t Tadano TR-150XL-4 Rough Terrain Crane For Sale or Rent
Location: Sacramento, CA 95814, United StatesThis equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION
Engine:
Make Cummins, Model QSB3.9-30TAA, Gross Power 135 hp 100.7 kw, Power Measured @ 2300 rpm Max Torque 354 lb. ft. 480 Nm, Torque Measured @ 1500 rpm Displacement 238 cu in 3.9 L, Aspiration turbocharged + after cooled
Operational:
Operating Weight 27208 lb. 12341.3 kg, Fuel Capacity 49.9 gal 189 L, Hydraulic System Fluid Capacity 45.4 gal 172 L, Engine Oil Capacity 2.5 gal 9.5 L, Cooling System Fluid Capacity 2.1 gal 7.9 L, Operating Voltage 24 V, Tire Size 275/80r22.5,
Transmission:
Type electronically controlled full automatic transmission, Number of Forward Gears 6, Number of Reverse Gears 2, Max Speed - Forward 30.4 mph 49 km/h
Boom:
Number of Sections 6, Min Height @ Max Raise Angle 17.4 ft. in 5.3 m, Max Height @ Max Raise Angle - no jib 78 ft. in 23.8 m, Max Elevating Angle 82 degrees, Max Lift Capacity 30000 lb. 13607.8 kg, Swing Speed 2.4 rpm, Min Operating Radius 4 ft. in 1.2 m, Max Operating Radius 70 ft. in 21.3 m
Dimensions:
Transport Length 24.4 ft. in 7430 mm, Transport Width 6.6 ft. in 2000 mm, Transport Height 9.2 ft. in 2800 mm, Ground Clearance 0.84 ft. in 257 mm, Wheelbase 9 ft. in 2750 mm, Width w/ Outriggers Extended 15.4 ft. in 4700 mm, Carrier/Base Length 18.8 ft. in 5740 mm, Upper Structure Tail Swing Radius 5.2 ft. in 1600 mm
Monthly crane bare rental available call for long term rates.
