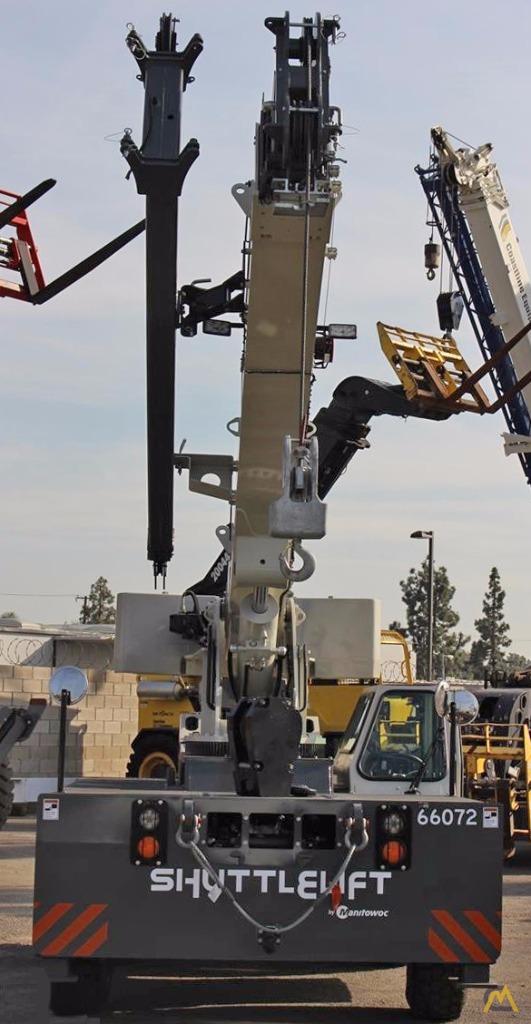

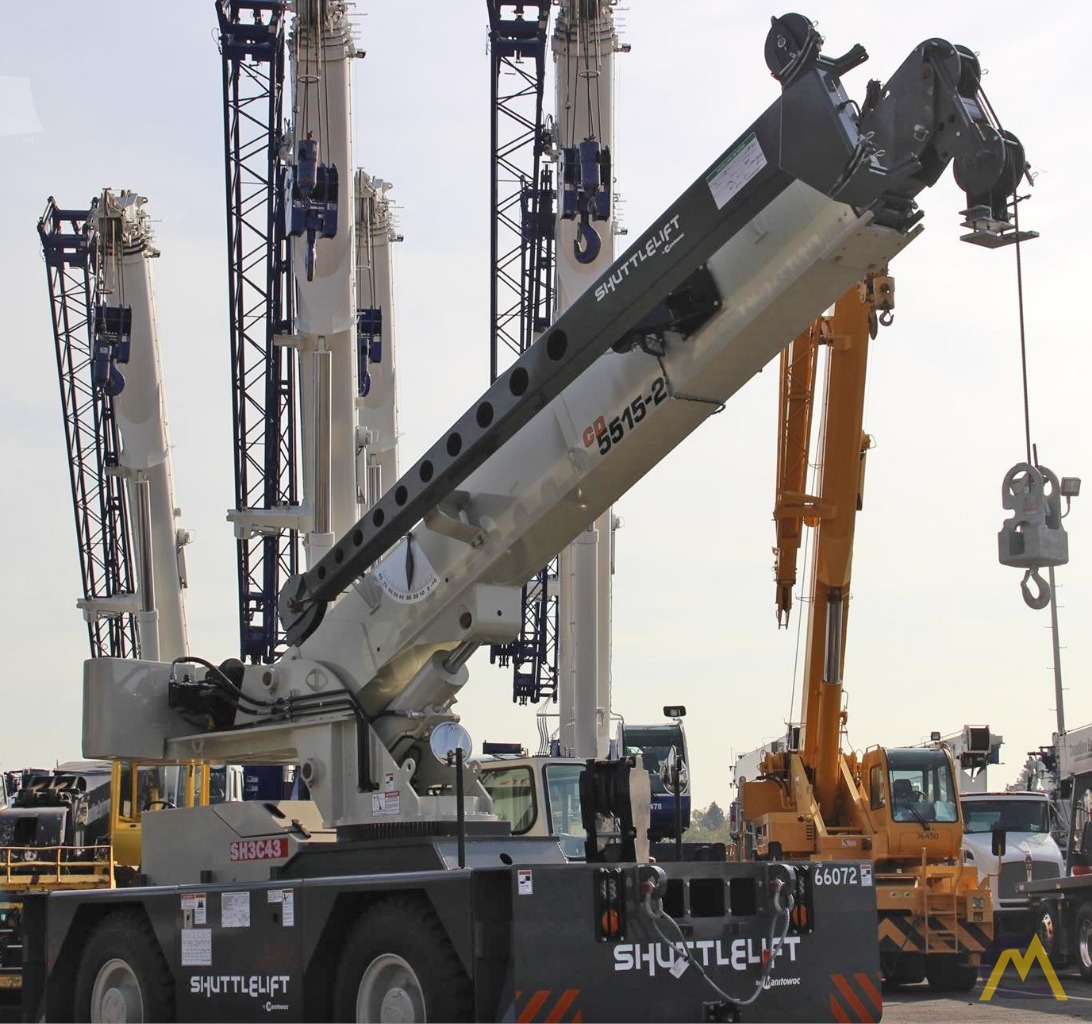

15t Shuttlelift CD5515-2 Carry Deck Crane For Sale or Rent
Location: Santa Ana, CA 92703, United StatesShuttlelift Authorized Dealer
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION
Standard features:
- Boom: 41 ft. full-power boom with integral holding valve on telescope cylinder
- Boom Elevation: Single double acting hydraulic cylinder, 0° to 69° with integral holding valve and mechanical angle indicator.
- Load Moment and Anti-Two block system: Hardwired Wylie i4300 rated capacity indicating system with audio-visual (buzzer/light) warning system with function cut out. Black & white graphical display of boom length, load radius, boom angel, rated load and calculated load. Hardwired A2B system is a low profile style w/ audio warning and auto control lock out.
- Operators station: chassis mounted cab shell with roof safety glass, all weather suspension seat w/ seat-belt, dash mounted control levers, gauges for engine functions, tilt steering wheel, electric horn, fire extinguisher, sight level bubble and seat belt.
- Swing: 360° continuous rotation, worm and gear drive on ball bearing swing circle.
- Counterweight: One piece cast type bolted to the turntable.
- Hydraulic system: load sensing variable displacement axial piston pump system, 37 gal steel reservoir with external sight level indicator.
- Hoist: 2 speed planetary drive main hoist. Equal speed power up and down with automatic multi-disc brake. Includes 3rd wrap indication w/ function cut, a drum rotation indicator in the hoist joystick control, and hoist direction indicator light on the dashboard.
- Wire rope: 9/16 in. diameter 6x19 construction XXIPS wire rope.
- Hook block: 20 ton two sheave, “quick reeve” style hook block
- Outriggers: Hydraulic beam and jack style on all four corners with integral check valves and integral steel outrigger pads. Independent controlled extension of outriggers, outrigger motion alarm.
- Engine: Cummins QSB3.3L; EPA, CARB (Tier 4) off highway certified, 4 cylinder turbo charged water cooled diesel; 100 hp @ 2600 rpm, includes; hour meter, diesel cold start aid, 120V engine block heater, and air filter service indicator.
- Axles: Front: drive/steer type with limited slip differential. Rear: wide track steer/non drive (4x2 drive); rear axle oscillates 1.5°. Std 2 wheel and 4 wheel coordinated and crab steering with electronic self-alignment.
- Transmission: Powershift; 4 speeds forward and 4 reverse.
- Brakes: 4 wheel full hydraulic, internal multi wet disc service brake system with mechanically applied disc type parking brake on front axle input shaft.
- Tires: 12.00 R20 tires
- Lights: Full lighting package includes front and rear chassis mounted work light, rear tail lights, turn indicators, brake and hazard.
- Miscellaneous standard Equipment: nonskid deck surface, backup alarm, Front and rear tie down lugs, hook block tie down.
Included Options:
- Front & rear pintle hitch, dual rearview mirrors, headlight & taillight grilles
- Amber Strobe light and boom mounted work lights
- Outrigger position monitoring system
- 50 ft. 4-section full power boom with 3 position pivoting boom nose & 320 ft. wire rope
- 15 ft. Fixed Swing Away Boom Ext w/ down-haul ball
- Enclosed Compartment with front, side and rear window glass, windshield wiper & washer, split type door with swing-out & sliding window, heater & defroster, suspension seat w/ seat belt, and cab dome light
